Swivel and Pull Clamps

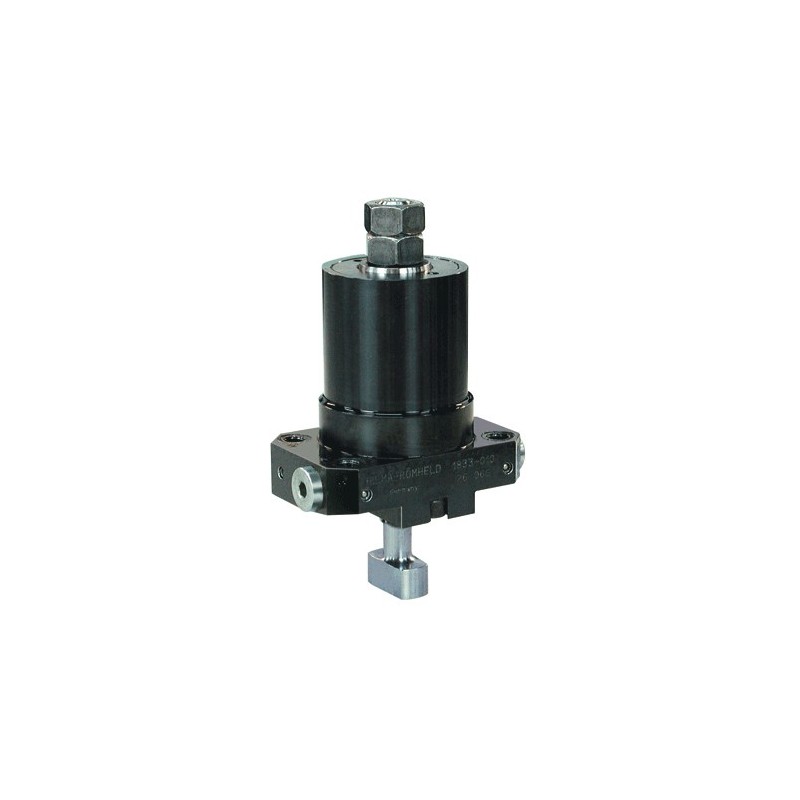

HILMA WZ 2.1833 Swivel and Pull Clamps for presses and high-speed punching presses when the available space is limited
- Max. clamping force: 30.4 kN
- Clamping stroke: 30 mm
- Swing angle: 90°
- Max. flow rate 15 cm³/s
Description
Downloads
Swivel and Pull Clamps - HILMA WZ 2.1833
- Max. clamping force: 30.4 kN
- Clamping stroke: 30 mm
- Swing angle: 90°
- Max. flow rate 15 cm³/s
Special features:
- Very suitable for retrofit
- Ideal power transmission
- Compact design
- Optimum utilisation of bed and slide surface as there are no parts protruding when inserting the die
- Die clamping even in barely accessible positions
Applications:
- For presses and high-speed punching presses
- When the available space is limited
Design:

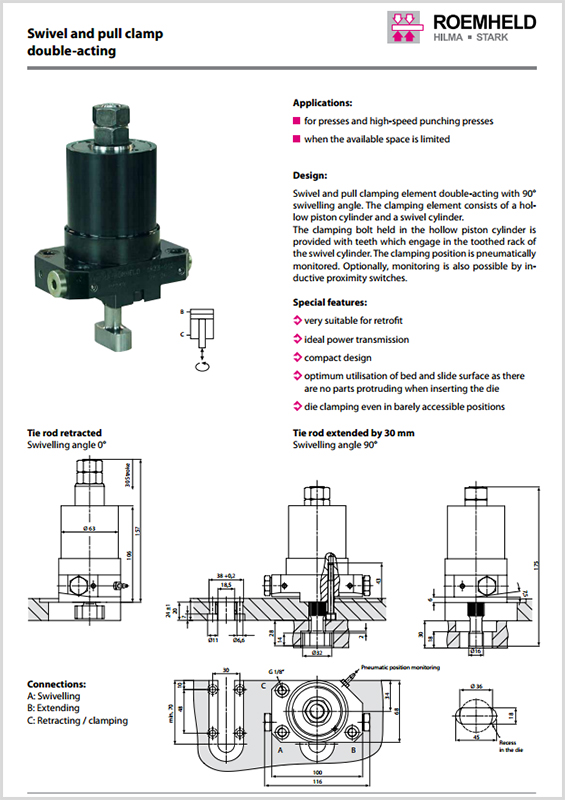

Swivel and pull clamping element double-acting with 90° swivelling angle. The clamping element consists of a hollow piston cylinder and a swivel cylinder. The clamping bolt held in the hollow piston cylinder is provided with teeth which engage in the toothed rack of the swivel cylinder. The clamping position is pneumatically monitored. Optionally, monitoring is also possible by inductive proximity switches.
