Roemheld Threaded-body cylinders B1.4301

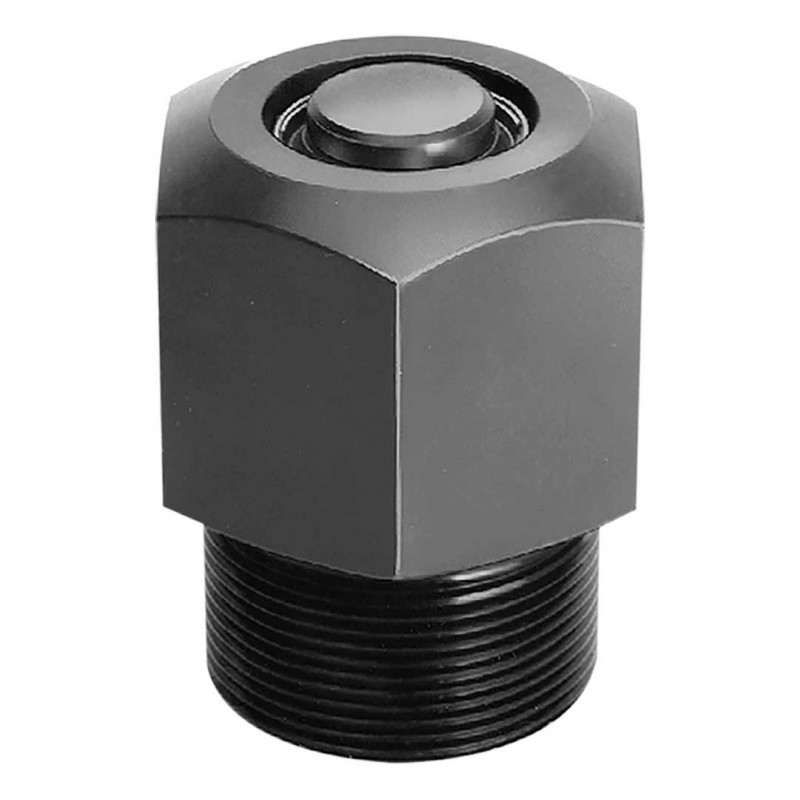

Threaded Body Cylinders - Short Version

ROEMHELD B1.4301 Threaded-Body Cylinders

  • Single acting, spring return, with wiper, short version
  • Operating Pressure 500 bar maximum
  • 5 sizes available
  • Strokes from 4 to 16 mm
  • Clamping forces 2.5 to 40 kN at 500 bar

These hydraulic cylinders are threaded directly into tapped holes of a clamping fixture. These are a compact solution and can be used to great advantage in fixtures where space is at a premium. Hydraulic fluid is supplied through passageways drilled into the fixture body, this reducing the use of hydraulic pipework, fittings and hoses. The built-in spring returns the piston when hydraulic pressure is released.

Print page

Products
Downloads
Description
Part Number Material Number Stroke Clamping Force at 100 bar (kN) Clamping Force at 500 bar (kN) Mounting Cavity (mm) Price Add to Parts List
1428-001 1428-001 4mm 0.5 2.5 M16 x 1.5 £65.16
£78.19 Inc. VAT
1430-101 1430-101 4mm 1.1 5.6 M20 x 1.5 £66.62
£79.94 Inc. VAT
1431-001 1431-001 6mm 2.0 10.0 M24 x 1.5 £73.39
£88.06 Inc. VAT
1433-001 1433-001 12mm 4.9 24.5 M36 x 1.5 £92.10
£110.52 Inc. VAT
1434-001 1434-001 16mm 8 40 M42 x 1.5 £107.76
£129.31 Inc. VAT

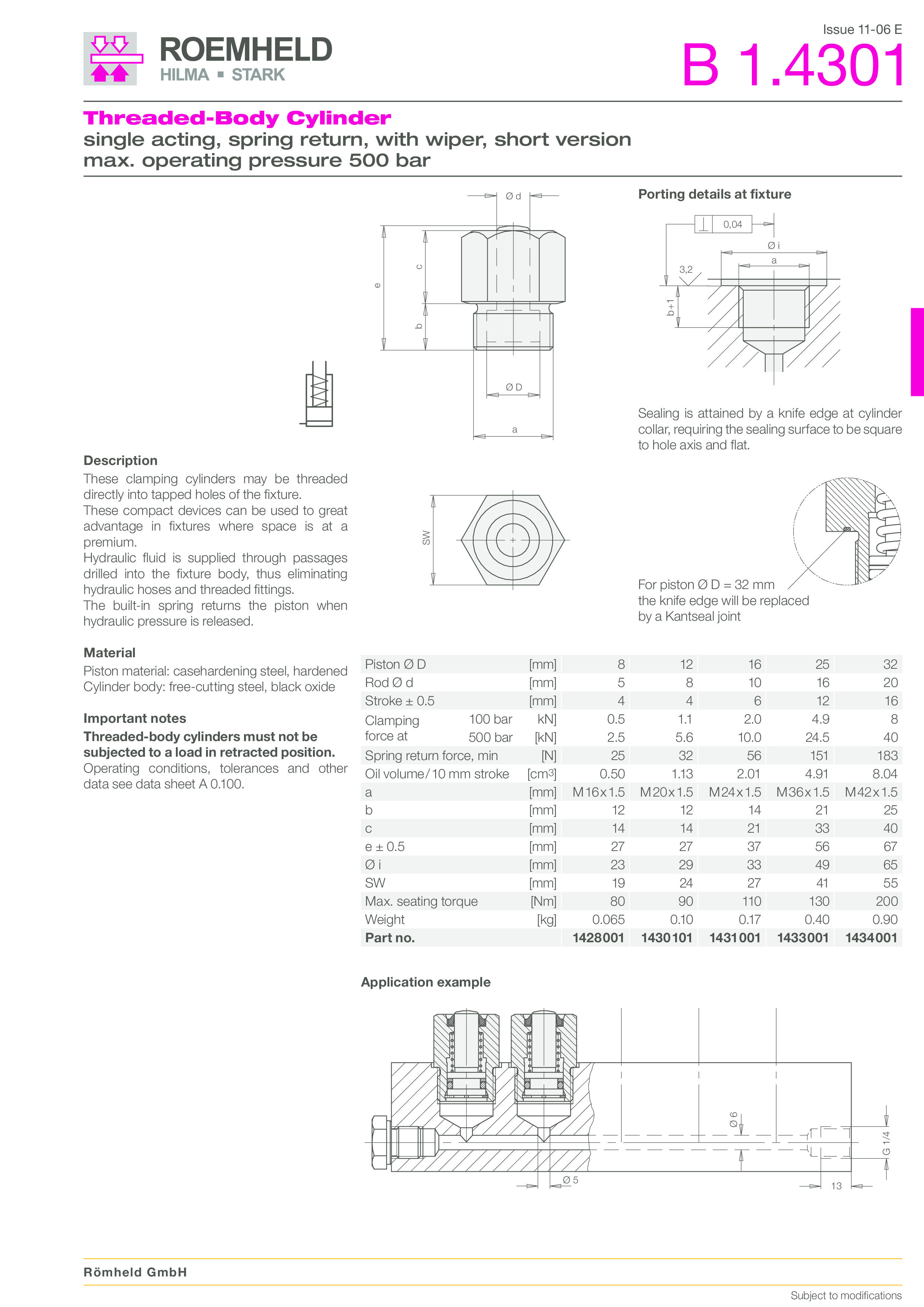

B14301

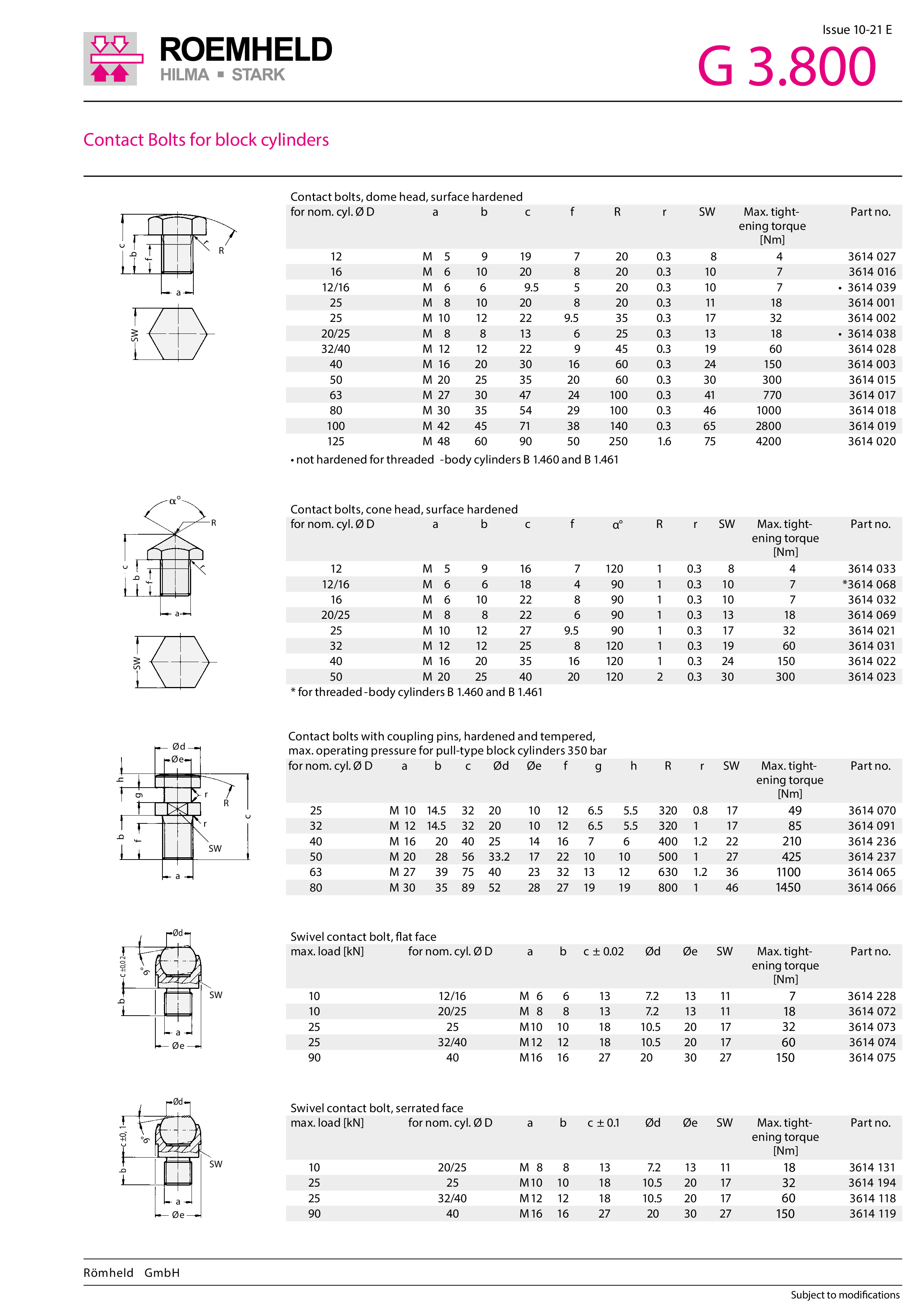

G3800
A0.100

Threaded Body Cylinder, Short Version - ROEMHELD B1.4301

  • Single acting, spring return, with wiper, short version
  • Operating Pressure 500 bar maximum
  • 5 sizes available
  • Strokes from 4 to 16 mm
  • Clamping forces 2.5 to 40 kN at 500 bar

Material:

  • Piston material: casehardening steel, hardened
  • Cylinder body: free-cutting steel, black oxide

Description:

These hydraulic cylinders are threaded directly into tapped holes of a clamping fixture. These are a compact solution and can be used to great advantage in fixtures where space is at a premium. Hydraulic fluid is supplied through passageways drilled into the fixture body, this reducing the use of hydraulic pipework, fittings and hoses. The built-in spring returns the piston when hydraulic pressure is released.

Important notes:

  • Threaded-body cylinders must not be subjected to a load in retracted position

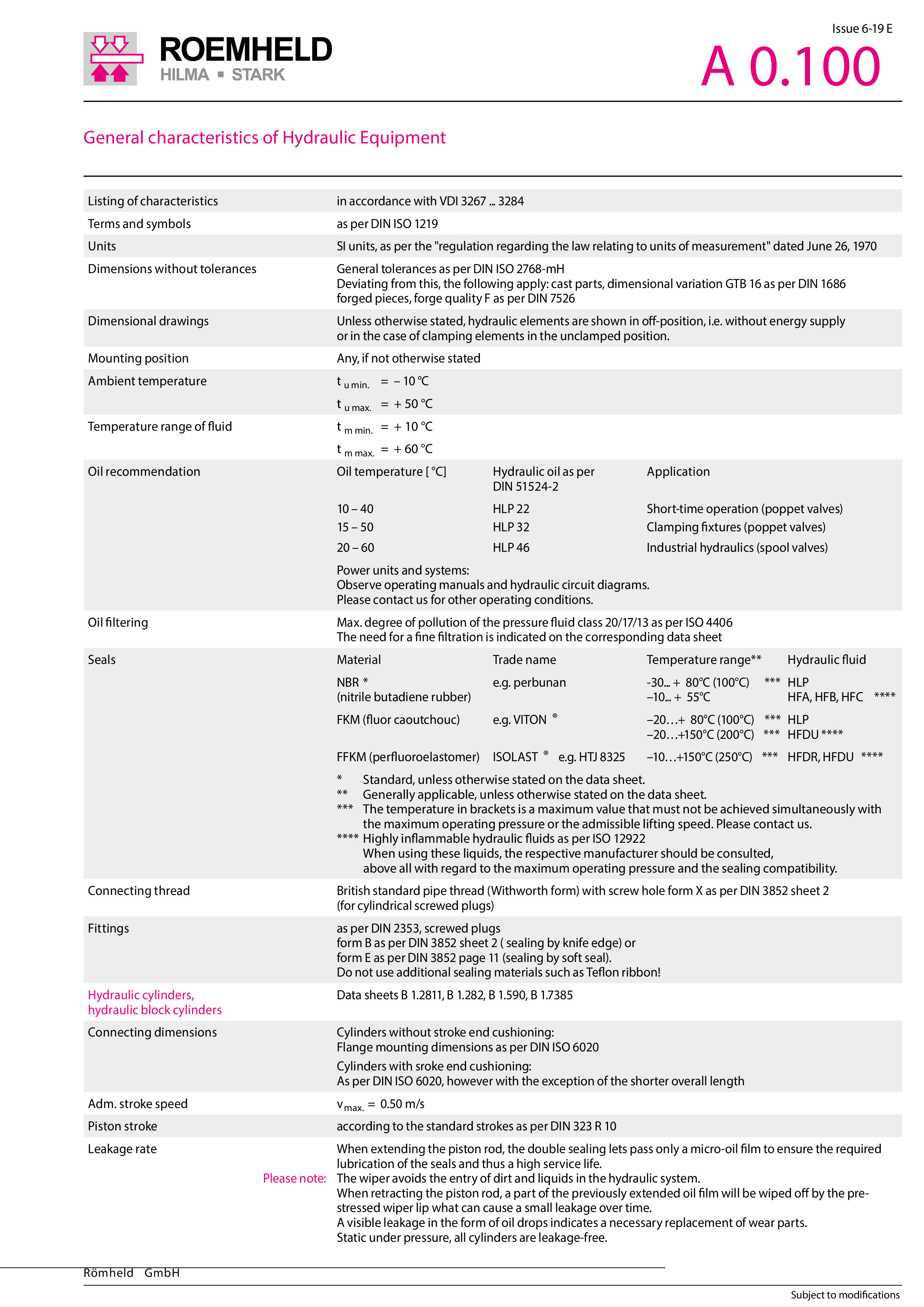

  • For operating conditions, tolerances and other data see datasheet A0.100
