Universal Clamping Cylinder with Spring Return

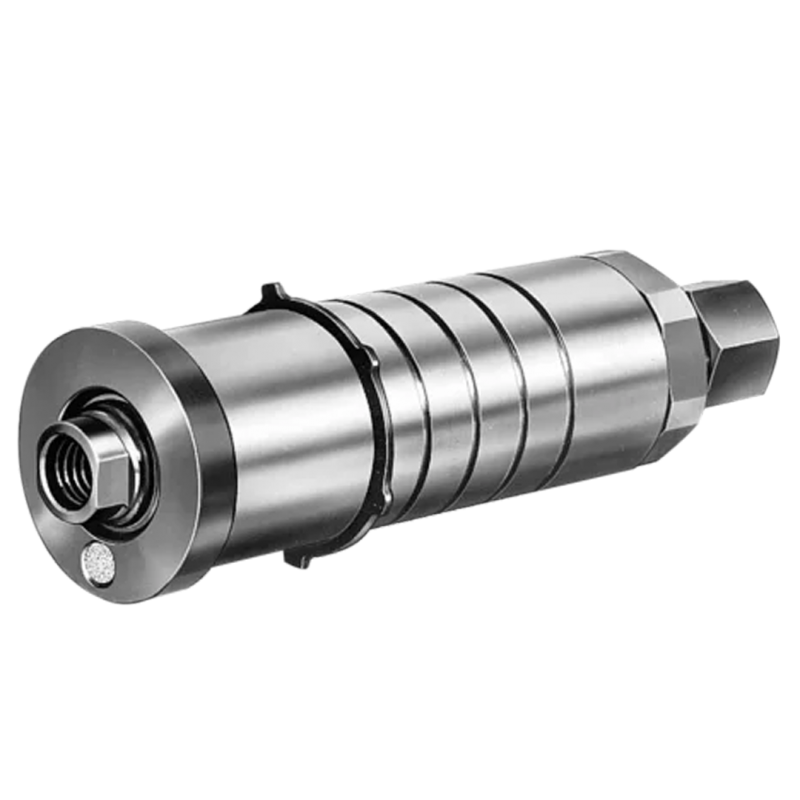

ROEMHELD B1.310 Universal Clamping Cylinder: single acting with spring return
OBSOLETE ITEM - CONTACT HYQUIP
- Operating pressure 200 / 500 bar maximum
- Piston diameter ranging from 16 to 63 mm
- Rod diameter ranging from 10 to 40 mm
- Stroke ranging from 8 to 100 mm
- Maximum push force 10 to 156 kN
These universal clamping cylinders are particularly suited for clamping fixtures designed to hold various sizes of workpieces (part families). They can be mounted directly into the fixture wall or installed onto horizontal or vertical mounting brackets which are available as accessories.
Universal Clamping Cylinder with Spring Return - ROEMHELD B1.310
- Max. operating pressure 200 / 500 bar
- Piston diameter: 16 - 63 mm
- Rod diameter: 10 - 40 mm
- Stroke: 8 - 100 mm
- Max. push force: 10 - 156 kN

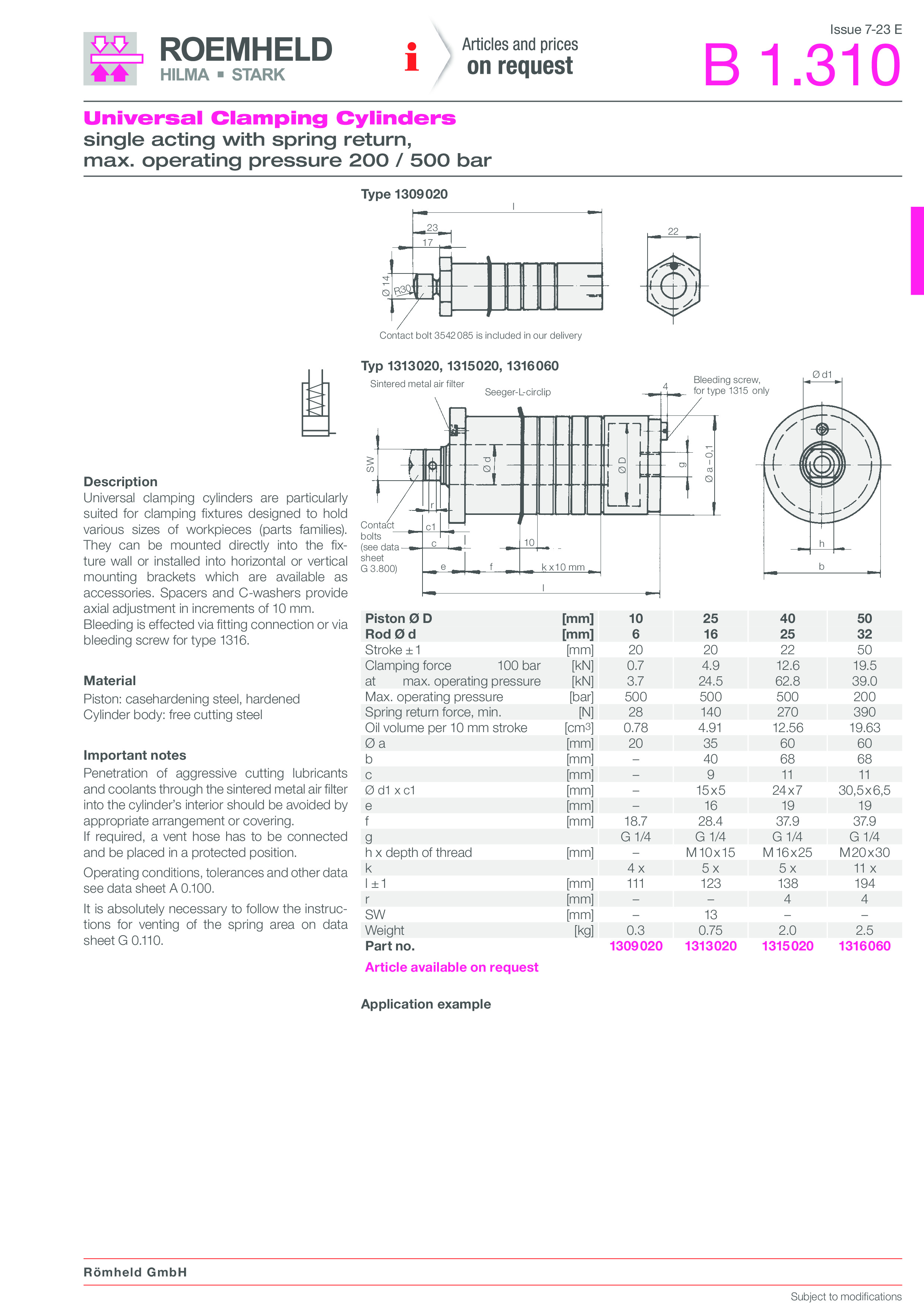

Description:
Universal clamping cylinders are particularly suited for clamping fixtures designed to hold various sizes of workpieces (parts families). They can be mounted directly into the fixture wall or installed into horizontal or vertical mounting brackets which are available as accessories. Spacers and C-washers provide axial adjustment in increments of 10 mm. Bleeding of cylinders by opening the fitting connection, for type 1316- use bleeding screw provided.
Important Notes:
Penetration of aggressive cutting lubricants and coolants through the sintered metal air filter into the cylinder’s interior should be avoided by appropriate arrangement or covering. If required, a vent hose has to be connected and be placed in a protected position. Operating conditions, tolerances and other data see data sheet A 0.100. It is absolutely necessary to follow the instructions for venting of the spring area on datasheet G 0.110.
