DF Double Clamping System
Max. Clamping Force:
- DF 100 M: 25 kN
- DF 125 M: 40 kN
- DF 160 M: 50 kN
- DF 100 H: 25 kN at 350 bar
- DF 125 H: 40 kN at 350 bar
- DF 160 H: 63 kN at 350 bar
DF Double Clamping System

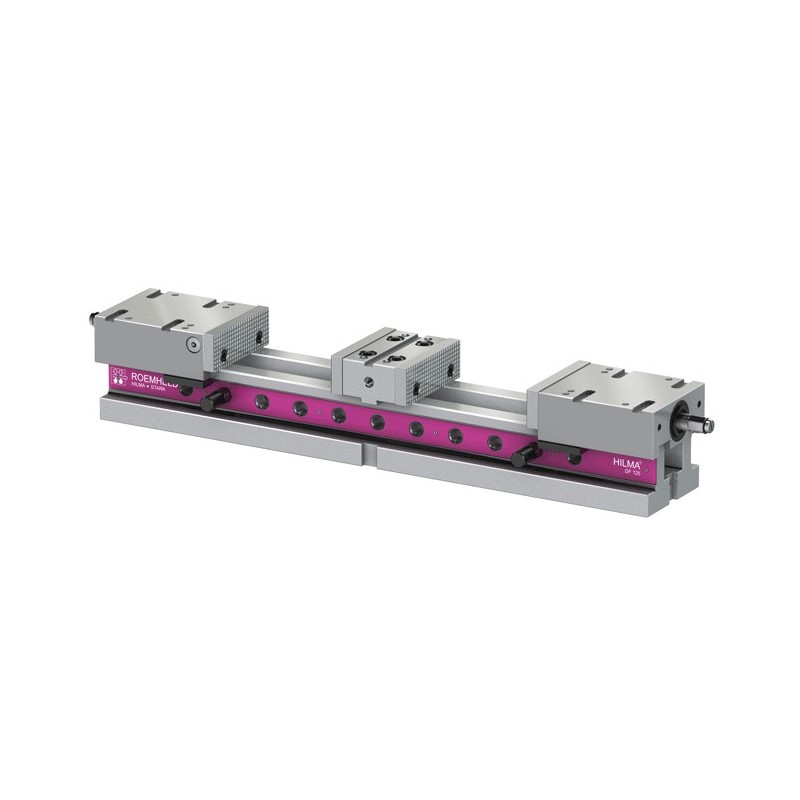

ROEMHELD DF Flexible Double Clamping systems allow the efficient double machining of workpieces with the same or different dimensions. Both clamping locations work independently of each other. Clamping of large workpieces that require several clamping locations can be realised economically and user-friendly with series arrangement.
Mechanical-hydraulic design for manual clamping / unclamping or hydraulic design with individual control variants and separate pressure transducer. (Individual control variants in combination with hydraulic power unit) The machine-specific design (planned variants) guarantees the optimum utilization of the existing workspace. The central jaw for large jaw openings can be displaced to the exterior (planned variant). Adaptation to the clamping task with a variety of standard and special jaws.
Max. Clamping Force:
- DF 100 M: 25 kN
- DF 125 M: 40 kN
- DF 160 M: 50 kN
- DF 100 H: 25 kN at 350 bar
- DF 125 H: 40 kN at 350 bar
- DF 160 H: 63 kN at 350 bar
