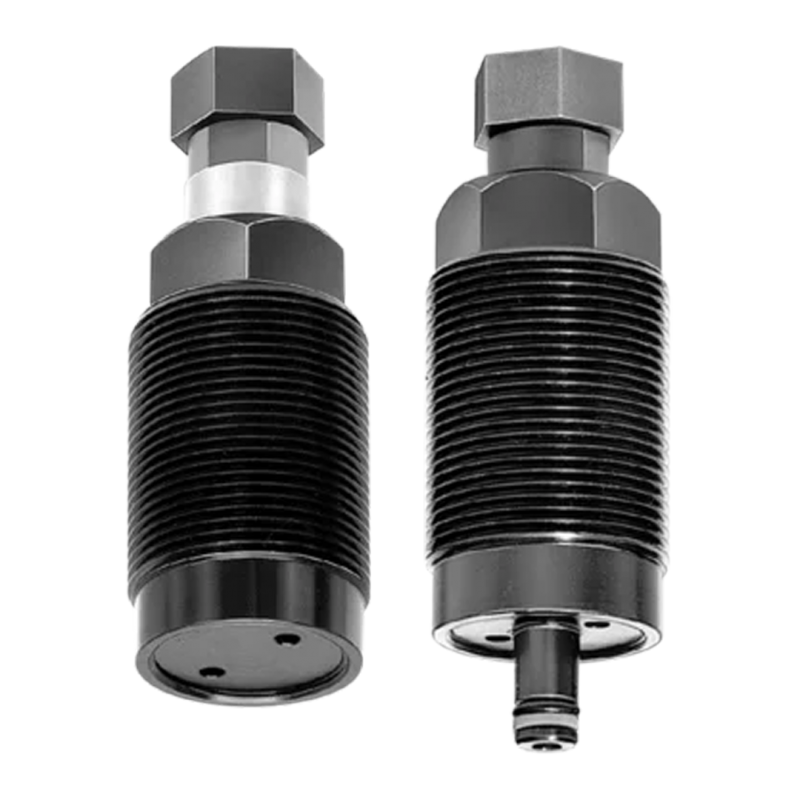

Threaded Body Work Supports M30 x 1.5
ROEMHELD B1.940 Single Acting Threaded Body Work Supports
- Maximum operating pressure 500 bar
- M30 external thread
- Maximum load force: 6.5 - 9.5 kN
- Plunger diameter: 16mm
- Plunger stroke: 8 - 15mm
- Maximum flow rate: 25 cm³/s
- Elastic deformation: 4 µm/kN
Hydraulic work supports are used to provide a self-adjusting rest for the workpiece during the machining operations. They compensate the workpiece surface irregularities, also deflection and vibration under machining loads. Two sizes are available. The threaded-body design of the elements allows direct installation in clamping fixtures, in horizontal or vertical mounting position, and thereby a space-saving arrangement.
| Part Number | Material Number | Stroke | Type | Length | Plunger Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| 1940-010 | 8mm | Contact by Spring Force | 90.5mm | 16mm | £256.12 £307.35 Inc. VAT |
|
|
| 1941-010 | 8mm | Contact by Air Pressure | 94mm | 16mm | £358.30 £429.97 Inc. VAT |
|
|
| 1942-010 | 8mm | Contact by Oil Pressure | 80.5mm | 16mm | £261.43 £313.72 Inc. VAT |
|
|
| 1941-000 | 8mm | Contact by Air Pressure | 84mm | 16mm | £193.75 £232.50 Inc. VAT |
|
|
| 1942-000 | 8mm | Contact by Oil Pressure | 80.5mm | 16mm | £240.20 £288.24 Inc. VAT |
|
|
| 1940-000 | 8mm | Contact by Spring Force | 80.5mm | 16mm | £179.15 £214.98 Inc. VAT |
|
|
| 1942-015 | 10mm | Contact by Oil Pressure | 80.5mm | 16mm | £464.47 £557.36 Inc. VAT |
|
|
| 1942-005 | 10mm | Contact by Oil Pressure | 80.5mm | 16mm | £386.17 £463.41 Inc. VAT |
|
Threaded Body Work Supports M30 x 1.5 - ROEMHELD B1.940
- Max. operating pressure 500 bar
- External thread: M30
- Max. load force: 6.5 - 9.5 kN
- Plunger diameter: 16mm
- Plunger stroke: 8 - 15mm
- Max. flow rate: 25 cm³/s
- Elastic deformation: 4 µm/kN
Application:
Hydraulic work supports are used to provide a self-adjusting rest for the workpiece during the machining operations. They compensate the workpiece surface irregularities, also deflection and vibration under machining loads. Two sizes are available. The threaded-body design of the elements allows direct installation in clamping fixtures, in horizontal or vertical mounting position, and thereby a space-saving arrangement. Hydraulic oil is fed through drilled channels in the fixture body. Hydraulic locking is made together with hydraulic clamping of the workpiece, or independently.
There are three variations of plunger actuation:
- Spring advanced; plunger extended in off-position
- Air pressure advanced; plunger retracted in off-position. The pneumatically-actuated plunger allows precise setting of the plunger contact force by means of a pressure reducing valve
- Hydraulic pressure and spring advanced; plunger retracted in off-position It moves forward with a light spring force against the workpiece, when hydraulic pressure is applied
