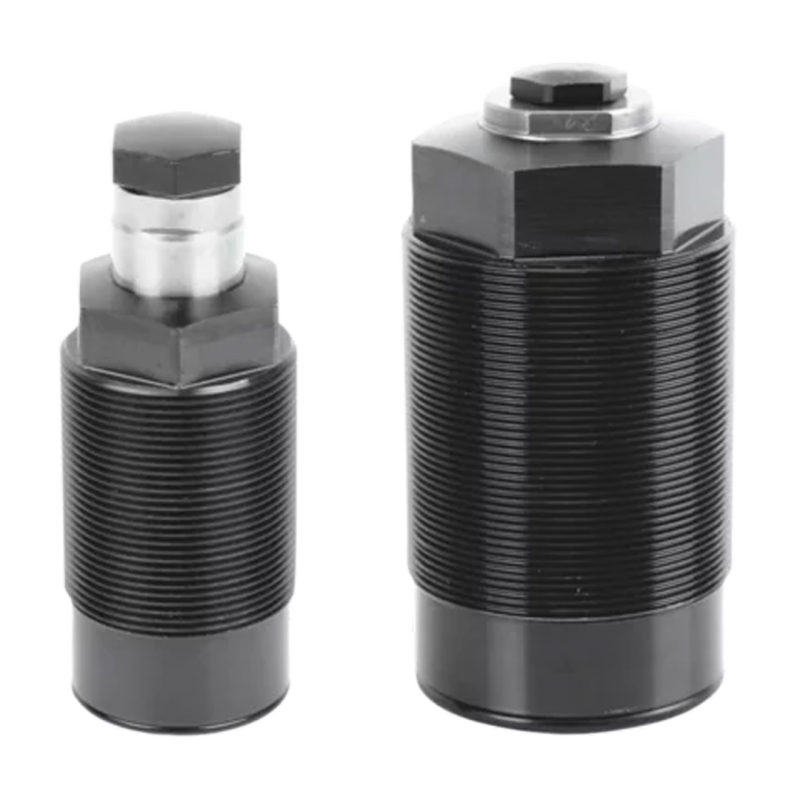

Single Acting Threaded Body Work Supports with Optional Contact Control

Single Acting Threaded Body Work Supports with Optional Contact Control - ROEMHELD B1.943

• Max. operating pressure 500 bar
• External thread: M30 - M60
• Max. load force: 6.5 - 42 kN
• Plunger diameter: 16 - 32 mm
• Plunger stroke: 8 - 16 mm
• Max. flow rate: 25 cm³/s
• Elastic deformation: 2.5 - 3.5 µm/kN

Advantages:

• Space-saving threaded-body version
• 4 sizes available
• Load force up to 42 kN
• Workpiece contact by spring force or pneumatically adjustable (type 1941)
• Optional pneumatic contact control
• Metallic wiper edge
• Protected FKM wiper
• Inner parts protected against corrosion
• Venting of the spring area
• Connection of positive air pressure protection possible
• Protection cap available as accessory
• Integrated orifice for flow rate limitation (type1942)
• Mounting position: any

Application:

Hydraulic work supports are used to provide a self-adjusting rest for workpieces and avoid their vibration and deflection under machining loads. The threaded-body design allows for space-saving and direct installation into the fixture body. Hydraulic oil supply and venting are made via drilled channels.

Description:

In the body of the threaded-body work supports a thin-walled locking bush is integrated, which locks cylindrically around the freely-movable support plunger when pressurising the element
with hydraulic oil. There are three variations of plunger actuation:

1. Spring force
2. Pneumatically
3. Hydraulically and spring force

The correct contact at the workpiece can be controlled with the optional pneumatic contact control. The body with metallic wiper edge protects the subjacent FKM wiper against coarse and hot swarf.
