Double Acting Threaded Body Work Supports with Optional Contact Control

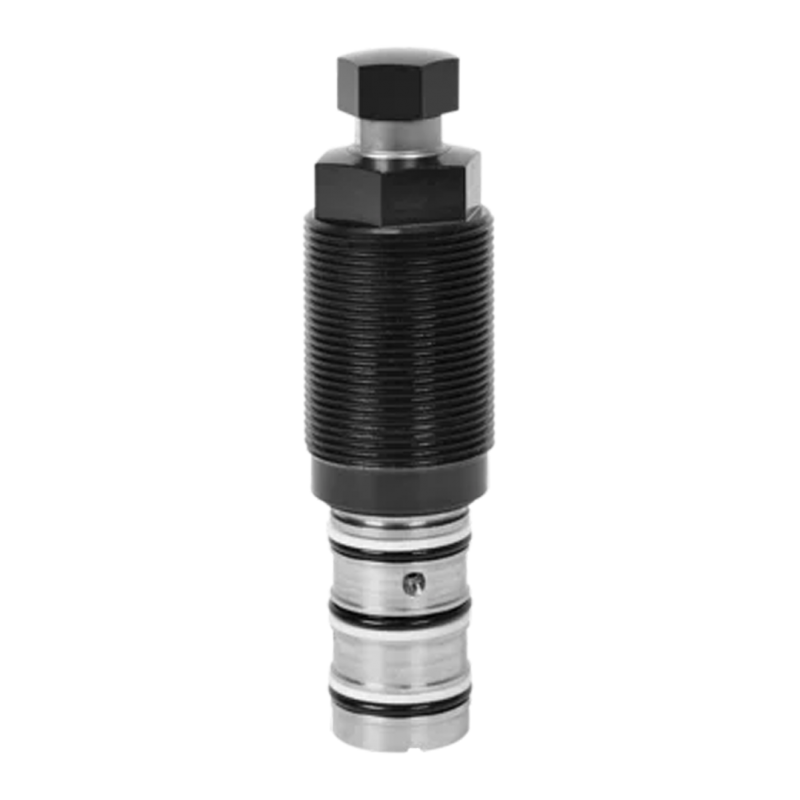

Threaded Body Work Support - ROEMHELD B1.944

• Max. operating pressure 500 bar
• External thread: M30 - M60
• Max. load force: 6,5 - 42 kN
• Plunger diameter: 16 - 32 mm
• Plunger stroke: 8 - 16 mm
• Elastic deformation: 2,5 - 3,5 μm/kN

Advantages:

• High process safety by double-acting function
• Space-saving threaded-body version
• 4 sizes available
• Load force up to 42 kN
• Workpiece contact by spring force
• Optional pneumatic contact control
• Metallic wiper edge
• Protected FKM wiper
• Protection cap available as accessory
• Inner parts protected against corrosion
• Venting of the spring area
• Connection of positive air pressure protection possible
• Installed orifice for flow rate limitation
• Mounting position: any

Application:

Hydraulic work supports are used to provide a self-adjusting rest for workpieces and avoid their vibration and deflection under machining loads. The threaded-body design allows for space-saving and direct installation into the fixture body. Hydraulic oil supply and venting are made via drilled channels. In case of the double-acting version the return stroke of the support plunger is effected in a precisely defined time, that is above all advantageous in cycle-dependent installations.

Description:

In the body of the threaded-body work support a thin-walled locking bush is integrated, which locks cylindrically around the freely-movable support plunger when pressurising the element with hydraulic oil. The support plunger is extended and retracted by means of a small double-acting cylinder. Contact to the workpiece is made by spring force. A pneumatic contact control is available as an option. The body with metallic wiper edge protects the subjacent FKM wiper against coarse and hot swarf.
