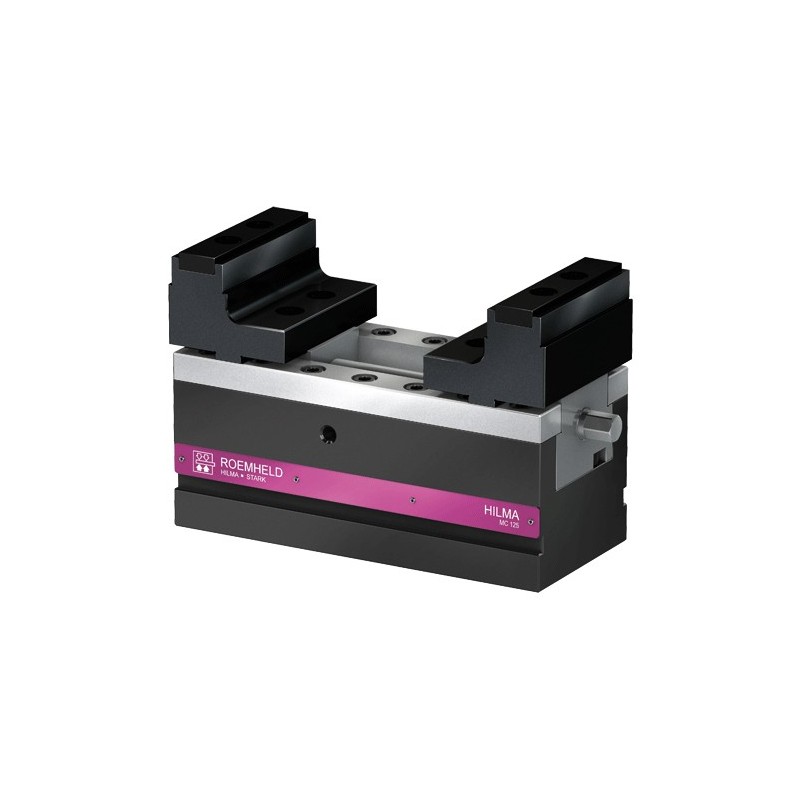

MC125 Concentric for 5-axis Machining

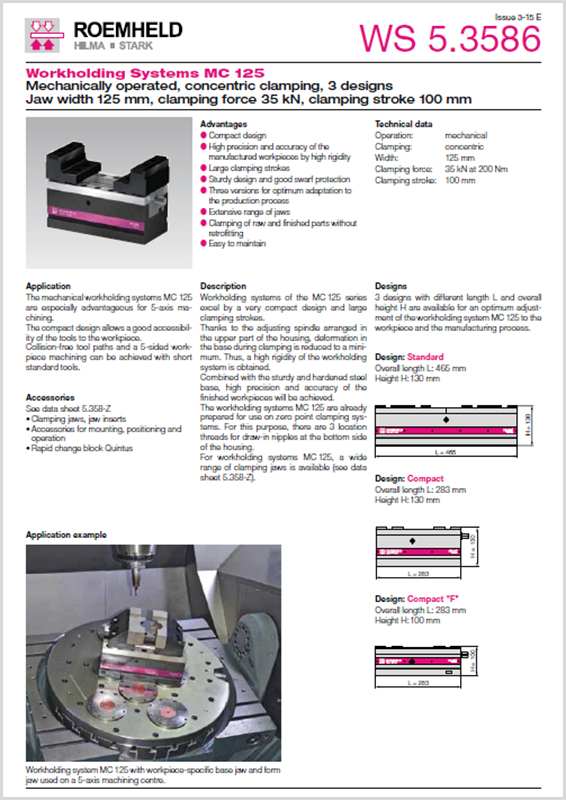

MC125 Concentric for 5-axis Machining - ROEMHELD WS 5.3586

The mechanical workholding systems MC 125 are especially advantageous for 5-axis machining. The compact design allows a good accessibility of the tools to the workpiece. Collision-free tool paths and a 5-sided workpiece machining can be achieved with short standard tools.

Features

• Compact, sturdy design with good swarf protection
• Large clamping strokes
• Three versions for optimum adaptation to the production process
• Extensive range of jaws
• Clamping of raw and finished parts without retrofitting
• Easy to maintain

Workholding systems of the MC 125 series excel by a very compact design and large clamping strokes.

Thanks to the adjusting spindle arranged in the upper part of the housing, deformation in the base during clamping is reduced to a minimum. Thus, a high rigidity of the workholding system is obtained. Combined with the sturdy and hardened steel base, high precision and accuracy of the finished workpieces will be achieved.

The workholding systems MC 125 are already prepared for use on zero point clamping systems. For this purpose, there are 3 location threads for draw-in nipples at the bottom side of the housing. For workholding systems MC 125, a wide range of clamping jaws is available (see data sheet 5.358-Z).
