MC-P Balance, Position Flexible

MC-P Z Balance, Position Flexible

ROEMHELD WS 5.4503 - Workholding Systems MC-P Z Balance, Position Flexible

max. clamping force:

  • MC-P 60 ZB:   15 kN at  50 Nm
  • MC-P 100 ZB: 25 kN at  80 Nm
  • MC-P 125 ZB: 35 kN at 200 Nm
Print page

Description
Downloads
WS54503 en 0917

MC-P Z Balance, Position Flexible - ROEMHELD WS 5.4503

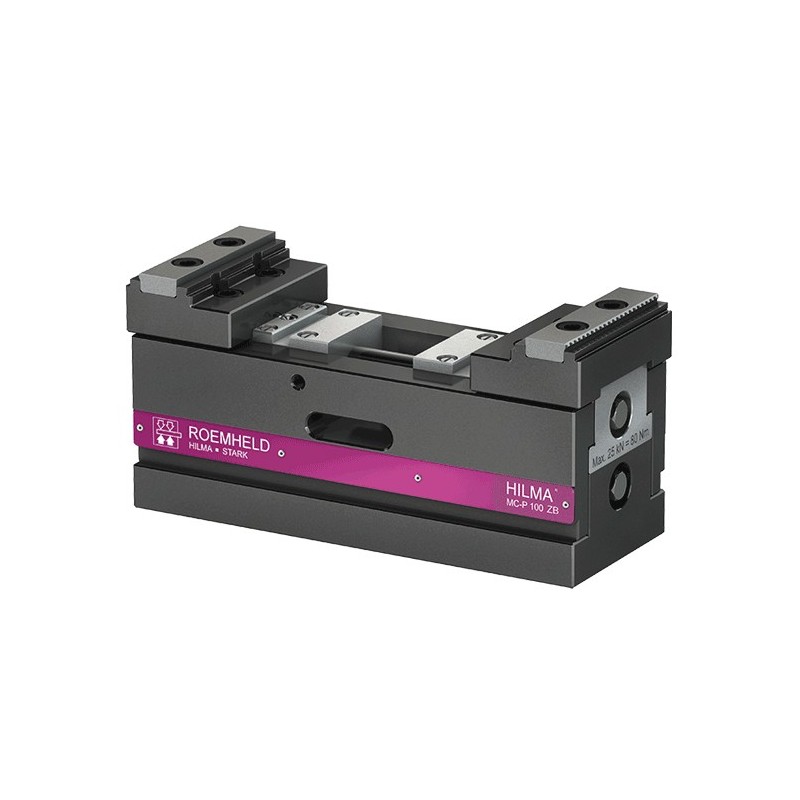

MC-P 60 ZB

  • Jaw width: 60 mm
  • Clamping force: 15 kN at 50 Nm
  • Clamping stroke: 30 mm
  • Max. jaw opening: 6 – 150 mm

MC-P 100 ZB

  • Jaw width: 100 mm
  • Clamping force: 25 kN at 80 Nm
  • Clamping stroke: 50 mm
  • Max. jaw opening: 6 – 204 mm

MC-P 125 ZB

  • Jaw width: 125 mm
  • Clamping force: 35 kN at 200 Nm
  • Clamping stroke: 101 mm
  • Max. jaw opening: 6 – 400 mm

Advantages:

  • Patented segment design
  • Clamping without deformation of workpieces by position flexible clamping point
  • Clamping system also suitable for concentric clamping
  • Compact design
  • High precision and accuracy of the manufactured workpieces by high rigidity
  • Sturdy design and good swarf protection
  • Large jaw openings
  • Extensive range of jaws
  • Clamping of raw and finished parts without retrofitting
  • Easy to maintain

Application:

Besides 5-axis machining and concentric clamping, the position flexible workholding system MC-P Balance offers the solution for individual or series clamping of bars, rails, profiles, guide rails or housings. The compensating function avoids tensioning and deformation on the workpiece.
Also workpieces that are fixed by internal contours or positioning elements can be clamped concentrically. For this purpose, customer-specific dowel holes or tapped holes can be provided in the guide bars of the MC-P Balance in which the workpiece supports or stops can be fixed.

Description:

Workholding systems of the MC-P Z Balance series excel by a very compact design and their patented segment design.
Due to the position flexible function, deformation of the workpiece during clamping can be avoided.
The patented segment design ensures a high degree of precision and stability. The guiding clearance is reduced to nearly zero.
All essential components are made of hardened steel.
