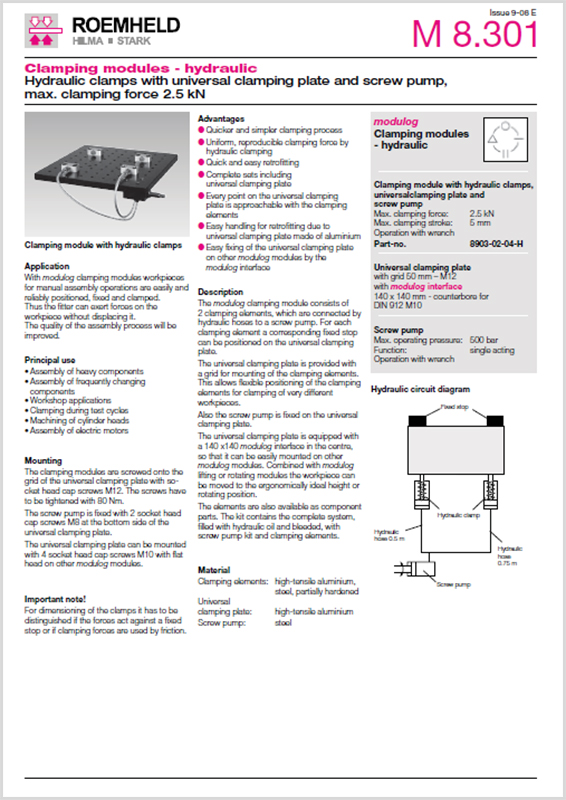

ROEMHELD M8.301 Modulog Clamping Modules workpieces for manual assembly operations.

  • Functioning: single acting
  • Max. clamping force: 2.5 kN
  • Max. clamping stroke: 5 mm
  • Max. operating pressure: 500 bar
  • Hose nominal diameter: ND 4

Description
Downloads

Hydraulic Clamping Modules - ROEMHELD M8.301

  • Functioning: single acting
  • Max. clamping force: 2.5 kN
  • Max. clamping stroke: 5 mm
  • Max. operating pressure: 500 bar
  • Hose nominal diameter: ND 4

Advantages:

  • Quicker and simpler clamping process
  • Uniform, reproducible clamping force by hydraulic clamping
  • Quick and easy retrofitting
  • Complete sets including universal clamping plate
  • Every point on the universal clamping plate is approachable with the clamping elements
  • Easy handling for retrofitting due to universal clamping plate made of aluminium
  • Easy fixing of the universal clamping plate on other modulog modules by the modulog interface

Application:

With modulog clamping modules workpieces for manual assembly operations are easily and reliably positioned, fixed and clamped. Thus the fitter can exert forces on the workpiece without displacing it. The quality of the assembly process will be improved.

Principal use:

  • Assembly of heavy components
  • Assembly of frequently changing components
  • Workshop applications
  • Clamping during test cycles
  • Machining of cylinder heads
  • Assembly of electric motors

Description:

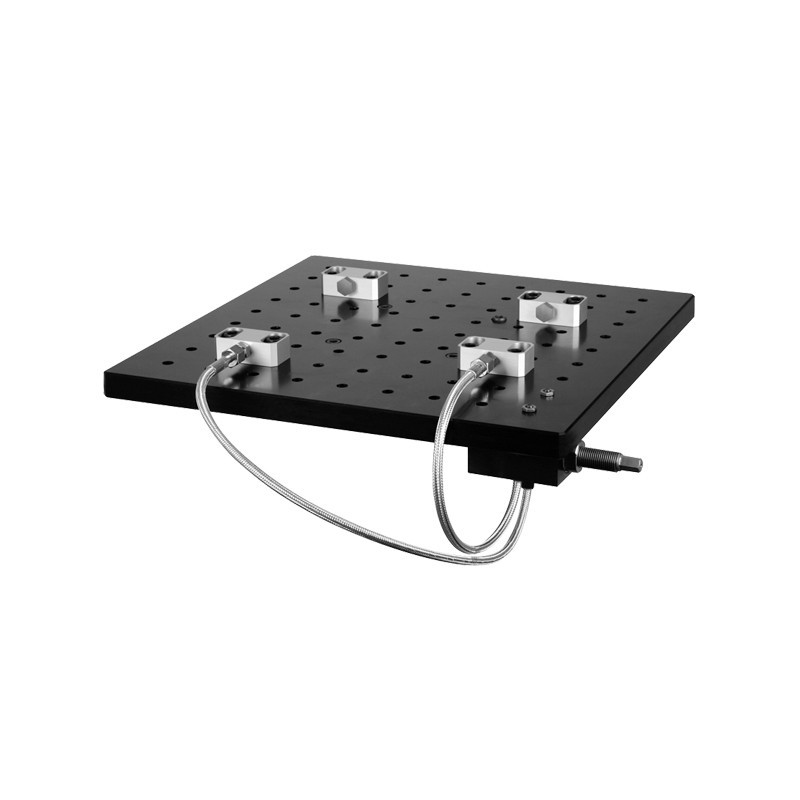

The modulog clamping module consists of 2 clamping elements, which are connected by hydraulic hoses to a screw pump. For each clamping element a corresponding fixed stop can be positioned on the universal clamping plate. The universal clamping plate is provided with a grid for mounting of the clamping elements. This allows flexible positioning of the clamping elements for clamping of very different workpieces. Also the screw pump is fixed on the universal clamping plate. The universal clamping plate is equipped with a 140 x140 modulog interface in the centre, so that it can be easily mounted on other modulog modules. Combined with modulog lifting or rotating modules the workpiece can be moved to the ergonomically ideal height or rotating position. The elements are also available as component parts. The kit contains the complete system, filled with hydraulic oil and bleeded, with screw pump kit and clamping elements.
