Quick-change Mounting Plate

Quick-change Mounting Plate - ROEMHELD M8.302

• Clamping force (traction) approx.: approxl 5 kN
• Max. retention force: 10 kN
• Force to engage: approx. 80N
• Pneumatic unclamping pressure: 3 - 8 bar
• Clamping / Unclamping time: approx. 0.1 s
• Max. workpiece weight 100 kg

Advantages:

• modulog interface
• Workpiece change in seconds by SPEEDY easy click
• Engages immediately without any energy supply!
• Immediate build up of the clamping force 5 kN
• Max. retention force 10 kN
• Pneumatics for unclamping available everywhere
• Radial positioning by locating bolts
• Snapper as a safety against falling out in the changing position

Application:

The quick-change mounting plate can be mounted onto all modulog modules and devices with interface 140 x 140 mm.
The built-in STARK zero point clamping system SPEEDY easy click allows a very fast workpiece change. A prerequisite is that the workpieces are mounted on base plates which are equipped with a draw-in nipple for the SPEEDY easy click.
This system is particularly suitable:

• when workpieces must be frequently changed very quickly at the assembly station
• when different workpieces or parts families are to be routed through one assembly station
• when workpieces are to be routed through several assembly stations
• when the workpiece with the required base plate is still manually tradable

Description:

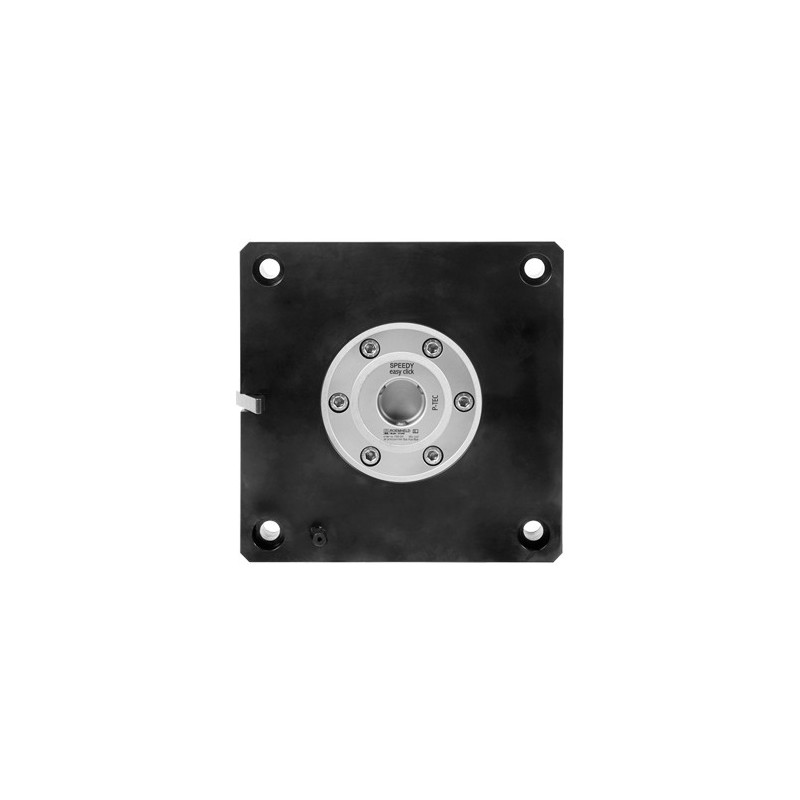

The quick-change mounting plate is designed as adaptor plate with connecting dimensions of the modulog interface 140 x 140. A STARK zero point clamping system SPEEDY easy click is installed in the centre. This is a fast-closing clamp plate that engages immediately and clamps without energy supply. For unclamping a pneumatic connection is required. The required draw-in nipple is mounted on the base plate for the workpiece to be clamped. The radial positioning is made by a location bolt. A suitable drill bush is embedded in the base plate. In addition, there is a snapper installed to secure the workpiece against falling out after the pneumatic unclamping of the zero point clamping element.
