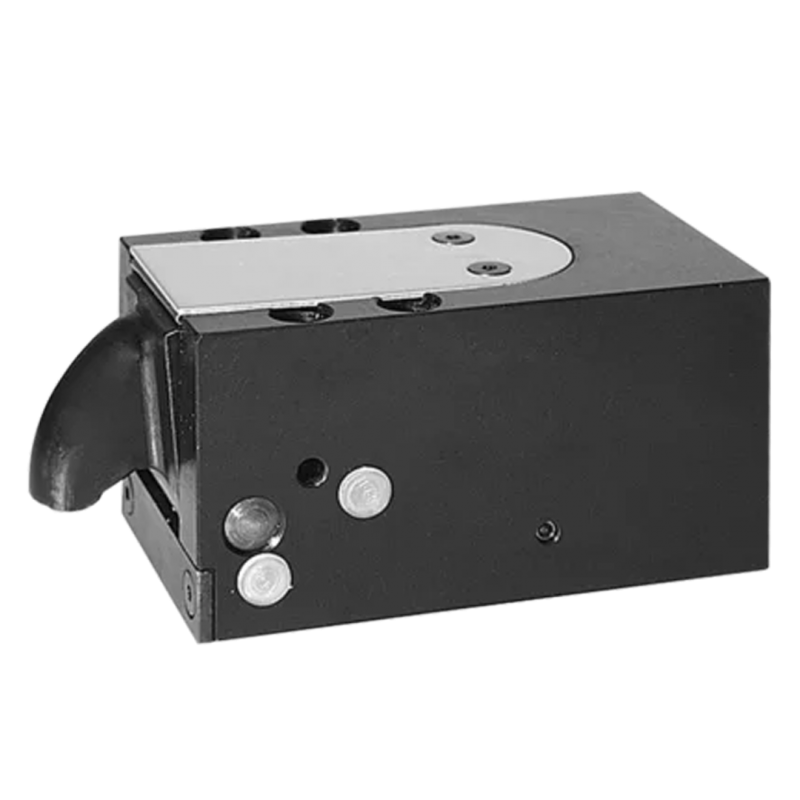

Flat Clamp with Optional Position Monitoring

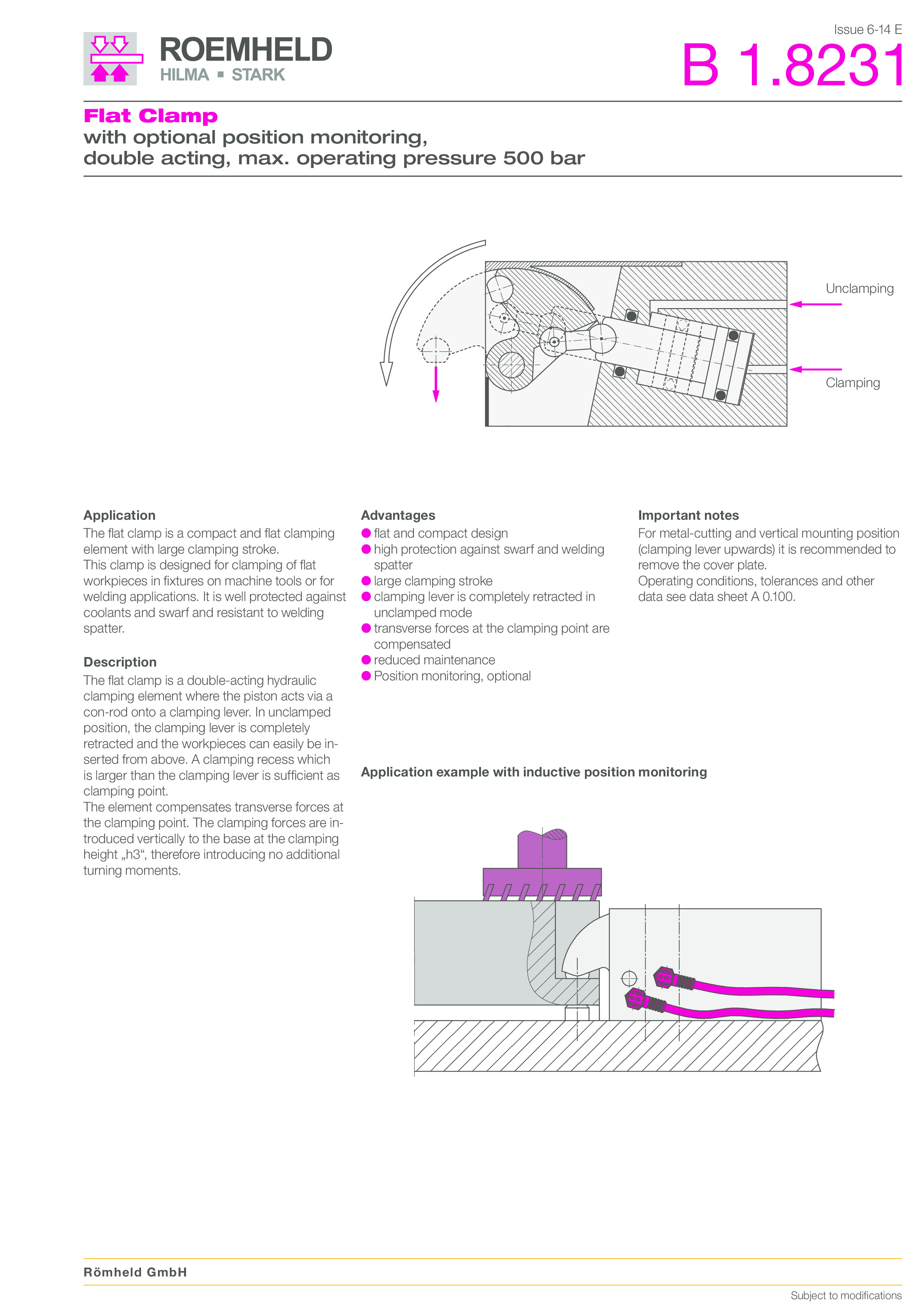

ROEMHELD B1.8231 Flat Clamp with optional position monitoring, double acting
- Double acting
- Maximum clamping force: 12.3 - 23.6 kN
- Operating pressure 500 bar maximum
- Clamping stroke ranges from 9 to 16 mm
The flat clamp is a double-acting hydraulic clamping element where the piston acts via a con-rod onto a clamping lever. In unclamped position, the clamping lever is completely retracted and the workpieces can easily be inserted from above.
Flat Clamp with Optional Position Monitoring - ROEMHELD B1.8231
- Max. clamping force: 12.3 - 23.6 kN
- Max. operating pressure 500 bar
- Clamping stroke: 9 - 16 mm
Advantages:
- Flat and compact design
- High protection against swarf and welding spatter
- Large clamping stroke
- Clamping lever is completely retracted in unclamped mode
- Transverse forces at the clamping point are compensated
- Reduced maintenance
- Position monitoring, optional
Description:
The flat clamp is a double-acting hydraulic clamping element where the piston acts via a con-rod onto a clamping lever. In unclamped position, the clamping lever is completely retracted and the workpieces can easily be inserted from above. A clamping recess which is larger than the clamping lever is sufficient as clamping point. The element compensates transverse forces at the clamping point. The clamping forces are introduced vertically to the base at the clamping height „h3“, therefore introducing no additional turning moments.
Application:
The flat clamp is a compact and flat clamping element with large clamping stroke. This clamp is designed for clamping of flat workpieces in fixtures on machine tools or for welding applications. It is well protected against coolants and swarf and resistant to welding spatter.
