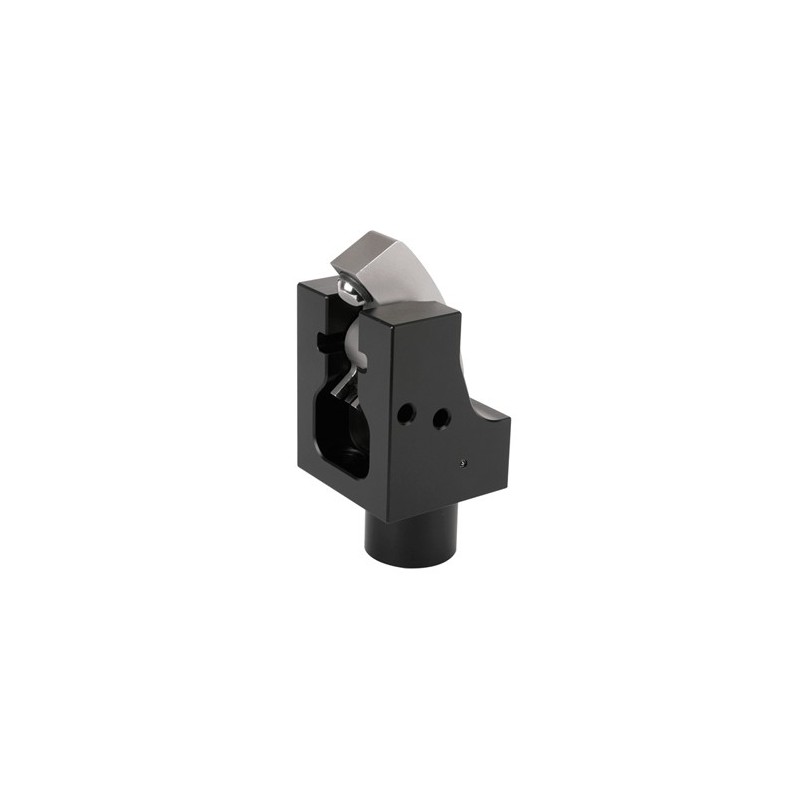

Slide Pivot Clamp
ROEMHELD B1.8241 Slide Pivot Clamps: with optional position monitoring double acting
- Max. clamping force: 15 - 50 kN
- Max. operating pressure 500 bar
- Clamping stroke: 7 - 9.5 mm
Slide Pivot Clamp - ROEMHELD B1.8241
- Max. clamping force: 15 - 50 kN
- Max. operating pressure 500 bar
- Clamping stroke: 7 - 9.5 mm
Advantages:
- 3 sizes
- High clamping force, up to 50 kN
- Minimum dimensions
- High efficiency
- Minimum side loads act on the workpiece in the clamping area
- Increased rigidity allows compensation of side loads at the clamping point
- Unimpeded loading and unloading of the fixture
- Inductive or pneumatic monitoring of the clamping lever available as accessory
- Monitoring of the unclamping position and the usable clamping range is possible
- Two different clamping levers are available
- Clamping lever can be swivelled into small recesses
- Partially immersed mounting of the body
- Oil supply alternatively via fittings or drilled channels
Description:
In the case of the slide pivot clamp the piston force is deviated by 180° by the clamping lever and is available as clamping force with virtually no loss of efficiency. Kinematics of the slide pivot clamp allow sliding back of the clamping lever during unclamping for unimpeded insertion of the workpieces. The clamping lever is available with smooth swivel contact bolt and in a longer version with dome-head contour. The position of the clamping lever can be monitored by inductive proximity switches or pneumatic jets. The pivot slide clamp can be installed immersed up to the flange surface in a hole of the fixture body or via intermediate plates which are available as an accessory. For both solutions there is the possibility to supply the hydraulic oil not only by fitting connection but also via drilled channels in the fixture body.
Application:
The slide pivot clamp has in relation to its base a very high clamping force. The clamps are particularly suitable for clamping tasks on machines with high performance and reduced space availability on the fixture. The workpieces can be inserted from above without any impediments. A clamping recess a little bit wider than the clamping lever is sufficient as clamping surface. This characteristic indicates their use for clamping of aluminium parts, which are very sensitive against deformation, with correspondingly reduced oil pressure.
