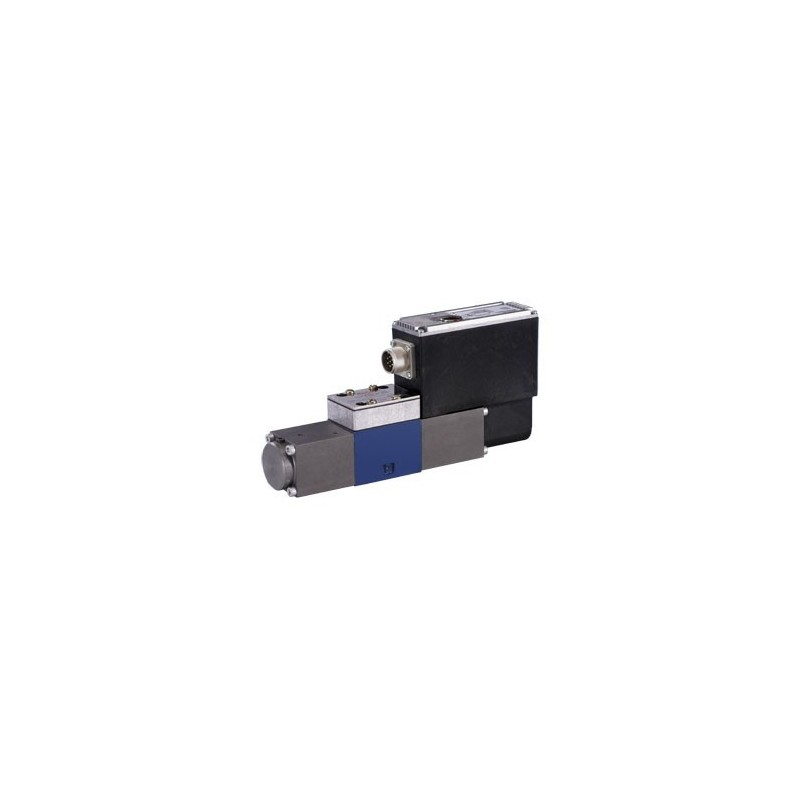

4/3 High-response Directional Valves, Direct Operated with Electrical Position Feedback and Integrated Electronics (OBE) 4WRSEH
The 4/3 directional control valves are designed as direct operated devices in plate design. Operation is effected by means of control solenoids. The solenoids are controlled via integrated control electronics (OBE)
- Size 6, 10
- Component series 3X
- Maximum operating pressure 315 bar
- Maximum flow 180 l/min
- Nominal flow 4 ... 100 l/min
Description
Downloads
Bosch Rexroth 4/3 High-response Directional Valves, Direct Operated with Electrical Position Feedback and Integrated Electronics (OBE) 4WRSEH
- Size 6, 10
- Component series 3X
- Maximum operating pressure 315 bar
- Maximum flow 180 l/min
- Nominal flow 4 ... 100 l/min
Features:
- Direct operated high-response directional valve with integrated control electronics (OBE) for the control of flow direction and size
- Suitable for position, velocity and pressure control purposes
- Operation by means of control solenoids
- Electrical position feedback
- High response sensitivity and low hysteresis
- Integrated electronics (OBE)
- For subplate mounting: Porting pattern according to DIN 24340 form A and ISO 4401
- With Fail-safe position for 4/4-directional control valve
Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can't find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
