M-.SED 10 Series 1x
On/off directional seat valves with solenoid actuation M-SED 10...XN 3/2 and 4/2 direct operated
- Size 10
- Component series 1X
- Maximum operating pressure 350 bar [5076 psi]
- Maximum flow 40 l/min [10.6 US gpm]
Products
Downloads
Description
| Part Number | Material Number | No-Show | Price | Add to Parts List |
|---|---|---|---|---|
| M-3SED10UK1X/350CG24N9K4 | R900051053 | 0 | £659.42 £791.30 Inc. VAT |
|
| M-3SED10CK1X/350CG24N9K4 | R900086685 | 00 | £659.42 £791.30 Inc. VAT |
|

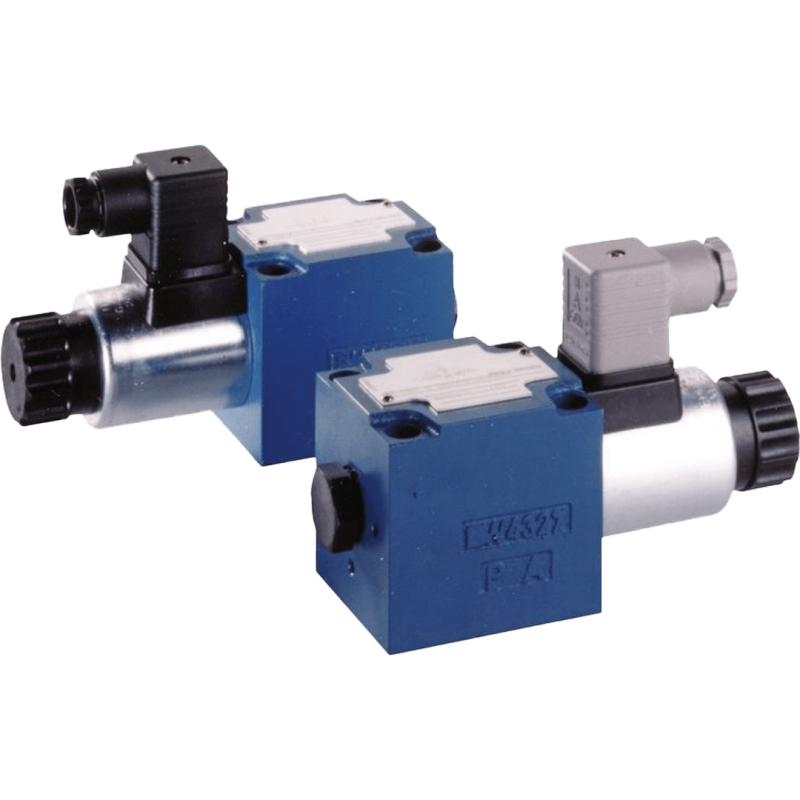

Bosch Rexroth 3/2 and 4/2 Directional Seat Valves with Solenoid Actuation Type M-.SED 10
- Component series: 1X
- Size: 10
- Maximum operating pressure: 350 bar
- Maximum flow: 40 l/min
- Explosion-proof also available
Features:
- Direct operated directional poppet valve with solenoid actuation
- Porting pattern to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-D05
- Sub plates to data sheet RE 45054 (separate order)
- Blocked port is leak-free closed
- Reliable operation also after longer periods of standstill under pressure
- Wet-pin DC solenoids with detachable coil (AC voltage possible with rectifier)
- Solenoid coil can be rotated around 90°
- For changing the coil, the pressure-tight chamber needs not to be opened
- Electrical connection as individual connection
- With concealed manual override, optional
- Inductive position switches and proximity sensors (contact-free and floating), see RE 24830
- For further electrical connections, see RE 08010
