GX80 (80:1)

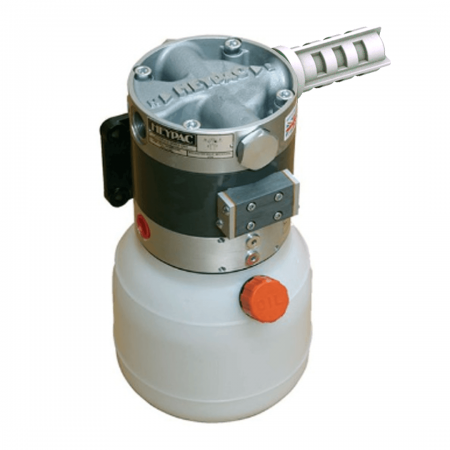

The HEYPAC GX80 is a double acting, free piston, compressed air driven hydraulic pump of infinitely variable delivery for general use wherever a compressed air supply is available. The pump will cycle automatically according to system demand and stall under zero flow conditions with minimal energy consumption. The output flow and pressure depend upon the intensification ratio relative to the air supply pressure and volume.

Ratio fluid:air - 80:1

P max fluid bar (psi) - 560 (8120)

Q max fluid L/min (US gpm) - 2.5 (0.66)

Q max average fluid L/min (US gpm) - 0.7 (0.18)

The HEYPAC EGX80 is a double acting, free piston, compressed air driven hydraulic pump of infinitely variable delivery for general use wherever a compressed air supply is available. The pump will cycle automatically according to system demand and stall under zero flow conditions with minimal energy consumption. The output flow and pressure depend upon the intensification ratio relative to the air supply pressure and volume.

Heypac's EGX pump is ATEX certified means the pump is approved for operation in potentially explosive atmospheres where flammable gases, vapours, dusts, or mists may be present

Ratio fluid:air - 80:1

P max fluid bar (psi) - 560 (8120)

Q max fluid L/min (US gpm) - 2.5 (0.66)

Q max average fluid L/min (US gpm) - 0.7 (0.18)
