Wedge Clamps for Tapered Clamping Edge with Single Valve Control for Individual Control

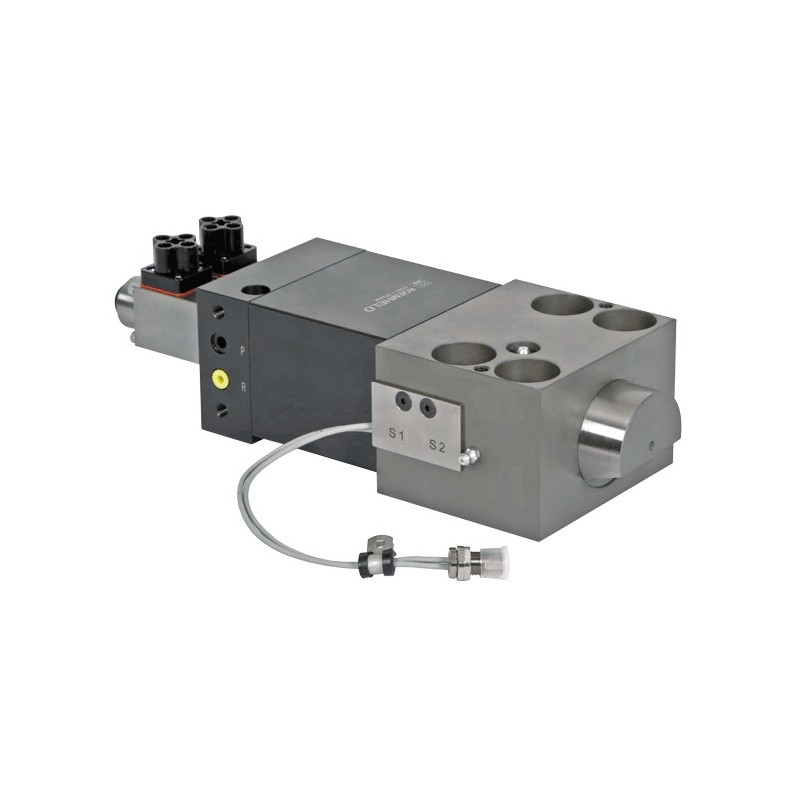

HILMA WZ 2.2409 Wedge Clamps for Tapered Clamping Edge double acting, max. clamping force 100 to 630 kN, with single valve control for individual control
- Max. clamping force: 100 .. 630 kN
- Operating pressure: 200 .. 350 bar
- Valve voltage: 24 VDC
- Max. temperature: 100 °C
Wedge Clamps for Tapered Clamping Edge with Single Valve Control for Individual Control - HILMA WZ 2.2409
- Max. clamping force: 100 .. 630 kN
- Operating pressure: 200 .. 350 bar
- Valve voltage: 24 VDC
- Max. temperature: 100 °C
Advantages:
- Safe clamping of moulds/dies with tapered clamping edge
- Each element can be individually controlled
- Single moulds/dies can be clamped
- High operational safety by position monitoring, check valves and automatic motion sequence
- Very sturdy design
- Long service life
- Little installation work as a result of a plugtype closed hydraulic circuit
- Suitable for BUS systems
Application:
Double-acting wedge clamp with manifold-mounted directional control valves as control valves for the separate control of all clamping elements. For clamping moulds or dies on a press bed or ram or in injection moulding machines, machines and installations.
Description:
The wedge clamp consists of a hydraulic block cylinder and a piston guided in a housing. The clamping bolt is provided with 20° bevel to clamp on the tapered clamping surface of the mould/die. Based on the internal design of the wedge clamp and the 20° bevel of the clamping bolt, the system is providing internal friction. With safety step on request
