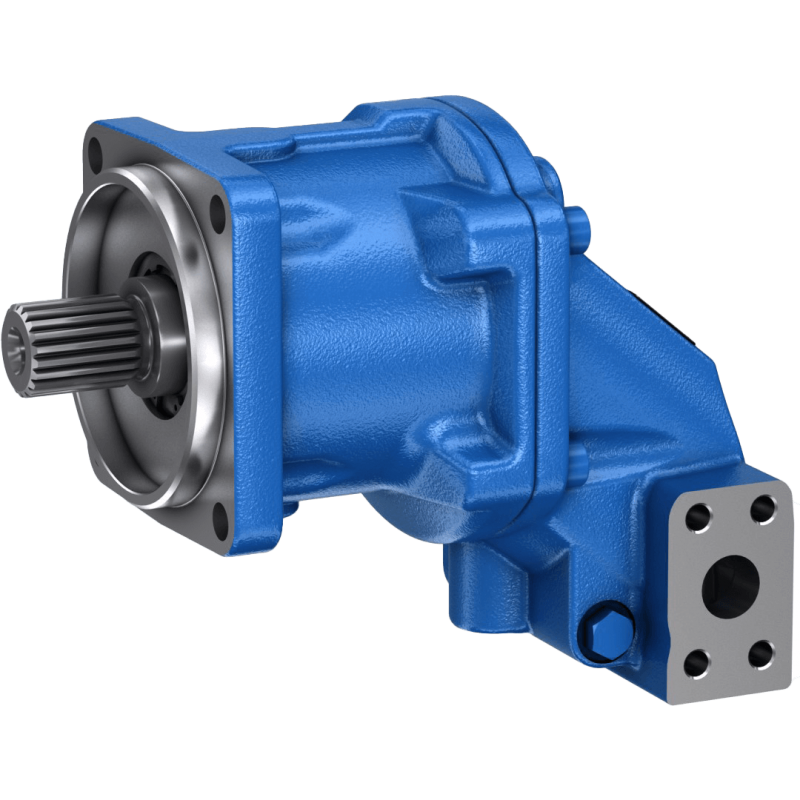

A2FM/A2FE series 70

Bosch Rexroth Hydraulic Fixed Displacement Motors Types A2FM/A2FE

•  A2FMN, A2FEN (sizes 28 to 107): Nominal pressure 300 bar Maximum pressure 350 bar
•  A2FMM, A2FEM (sizes 23 to 180): Nominal pressure 400 bar Maximum pressure 450 bar
•  A2FMH, A2FEH (sizes 45 to 125): Nominal pressure 450 bar Maximum pressure 500 bar

Features:

•  For use in mobile and stationary applications
•  Fixed motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits

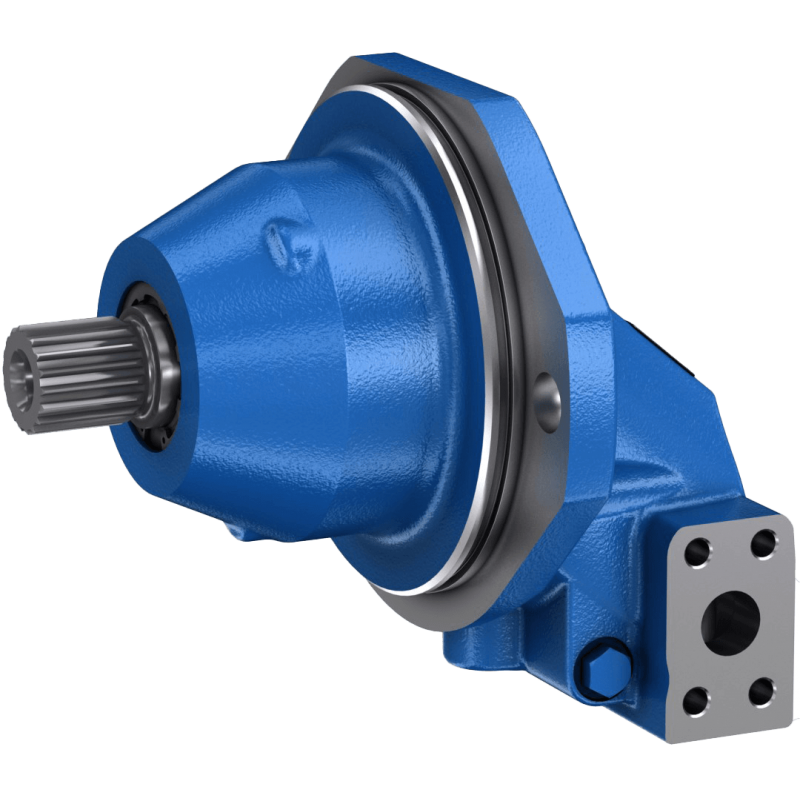

•  Far-reaching integration of the plug-in version in mechanical gears due to recessed mounting flange located in the centre of the case (extremely space-saving construction)
•  Easy to install, simply plug the plug-in version into the mechanical gearbox
•  The output speed depends on the flow of the pump and the displacement of the motor.
•  The output torque increases with the pressure differential between the high-pressure side and the low-pressure side.
•  Finely graduated sizes permit far-reaching adaptation to the drive concerned
•  High power density
•  Small dimensions
•  High total efficiency
•  Good starting efficiency
•  Optional with integrated flushing valve
