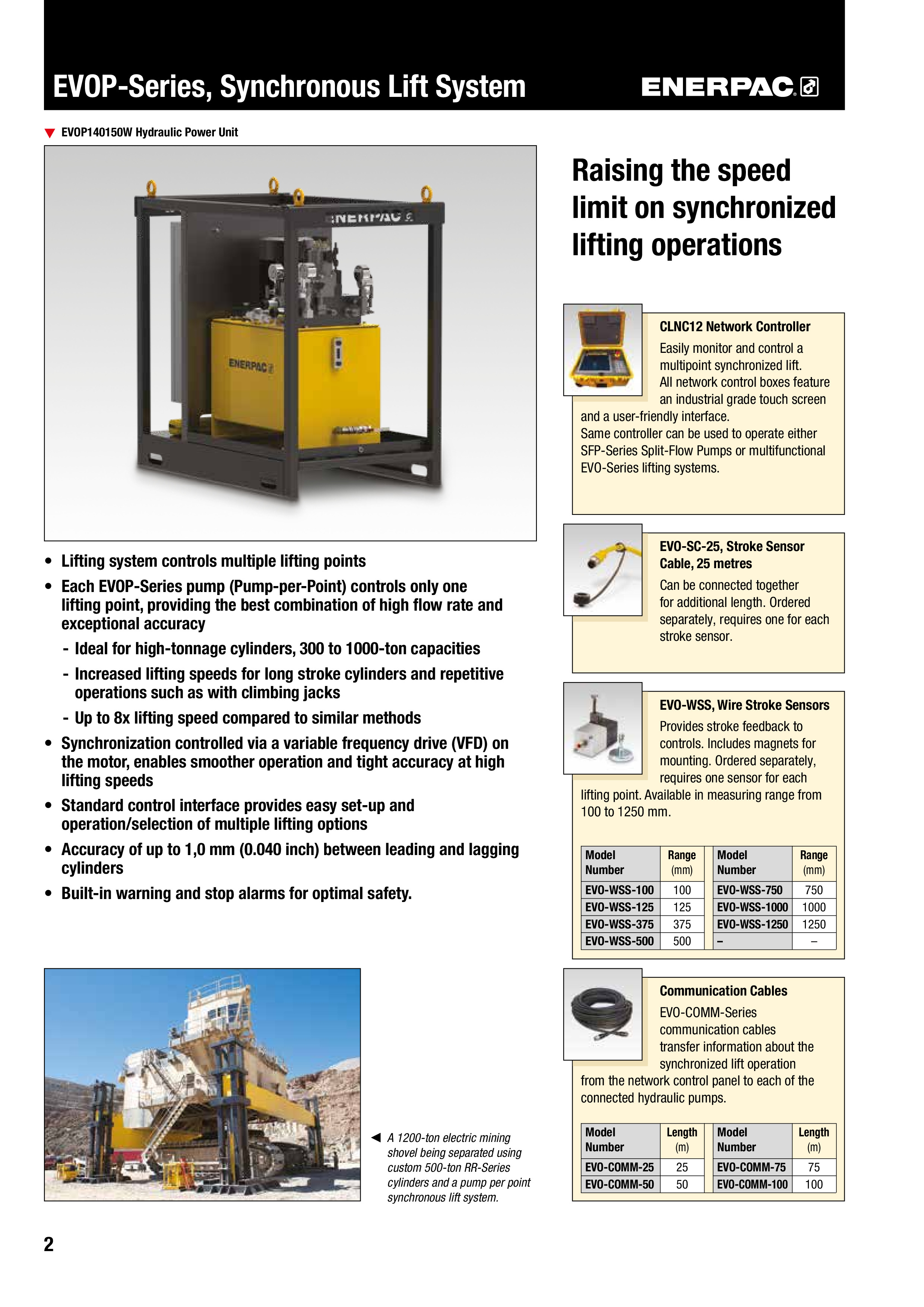

Enerpac EVOP-Series Synchronous Lifting System
The Enerpac EVOP-Series (Pump-per-Point) synchronous lift system provides industry leading speed and accuracy for 700 bar lifting operations.
- Lifting Points per Pump: 1x cylinder/pump
- Reservoir Capacity: 40 - 150 litres
- Flow at Rated Pressure: 2,1 - 8,0 l/min
- Motor Size: 3,0 - 7,5 - 15 kW
- Maximum Operating Pressure: 700 bar
Description
Downloads
Enerpac EVOP-Series Synchronous Lifting System
- Lifting Points per Pump: 1x cylinder/pump
- Reservoir Capacity: 40 - 150 litres
- Flow at Rated Pressure: 2,1 - 8,0 l/min
- Motor Size: 3,0 - 7,5 - 15 kW
- Maximum Operating Pressure: 700 bar
Features:
- Lifting system controls multiple lifting points
- Each EVOP-Series pump (Pump-per-Point) controls only one lifting point, providing the best combination of high flow rate and exceptional accuracy
- Ideal for high-tonnage cylinders, 300 to 1000-ton capacities
- Increased lifting speeds for long stroke cylinders and repetitive operations such as with climbing jacks
- Up to 8x lifting speed compared to similar methods
- Synchronization controlled via a variable frequency drive (VFD) on the motor, enables smoother operation and tight accuracy at high lifting speeds
- Standard control interface provides easy set-up and operation/selection of multiple lifting options
- Accuracy of up to 0.040 inch (1,0 mm) between leading and lagging cylinders
- Built-in warning and stop alarms for optimal safety.
