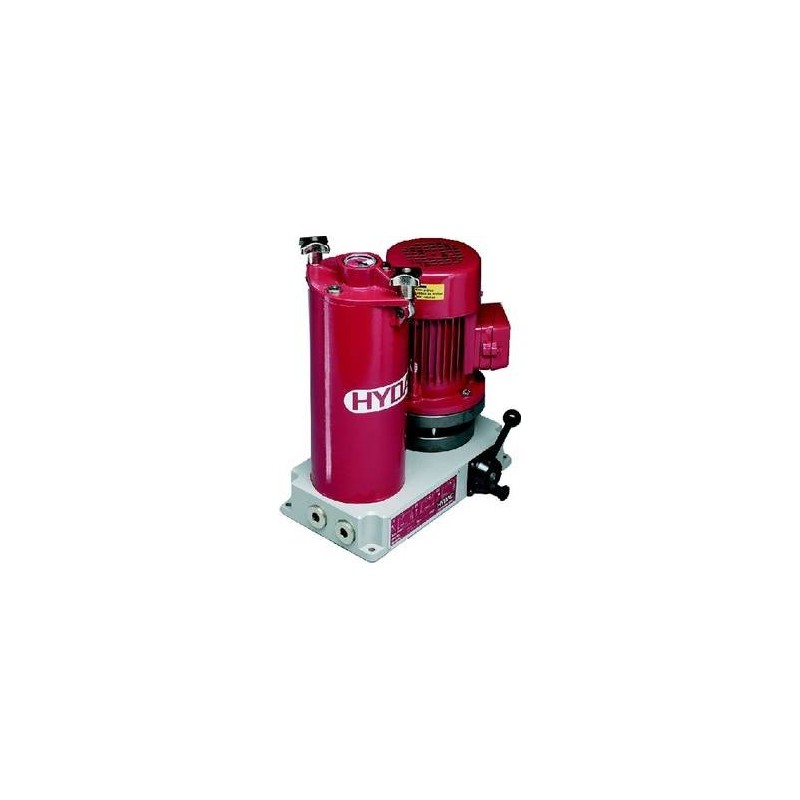

Hydac Filtromat OF 5 mini
The HYDAC Filtromat OF 5 mini is a compact, stationary fluid care unit for bypass filtration, ideal for filling, repumping, and emptying hydraulic and lubrication systems. With a flow rate of up to 15 L/min, it delivers reliable oil cleanliness in a space-saving design.
Key Features:
- Flow rate: max. 15 l/min
- Operating pressure: max. 4.5 bar
- Convenient filtration in bypass flow
Description
Downloads
HYDAC Filtromat OF 5 mini
- Flow rate: max. 15 l/min
- Operating pressure: max. 4.5 bar
- Convenient filtration in bypass flow
- Very compact construction
- Increased system availability
- Reduction of Life Cycle Cost LCC
General Function:
The stationary fluid care and servicing unit OF 5 mini for the dedusting of the fluid in the bypass flow is used for the filtered or unfiltered filling of plants, the repumping of hydraulic and lubrication media and for the emptying of hydraulic tanks.
For utilisation on hydraulic and lubrication oil plants in different industries and in mobile hydraulics.
