RS Hydraulic Slides with Four Guide Rods

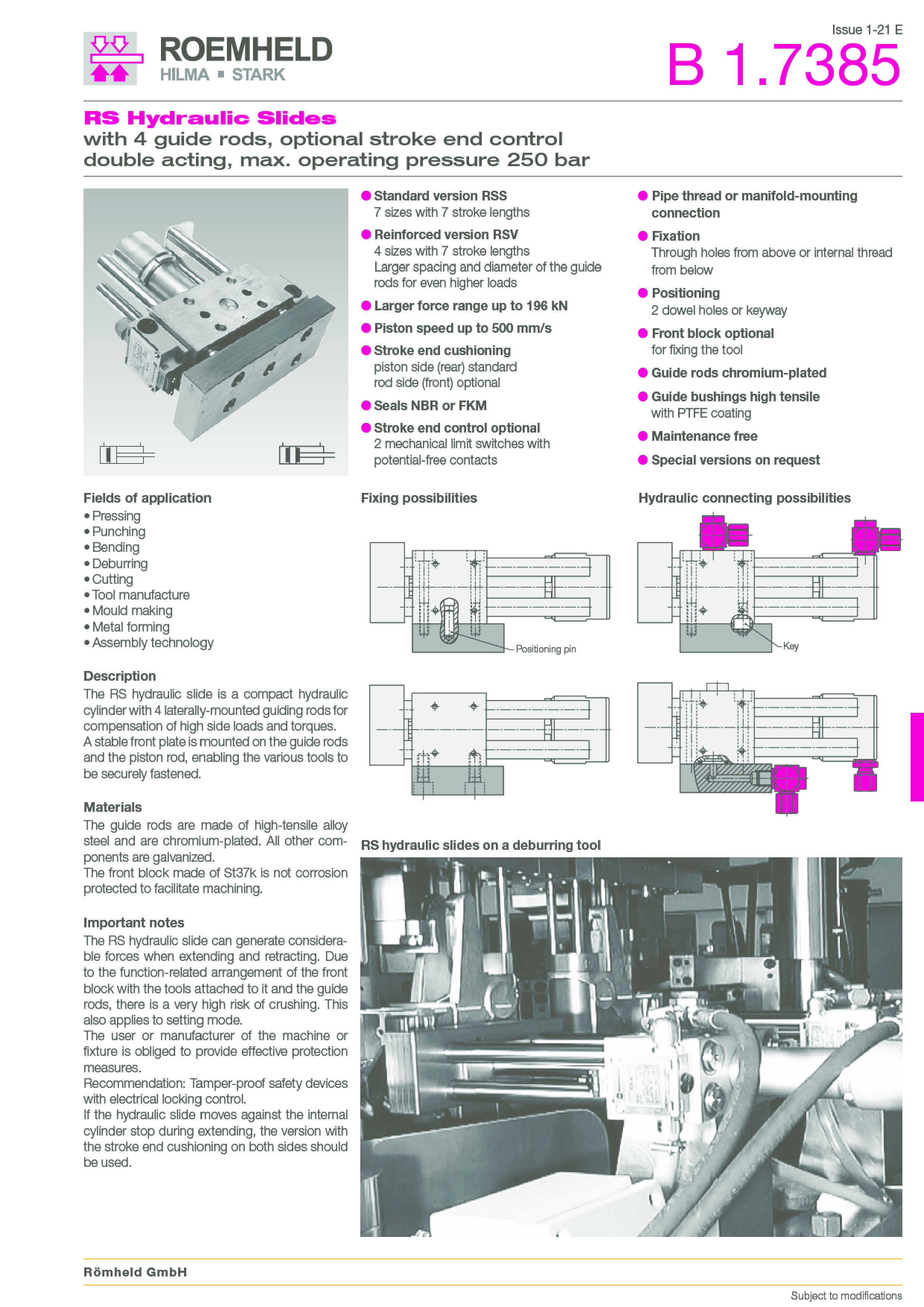

RS Hydraulic Slides with Four Guide Rods - ROEMHELD B1.7385

• Max. operating pressure 250 bar
• Piston diameter: 25 - 100 mm
• Rod diameter: 16 - 60 mm
• Stroke: 50 - 200 mm
• Max. push force: 12.3 - 196.4 kN
• Diameter of the guides: 16 - 50 mm
• Standard or Reinforced version

Advantages:

• Two series are available:
  – Standard version RSS:
  7 sizes with 7 stroke lengths
  – Reinforced version RSV:
  4 sizes with 7 stroke lengths
• Reinforced version
  The reinforced version RSV is suitable for higher loads due to larger distances and diameters of the guide rods.
• Two hydraulic connecting possibilities
  The RS hydraulic slide can optionally be supplied with hydraulic oil from above or from below by means of a connection for manifold mounting.
• Two fixing possibilities
  Mounting can be made by cross holes from above or from below, using the internal threads at the bottom.
• Stroke end cushioning
  Cushioning at the rear (piston side) is standard. Cushioning at the front (piston rod side) is optionally available. The stroke end cushioning protects the slide against damage in the case of high loads. Additional mounting of stops and cushioning elements is not required.
• Force compensation by dowel holes or tenon slot
  All axial forces can be compensated by the dowel holes at the bottom or the tenon slot. Additional support is not required.
• Fluids
  The RS hydraulic slide can be operated by hydraulic oil as well as by fire-resistant liquids (e.g. water glycol HFC).
• Option: limit switches
  For monitoring of the stroke ends, the RS hydraulic slide can be equipped with two potential-free mechanical limit switches.
• Option: front block
  Optionally, a front block can be supplied, which can be provided with fixing holes by the customer.
• Option: sealing material
  The standard sealing material is Perbunan, suitable for temperatures up to 100°C. For temperatures up to 180°C, all versions can be supplied with FKM seals with PTFE guide bands.

Description:

The RS hydraulic slide is a compact hydraulic block cylinder with 4 laterally-mounted guide rods for compensation of high transverse and moment forces. A front block is mounted at the guide rods and the piston rod. Deburring, pressing and punching tools (working loads) or other mounting parts can be fixed at this block.

Areas of application:

• Deburring tools
• Tool manufacture
• Metal forming
• Mould making
• Presses
• Punching presses
• Power workholding
• Assembly technics
