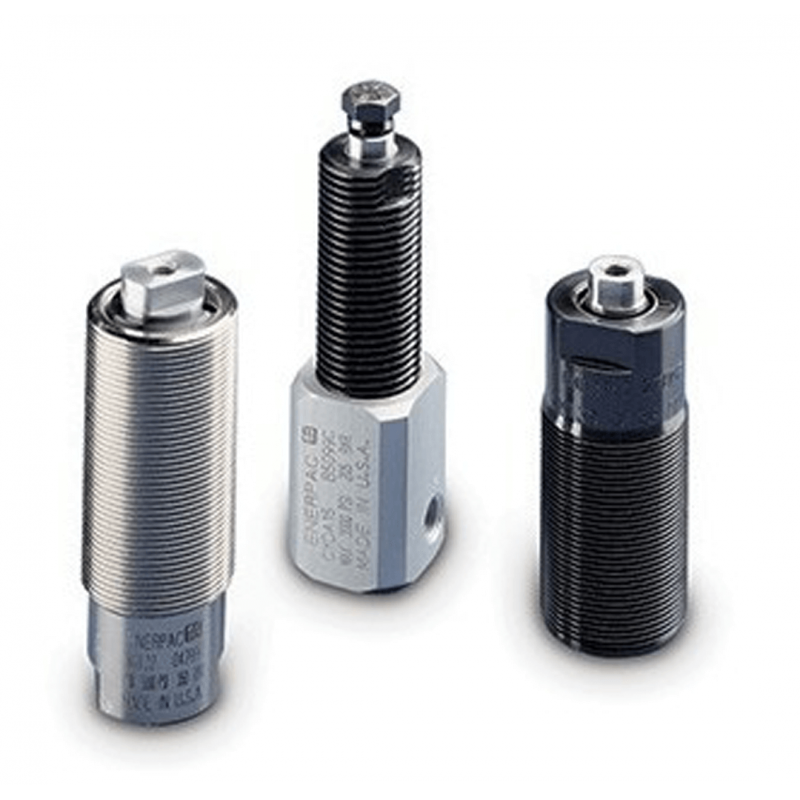

Enerpac CYDA, WMT, WRT-Series Threaded Cylinders

Enerpac CYDA, WMT, WRT-Series Threaded Cylinders

• Force: 5,3 - 17,4 kN
• Stroke: 11,9 - 39,6 mm
• Pressure: 10 - 350 bar

Features:

• Enerpac threaded cylinders provide maximum clamping force in a compact design
• Fine positioning, can be fixtured into manual strap or bridge clamp assemblies
• Threaded body allows exact positioning and easy installation
• Centre-tapped plungers allow a variety of attachments
• Single-acting spring return models simplify hydraulic tubing requirements
• Double-acting cylinder models are ideal for applications requiring powered pulling or fast automated control
• Removable base allows CYDA-15 to be threaded into a custom manifold

Single Acting:

• The obvious choice when there are few system restrictions, and there are not many units retracting simultaneously
• Fewer valving requirements which results in a less complex circuit

Double Acting:

• Used when greater control is required during the unclamp cycle
• When timing sequences are critical
• Less sensitive to system back pressures, resulting from long tube lengths or numerous components being retracted at the same time

Threaded cylinders for workpiece positioning, holding and ejecting applications where space is at a premium. The advance and retract mode of double-acting models allow installation of clamping accessories to the plunger for pull and push action. Cylinders can be mounted with horizontal bracket to position the workpiece against the stops. Ideal for supporting or positioning a part
