3/2 Pilot Operated Directional Control Valves with Inductive Position Transducer 3WRCBH
Valves of type 3WRCBH are pilot-operated high-response valves in servo quality. The design is very compact and is often used in the plastic industry at the injection cylinder.
- Component series 1X
- Size 25, 32, 50
- Maximum operating pressure 315 bar
- Maximum flow 2250 l/min
- For block installation
Description

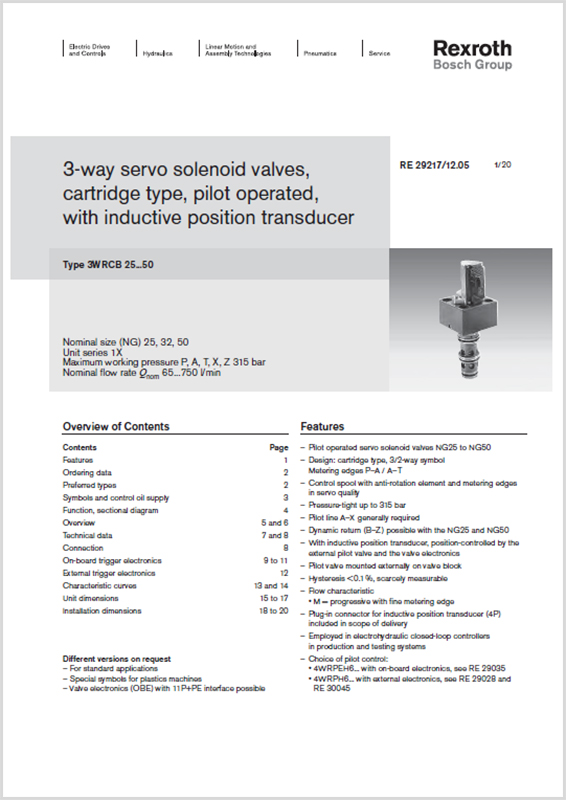

Downloads

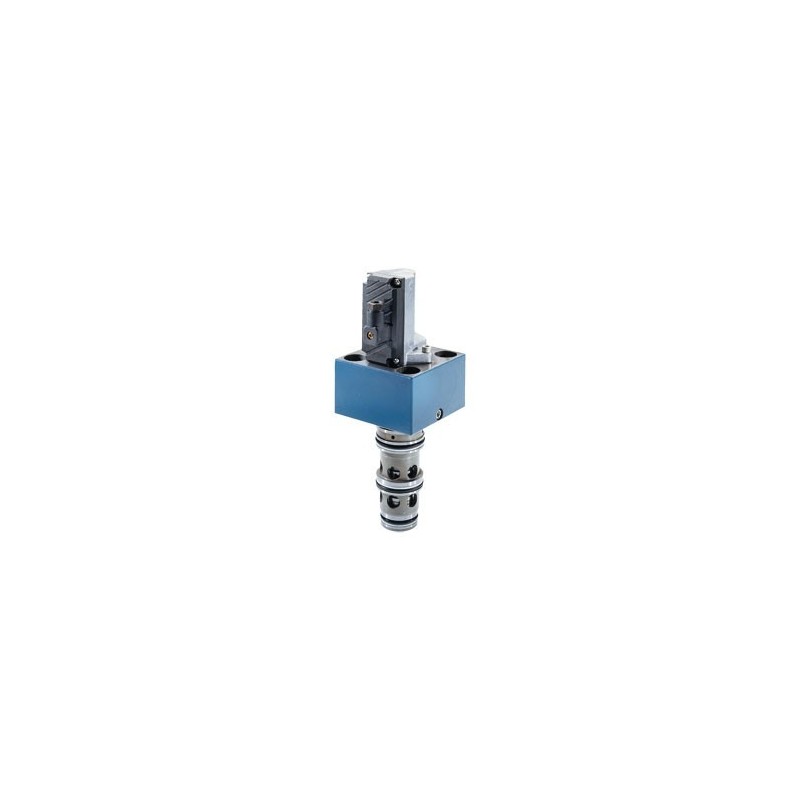

Bosch Rexroth 3/2 Pilot Operated Directional Control Valves with Inductive Position Transducer 3WRCBH
- Component series 1X
- Size 25, 32, 50
- Maximum operating pressure 315 bar
- Maximum flow 2250 l/min
- For block installation
Features:
- Pilot operated servo solenoid valves NG25 to NG50
- Design: cartridge type, 3/2-way symbol Metering edges P–A / A–T
- Control spool with anti-rotation element and metering edges in servo quality
- Pressure-tight up to 315 bar
- Pilot line A–X generally required
- Dynamic return (B–Z) possible with the NG25 and NG50
- With inductive position transducer, position-controlled by the external pilot valve and the valve electronics
- Pilot valve mounted externally on valve block
- Hysteresis < 0.1 %, scarcely measurable
- Flow characteristic
- M = progressive with fine metering edge - Plug-in connector for inductive position transducer (4P) included in scope of delivery
- Employed in electrohydraulic closed-loop controllers in production and testing systems
