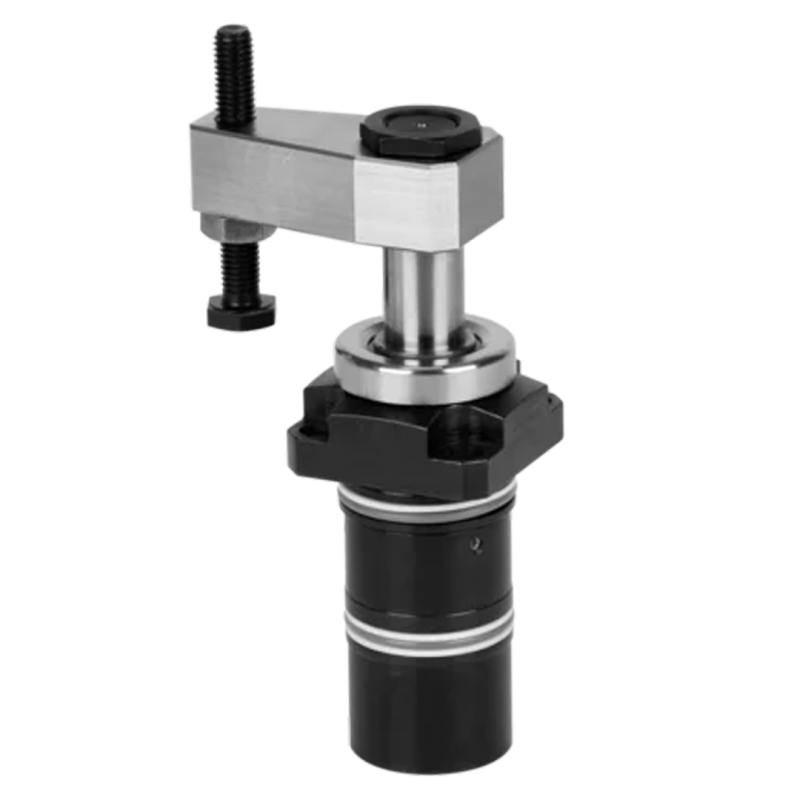

Cartridge Type Swing Clamp with Sturdy Swing Mechanism

Cartridge Type Swing Clamp with Sturdy Swing Mechanism - ROEMHELD B1.852

• Max. operating pressure 350 bar
• Max. clamping force: 6 - 22 kN
• Rod diameter: 16 - 32 mm
• Piston diameter: 23 - 45 mm
• Clamping stroke: 12 - 15 mm
• Max. flow rate: 10 - 57 cm³/s

Advantages:

• 4 sizes available
• Short version without bottom cover
• Minimum flange dimensions
• High clamping force at low pressures
• Sturdy swing mechanism
• Insensitive against high flow rates
• Indexing of the clamping arm in a specified position is possible
• Special swing angle easily realizable
• Standard FKM wiper
• Metallic wiper optional
• Mounting position: any

Application:

Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. Due to the sturdy swing mechanism these swing clamps are particularly suited for:

• Automatic manufacturing systems
• Clamping fixtures with workpiece loading via handling systems
• Transfer lines
• Test systems for motors, gears and axes
• Assembly lines
• Special machine tools

Description:

The hydraulic swing clamp is a pull-type cylinder where a part of the total stroke is used to swing the piston. The favourable area ratio (piston/piston rod) allows high clamping forces already at relatively low oil pressures. For high flow rates the swing speed is limited by an orifice in the clamping port. Thus, uniform clamping of several swing clamps is also possible when oil supply is effected through a common bore. Due to the sturdy swing mechanism the angle position of the clamping arm remains the same after a slight collision with the workpiece during loading or unloading. Also a collision during the clamping process is not critical.
