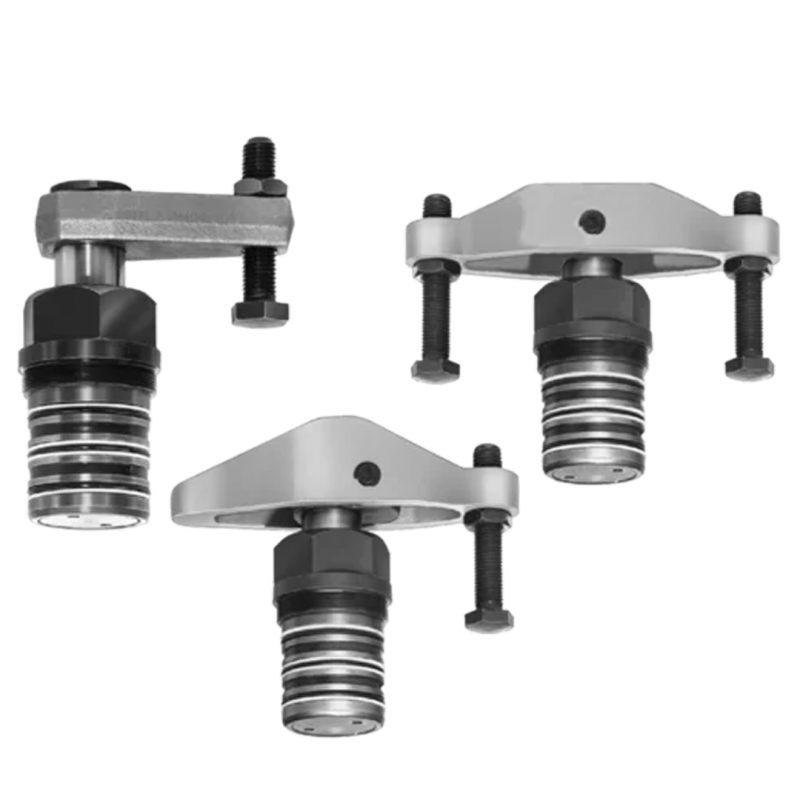

Threaded Body Swing Clamps with Overload Protection Device

Threaded Body Swing Clamps with Overload Protection Device - ROEMHELD B1.892

• Max. operating pressure 500 bar
• Max. clamping force: 2.8 - 41 kN
• Rod diameter: 20 - 50 mm
• Piston diameter: 25 - 63 mm
• Clamping stroke: 11 - 15 mm
• Max. flow rate: 3 - 28 cm³/s

Application:

Hydraulic swing clamps are used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestriced workpiece loading and unloading. Clamping arms and strap type clamps are fastened to the piston rod by means of a taper shank and socket connection.

Function:

This hydraulic clamping element is a pull-type cylinder where a part of the total stroke is used to swing the piston.

Overload protection devise:

An integrated mechanical overload protection device prevents damage to the swing mechanism when striking an object within the 90° rotation, clamping or unclamping alike, or in case of incorrect mounting of the clamping arm.
