Tilting Module KME 100
ROEMHELD M2.201 Tilting module for universal use in assembly and handling processes in the industry
- Max. load 1,000 N
- Electrical operation
- Tilting angle: 0 to 90°
- Max. load: 1000 N
- Max. torque: 230 Nm
- Operations: foot switch or hand panel
Tilting Module KME 100 - ROEMHELD M2.201
- Max. load 1,000 N
- Electrical operation
- Tilting angle: 0 to 90°
- Max. load: 1000 N
- Max. torque: 230 Nm
- Operations: foot switch or hand panel
Advantages:
- Easy tilting and fixing of components in angle positions 0° and 90°
- Holds self-locking in any intermediate position
- High load potential
- Good accessibility from all sides
- Easily combinable with other modulog modules
- Ergonomic working conditions
- Safe and quick working
Application:
Tilting module for universal use in assembly and handling processes in the industry.
Principal use:
- Assembly of car seats
- Motor assembly
- Plant construction
- Construction of power units
Description:

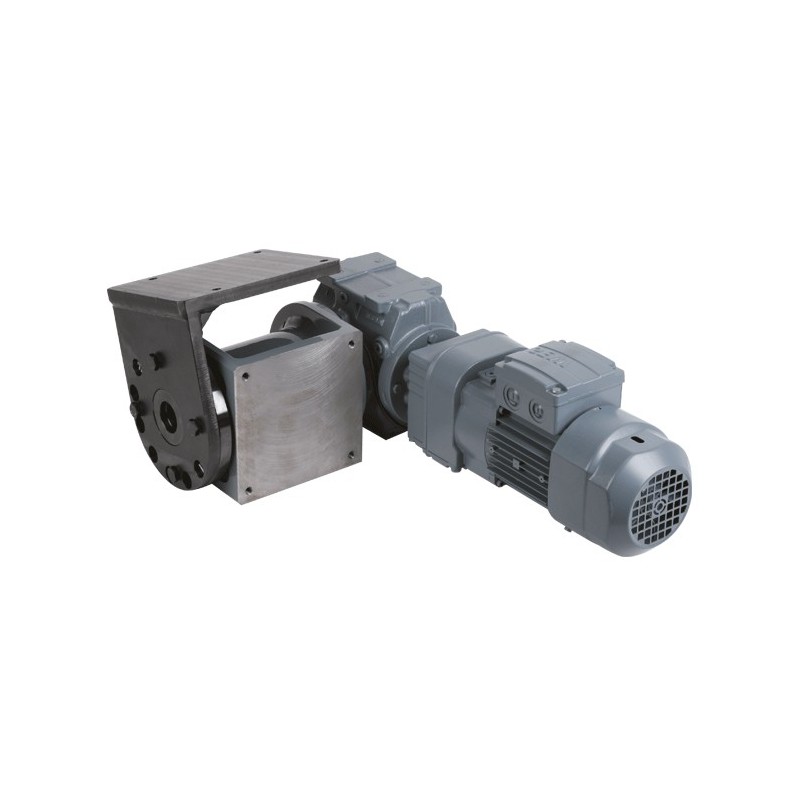

The electric tilting module is equipped with a worm gear motor and offers the possibility to tilt components by up to 90° and to hold them in position in non-actuated mode. The desired position is approached by pressing a hand panel or foot switch in touch control. When the push-button is released, the tilting module stops in any desired position. The tilting module is automatically stopped by sensors in the positions 0° and 90°. With the electric tilting module, assembly processes can be realised quickly and efficiently. Ergonomic working conditions are fulfilled.
