Intensifier System M-HC6 (up to 500 bar)

Minibooster M-HC6

  • PIN: 20 - 300 bar (inlet pressure)
  • PH: 500 bar (outlet pressure)
  • Q: 100 L/min
  • Weight: 23 kg
Print page

Description
Downloads
M-HC6
M-HC6

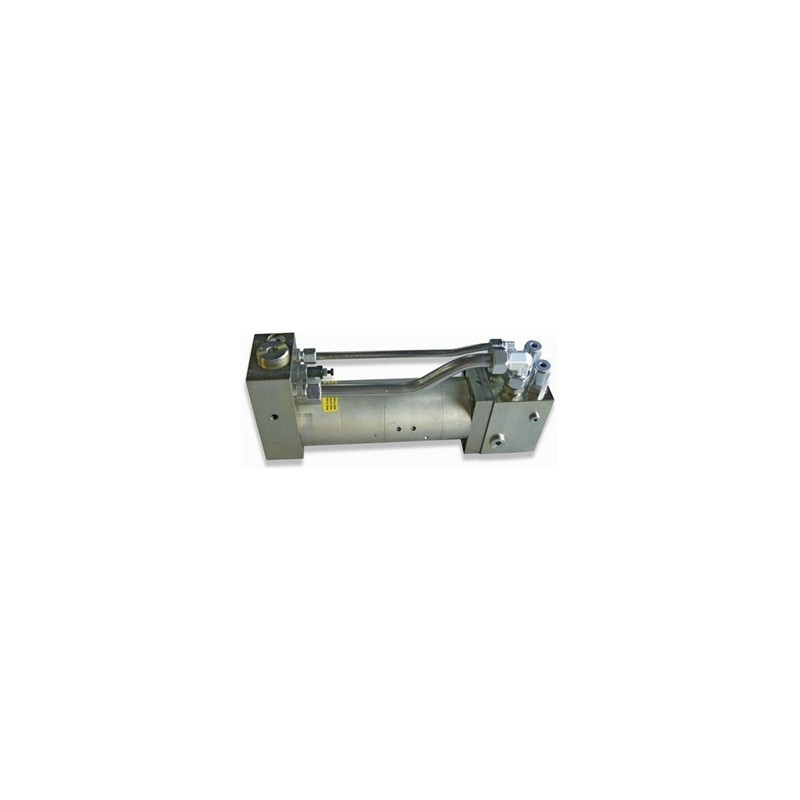

Minibooster M-HC6 (up to 500 bar)

The M-HC6D is a complete, ready-to-install, high-flow and high-pressure intensifier system. The system is based on the miniBOOSTER HC6D intensifier and includes integral high-flow bypass and isolation valves.

Applications:

The system is ideal for mobile attachments to take full advantage of the pump capacity for fast forward movement of the hydraulic cylinder(s) and to boost pressure, when needed to achieve intensified (crushing/clamping) pressures. Typical Applications: Mobile attachments (Cutters - Crushers - Shears) Injection molding machines and Hydraulic presses.

  • Extra tough
  • System is shipped completely assembled and factory tested ready for installation
  • Provides high flow and high pressure
  • Available with several intensification ratios
  • Optional and multiple connection arrangements

Mounting options:

The M-HC6 intensifier system can be tailor-made to match your application with the following options.

  • M-HC6-001
    A variant designed to be flanged directly to the high-pressure cylinder. Supplied with 2 extra Pump P1 and Tank T1 ports (3/8” BSPPP ports)
  • M-HC6-002
    A variant designed to be flanged directly to the high-pressure cylinder. Supplied with 2 extra Pump P1 and Tank T1 ports (1/2” BSPPP ports)
  • M-HC6-003
    A variant with a 1/2” BSPPP high-pressure port for tube or hose mounting
  • M-HC6-004
    A variant with a 1/2” BSPPP high-pressure port for tube or hose mounting and a pressure relief valve on the high-pressure side, eliminating critical pressure peaks from the high-pressure cylinder

Please send us your application needs in order to receive a proposal.

Functions Model M-HC6-001 / -002 / -003

M-HC6 Function Diagram

Functions Model M-HC6-004

M-HC6 004 Function Diagram
