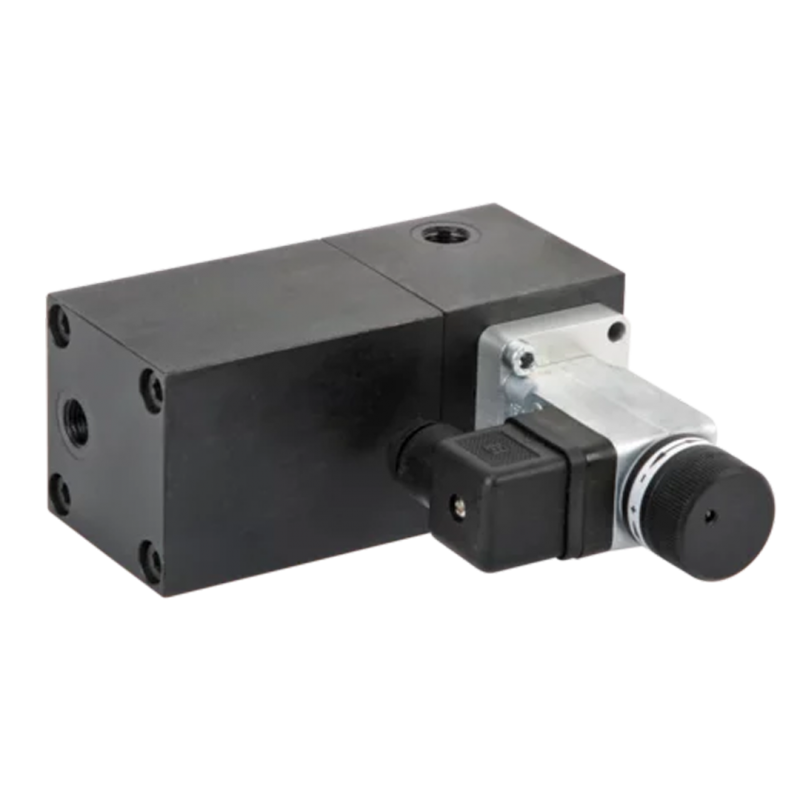

Hydraulic Intensifier 21cm³
ROEMHELD D8.753 Single and Double acting Hydraulic Intensifiers
- Intensification ratio 1:4
- Maximum operating pressure 500/125 bar
- Single and double acting
- Intensification ration: 1:4
- Intensification volume: 21 cm³
- Maximum flow rate: 8 l/min (low-pressure side)
- Maximum operating pressure 125 - 130 bar (low-pressure side)
This ROEMHELD Hydraulic Intensifier convert a hydraulic pressure on the primary side (input) into a higher pressure on the secondary side (output). This enables the use of the comparatively low pressure of machine tool hydraulics to pressurise a hydraulic cylinder with quadruple pressure.
Hydraulic Intensifier 21cm³ - ROEMHELD D8.753
- Intensification ratio 1:4
- Max. operating pressure 500/125 bar
- Single and double acting
- Intensification ration: 1:4
- Intensification volume: 21 cm³
- Max. flow rate: 8 l/min (low-pressure side)
- Max. operating pressure 125 - 130 bar (low-pressure side)

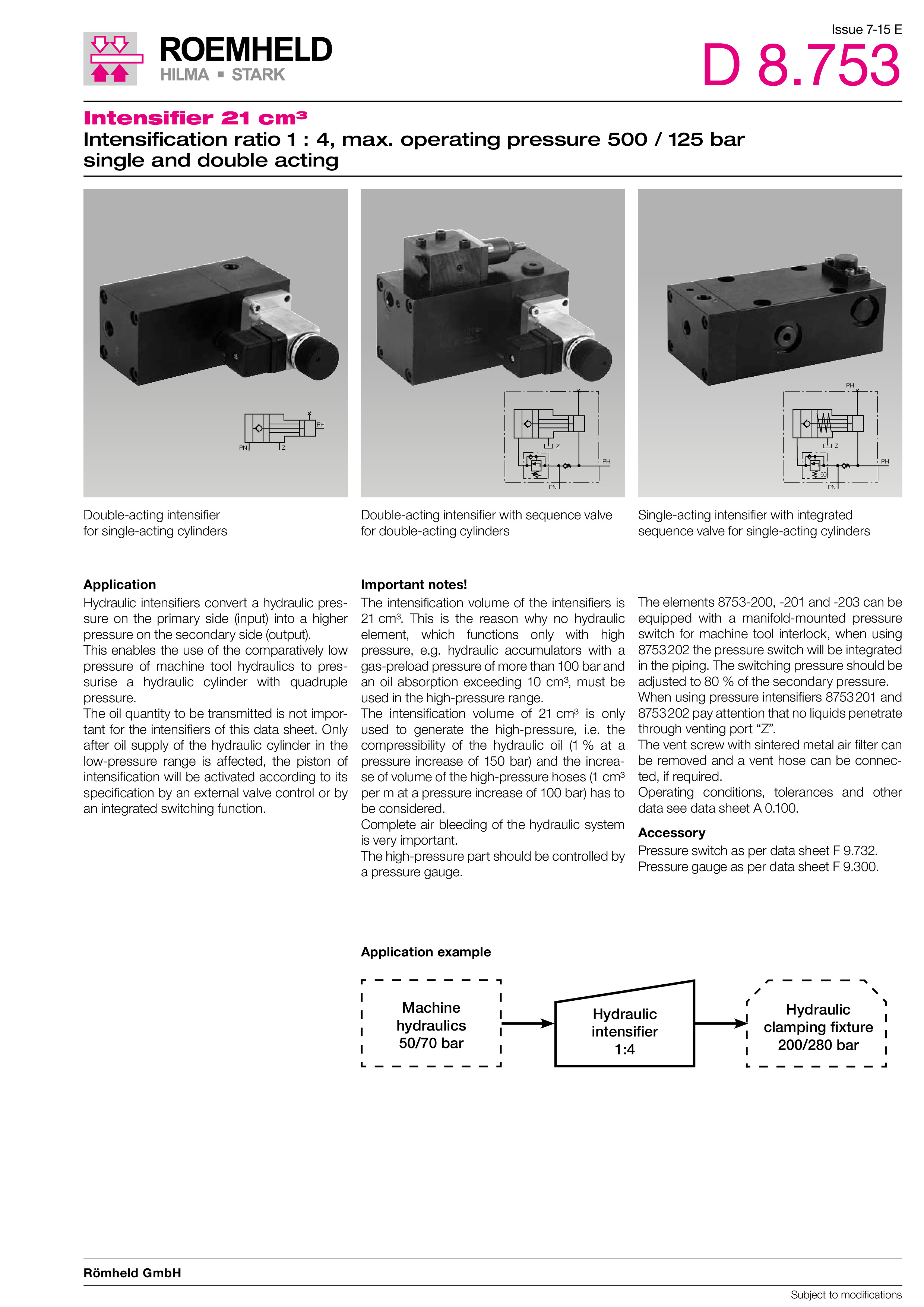

Description:
ROEMHELD Hydraulic Intensifiers [D8.753] convert a hydraulic pressure on the primary side (input) into a higher pressure on the secondary side (output). This enables the use of the comparatively low pressure of machine tool hydraulics to pressurise a hydraulic cylinder with quadruple pressure.
The oil quantity to be transmitted is not important for the intensifiers of this data sheet. Only after oil supply of the hydraulic cylinder in the low-pressure range is affected, the piston of intensification will be activated according to its specification by an external valve control or by an integrated switching function.
