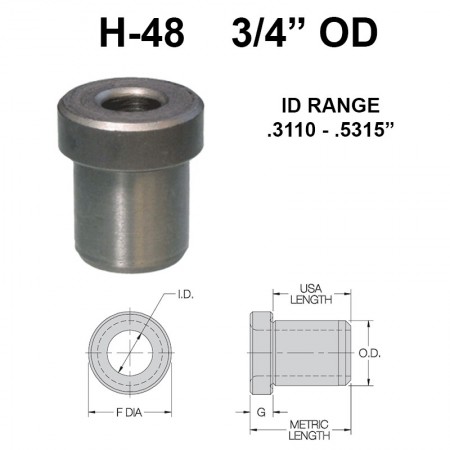

Carr Lane Head Press Fit Bushings 3/4 OD
- OD - 3/4"
- ID RANGE - .3110 - .5315"
- Imperial sizes available with a variety of Lengths
£15.53
£18.64 Inc. VAT
Carr Lane
Carr Lane Manufacturing is committed to being the world's preferred source of standard tooling components. With a long history of providing innovative and high-quality products to industries such as aerospace, automotive, defence, marine, OEM, pharmaceutical, manufacturing and more. By meeting and surpassing their customers' expectations for top quality and excellent service every day, Carr Lane's recognition as world leader for tooling components is evident.
With a vast catalogue of standard and custom components, including toggle clamps, tooling blocks, alignment pins, ball lock pins, hoist rings, precision drill jig bushings, fixture bases, quick change fixturing, hydraulic clamps and various other work holding and positioning solutions. Carr Lane's commitment to precision, durability and custom options has made it a trusted partner for businesses seeking reliable and efficient tools to streamline their manufacturing and assembly processes.
As the European arm of the Carr Lane global supply network, Hyquip gives you access to over 10,000 components held in stock, with many more parts, including custom sizes, available on request. We proudly serve over 90% of all orders within 5 working days from our UK distribution centre.
HYQUIP - Your Source For Carr Lane Tooling Components
Known primarily for jig & fixture components, Carr Lane Manufacturing offers more than 100,000 products including quick change tooling plates & accessories, hoist rings, toggle clamps, handles, knobs, ball & spring plungers, threaded inserts, clamp straps, drill bushings, alignment pins, fixture bases, & power workholding devices.
- From alignment pins and clamp assemblies to tooling blocks and power workholding solutions, we always have your basics in stock.
- For special requirements, HYQUIP will gladly customize or make tooling components to your specifications.
Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors. If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office NOW +44 (0)1204 699959
Showing 265 to 276 of 316 items
Carr Lane Press Fit Bushings 5/8 OD
- OD - 5/8"
- ID RANGE - .3110 - .5000"
- Imperial sizes available with a variety of Lengths
£9.78
£11.74 Inc. VAT
Carr Lane Heavy Duty Ball Lock Pins - Ring handle
Carr Lane ring handle heavy duty ball lock pins are one of four variations within the heavy-duty ball lock pin range. The heavy-duty ball lock pins act similarly to standard ball lock pins with the difference being that they have a larger, heavier handle for rough service. Available in pin diameters from 3/16 to 1/2" (5 to 12mm in metric), in stainless steel only. Pins with special grip lengths up to 12” (300mm) and other special features are available with additional lead time. If you wish to configure your own Heavy duty ball lock pins do not hesitate to contact our sales team.
- Available in stainless steel only
- Available in pin diameters from 3/16 to 1/2" (5 to 12mm in metric)
- Available in both metric and imperial sizing
£0.00
£0.00 Inc. VAT
Carr Lane Tapered-Nose Clamp Strap Assemblies
Clamp Straps and a choice of either Knurled Head Screw or Clamp Rest Assembly
£18.72
£22.46 Inc. VAT
Carr Lane Slotted-Heel Gooseneck Clamp Straps
Carr Lane Slotted-Heel Gooseneck Clamp Straps are engineered to recess the clamping nut, offering a compact overall profile. These clamp straps feature a slot underneath, allowing them to slide straight back for easy loading. Each side has a rear indentation for a secure grip when retracting the clamp. The Slotted-Heel Gooseneck Clamp Straps displayed here are designed for the Standard System MF40 (1/2-13 stud size). They can be assembled into either a low or tall clamp assembly by selecting the appropriate short or long Clamping Studs and Clamp Rests.
- Metric and Imperial sizes available
- Thread - 1/2 or M12
- Length - 4.92 - 5.91
£44.87
£53.84 Inc. VAT
Carr Lane Slip/Fixed Renewable Bushings 1-3/8 OD
- OD - 1-3/8"
- ID RANGE - .7188 - 1.0625"
- Imperial sizes with a variety of lengths
£34.45
£41.34 Inc. VAT

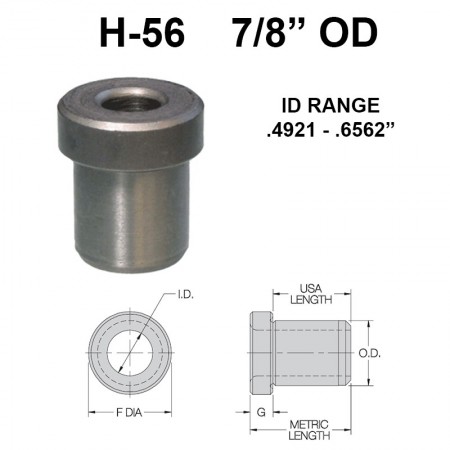

Carr Lane Head Press Fit Bushings 7/8 OD
Carr Lane Head Press Fit Bushings are a variation of standard press fit bushings, featuring a head designed to withstand significant axial loads. These bushings are permanently installed into the jig plate and are typically used for single-operation drilling or reaming, where the bushings are not intended to be replaced throughout the tooling's lifespan. The head of these bushings can either remain exposed or be recessed by counterboring the installation hole.
- OD - 7/8"
- ID RANGE - .4921- .6562"
- Imperial sizes available with a variety of Lengths
£19.48
£23.38 Inc. VAT
Carr Lane Press Fit Bushings 3/4 OD
- OD - 3/4"
- ID RANGE - .3110 - .6250"
- Imperial sizes available with a variety of Lengths
£10.14
£12.17 Inc. VAT
Carr Lane Miniature Stainless Steel Slotted-Heel Clamp Straps
Carr lane miniature stainless steel slotted-heel clamp straps are equipped with a radius nose to provide firm workpiece contact. These clamp straps feature a slot underneath to slide straight back for easy loading. These are available to accommodate stud sizes ranging from #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually or in a complete clamp assembly. The available assemblies are assembly with flange nut, assembly with spherical nut & washer, assembly with knurled knob and assembly with knurled knob & spherical washer.
- Thread - #10-32 - 3/8-16
- Length - 1-1/2 - 4
- Internal Diameter - 21/32 - 1-13/16
- Available with four assembly options to chose from
£43.38
£52.06 Inc. VAT

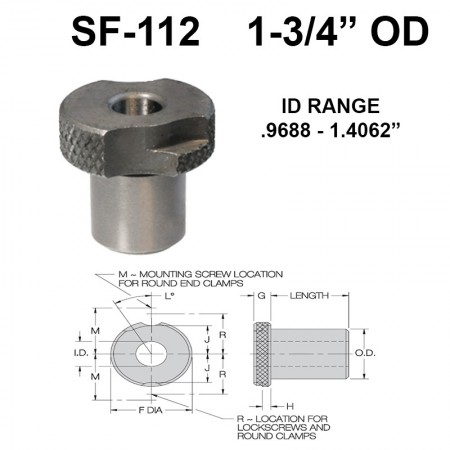

Carr Lane Slip/Fixed Renewable Bushings 1-3/4 OD
- OD - 1-3/4"
- ID RANGE - .9688 - 1.4062"
- Imperial sizes with a variety of lengths
£41.02
£49.22 Inc. VAT

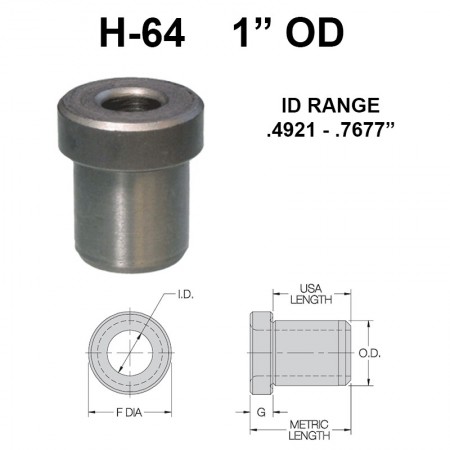

Carr Lane Head Press Fit Bushings 1 OD
Carr Lane Head Press Fit Bushings are a variation of standard press fit bushings, featuring a head designed to withstand significant axial loads. These bushings are permanently installed into the jig plate and are typically used for single-operation drilling or reaming, where the bushings are not intended to be replaced throughout the tooling's lifespan. The head of these bushings can either remain exposed or be recessed by counterboring the installation hole.
- OD - 1"
- ID RANGE - .4921 - .7677"
- Imperial sizes available with a variety of Lengths
£20.10
£24.12 Inc. VAT

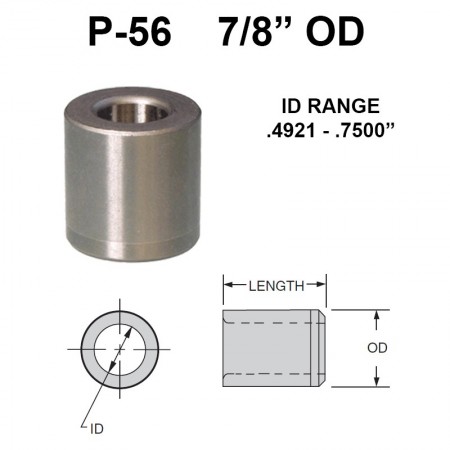

Carr Lane Press Fit Bushings 7/8 OD
Carr Lane Press fit bushings are the most common yet most cost-effective type of drill bushing in the range. P-style drill bushings are the most common and cost-effective type of drill bushing. These bushings are permanently installed into the jig plate, typically flush with the top surface. Press fit bushings (P- style) bushings are primarily used for single-operation drilling or reaming, particularly when there is no expectation of replacing the bushings throughout the tooling's lifespan. They can be mounted closer together than headed bushings but provide less resistance to heavy axial loads. These are available in both ground and unground variants. Standard bushes are listed below however configurations are available on enquiry.
- OD - 7/8"
- ID RANGE - .4921 - .7500"
- Imperial sizes available with a variety of Lengths
£14.38
£17.26 Inc. VAT
