Carr Lane Slotted-Heel Gooseneck Clamp Straps

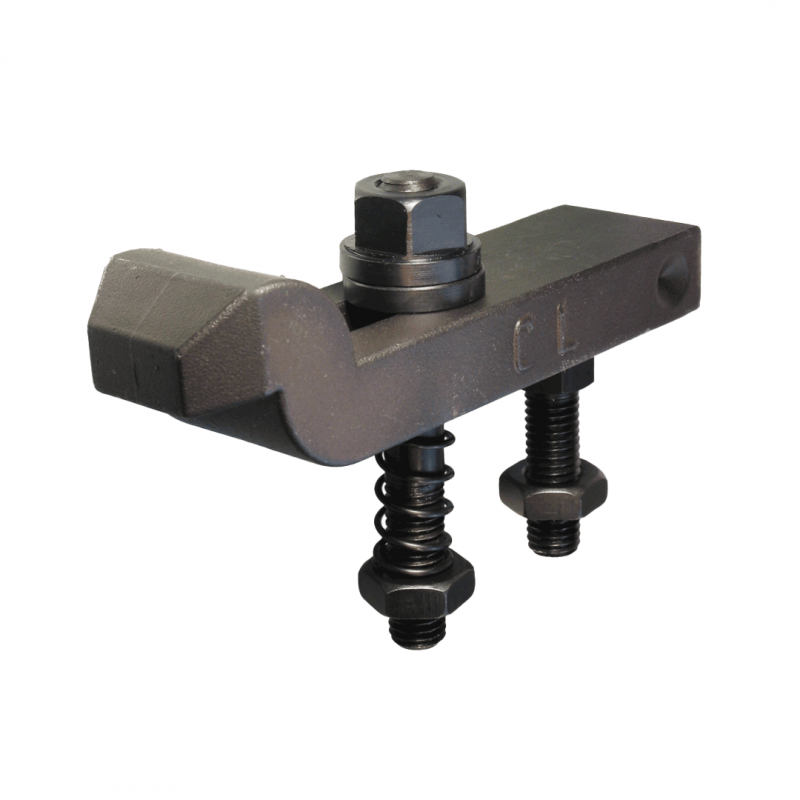

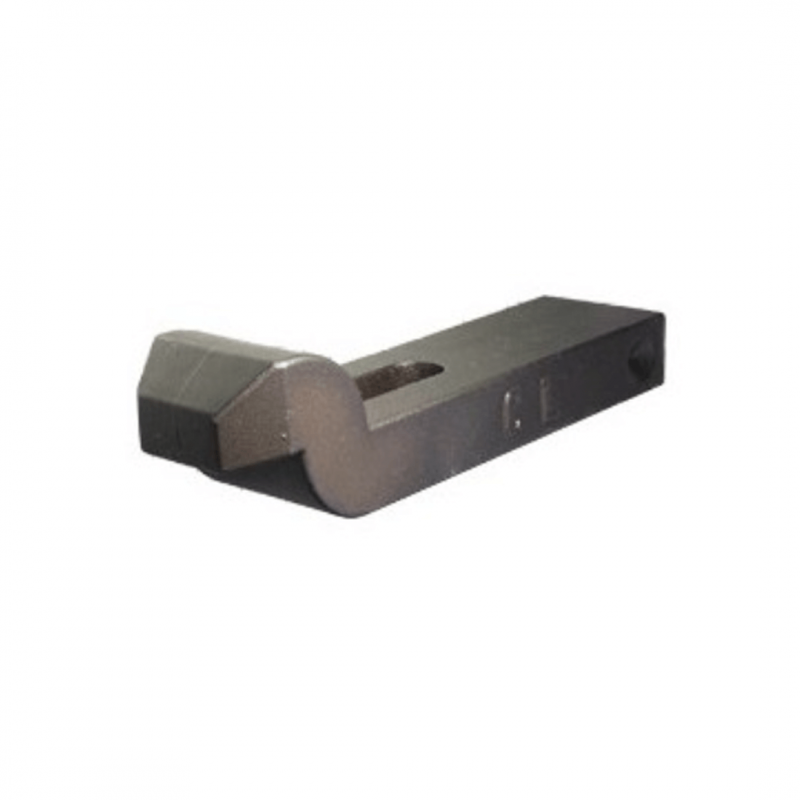

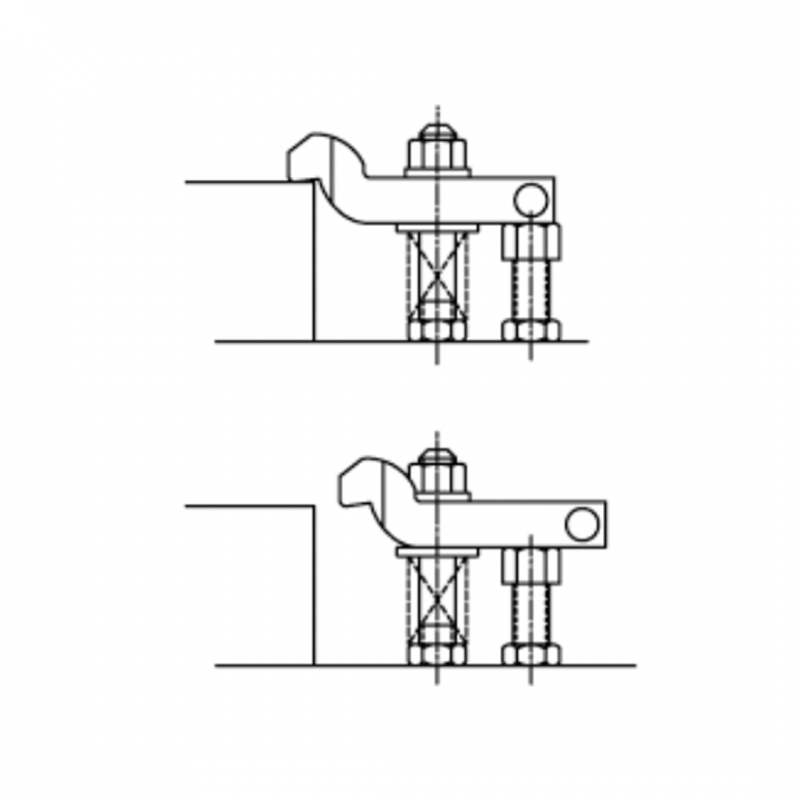

Carr Lane Slotted-Heel Gooseneck Clamp Straps are engineered to recess the clamping nut, offering a compact overall profile. These clamp straps feature a slot underneath, allowing them to slide straight back for easy loading. Each side has a rear indentation for a secure grip when retracting the clamp. The Slotted-Heel Gooseneck Clamp Straps displayed here are designed for the Standard System MF40 (1/2-13 stud size). They can be assembled into either a low or tall clamp assembly by selecting the appropriate short or long Clamping Studs and Clamp Rests.
- Metric and Imperial sizes available
- Thread - 1/2 or M12
- Length - 4.92 - 5.91
| Part Number | Material Number | Type | Metric or Imperial | Length | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CL-85-GCS | Strap | Imperial | 4.92 | Not Threaded | £46.67 £56.00 Inc. VAT |
|
|
| CLM-85-GCSA-1 | Spherical Nut and Washer Assembly | Metric | 5.91 | 1/2 or M12 | £69.04 £82.85 Inc. VAT |
|
|
| CL-85-GCSA-1 | Spherical Nut and Washer Assembly | Imperial | 5.91 | 1/2 or M12 | £62.39 £74.87 Inc. VAT |
|
|
| CL-85-GCSA-2 | Flange Nut Assembly | Imperial | 5.91 | 1/2 or M12 | £60.65 £72.78 Inc. VAT |
|
|
| CLM-85-GCSA-2 | Flange Nut Assembly | Metric | 5.91 | 1/2 or M12 | £73.73 £88.48 Inc. VAT |
|
|
| CLM-85-GCSA-4 | Hand Knob and Spherical Washer Assembly | Metric | 5.91 | 1/2 or M12 | £72.60 £87.12 Inc. VAT |
|
|
| CL-85-GCSA-4 | Hand Knob and Spherical Washer Assembly | Imperial | 5.91 | 1/2 or M12 | £66.80 £80.16 Inc. VAT |
|
|
| CL-85-GCSA-5 | Acorn Nut and Spherical Washer Assembly | Imperial | 5.91 | 1/2 or M12 | £65.11 £78.13 Inc. VAT |
|
|
| CLM-85-GCSA-7 | Cam Handle with Spherical Washer Assembly | Metric | 5.91 | 1/2 or M12 | £142.84 £171.41 Inc. VAT |
|
|
| CL-85-GCSA-7 | Cam Handle with Spherical Washer Assembly | Imperial | 5.91 | 1/2 or M12 | £120.32 £144.38 Inc. VAT |
|
Carr Lane Slotted-Heel Gooseneck Clamp Straps
Carr Lane Slotted-Heel Gooseneck Clamp Straps are engineered to recess the clamping nut, offering a compact overall profile. These clamp straps feature a slot underneath, allowing them to slide straight back for easy loading. Each side has a rear indentation for a secure grip when retracting the clamp. The Slotted-Heel Gooseneck Clamp Straps displayed here are designed for the Standard System MF40 (1/2-13 stud size). They can be assembled into either a low or tall clamp assembly by selecting the appropriate short or long Clamping Studs and Clamp Rests.
- Metric and Imperial sizes available
- Thread - 1/2 or M12
- Length - 4.92 - 5.91
