Carr Lane Miniature Stainless Steel Slotted-Heel Clamp Straps

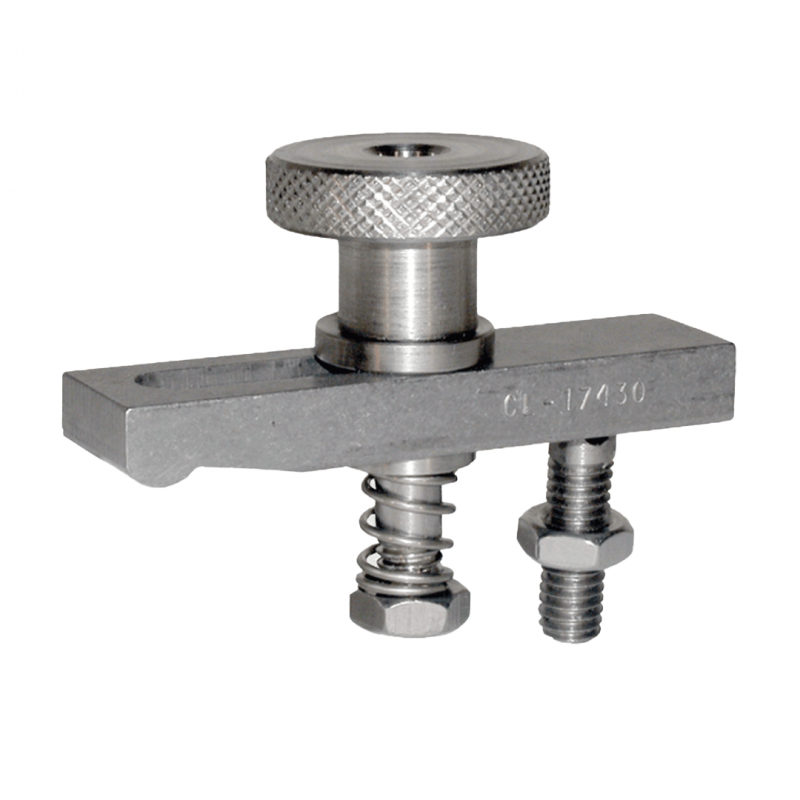

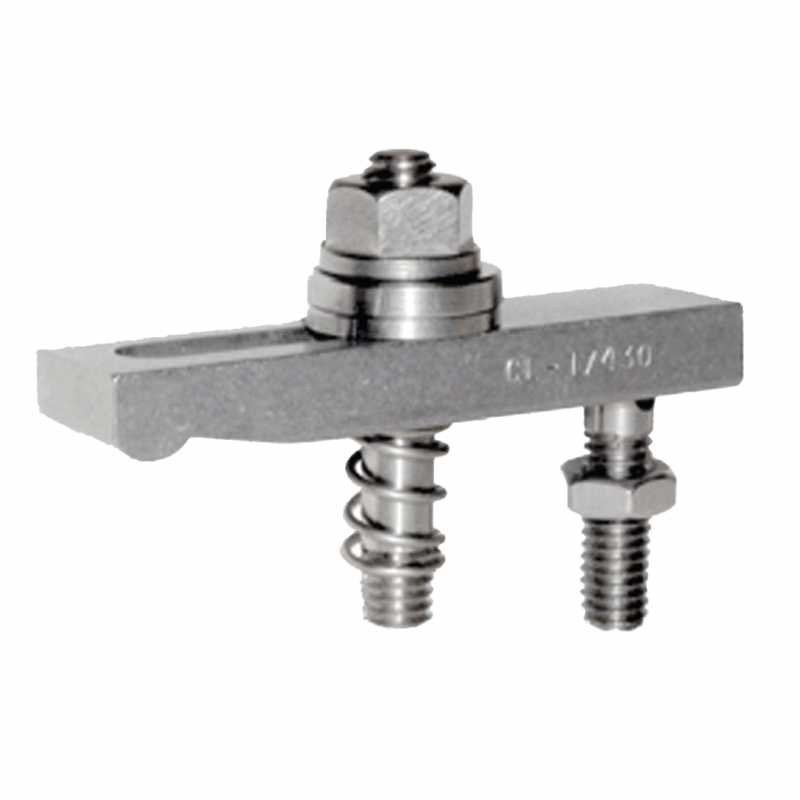

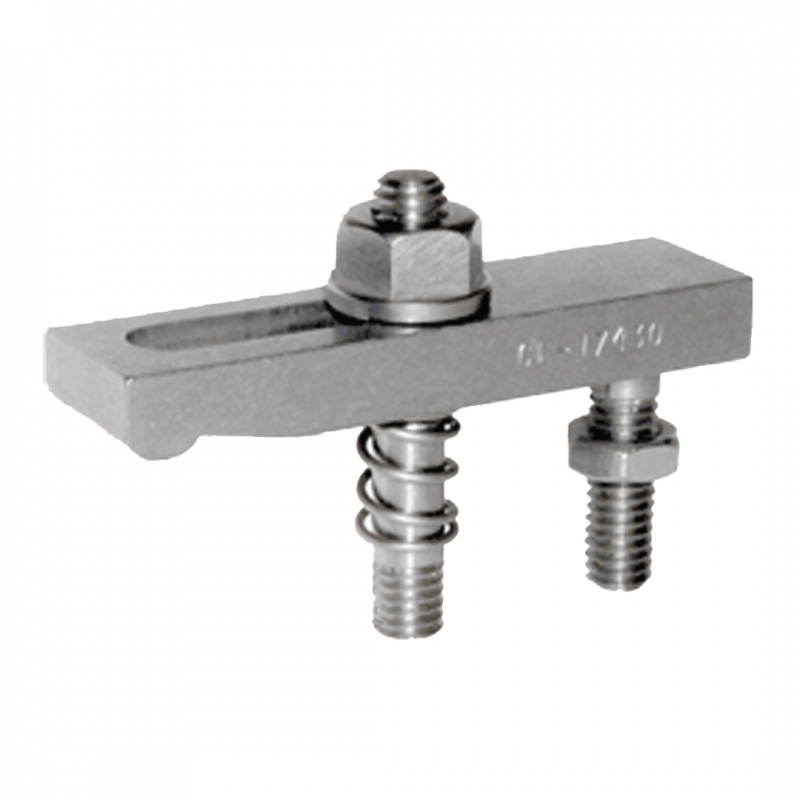

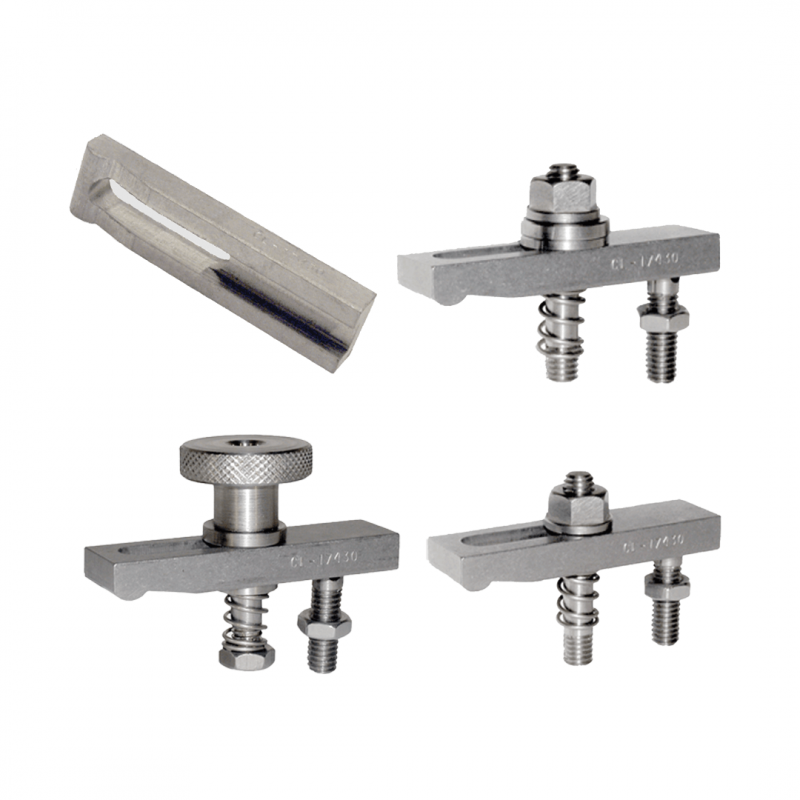

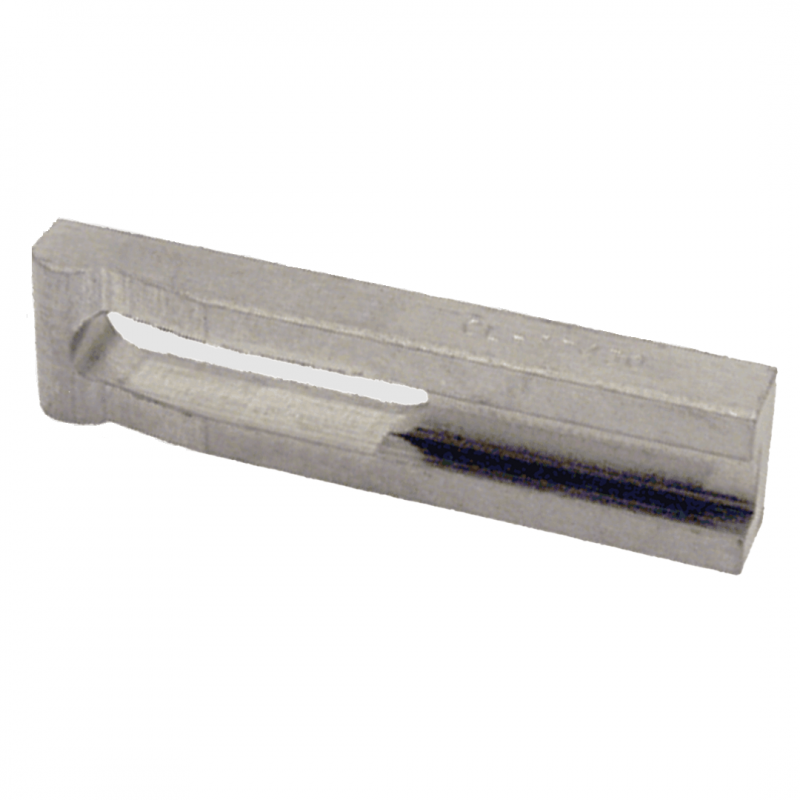

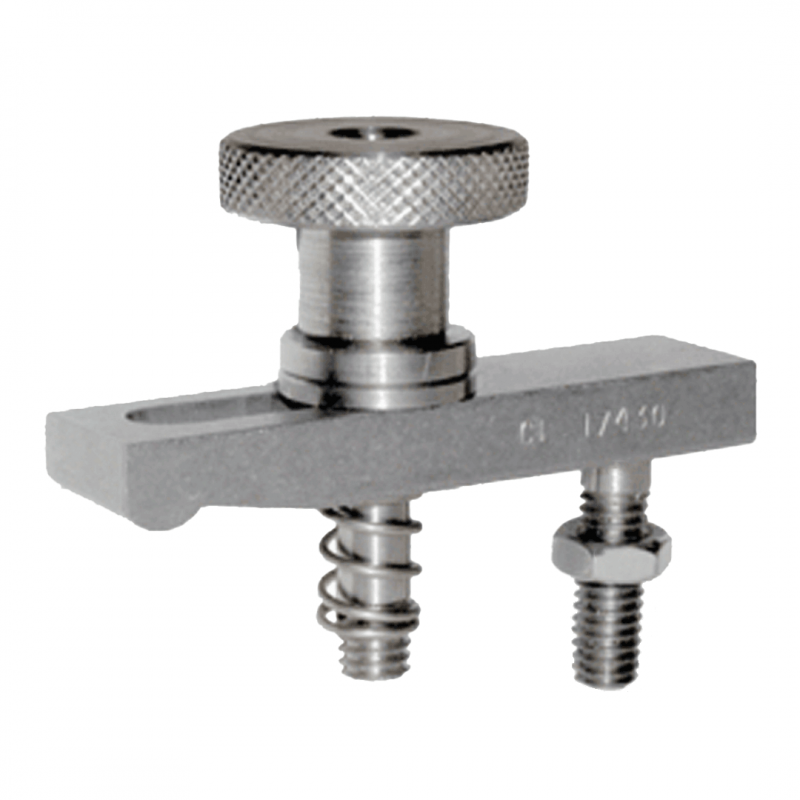

Carr lane miniature stainless steel slotted-heel clamp straps are equipped with a radius nose to provide firm workpiece contact. These clamp straps feature a slot underneath to slide straight back for easy loading. These are available to accommodate stud sizes ranging from #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually or in a complete clamp assembly. The available assemblies are assembly with flange nut, assembly with spherical nut & washer, assembly with knurled knob and assembly with knurled knob & spherical washer.

  • Thread - #10-32 - 3/8-16
  • Length - 1-1/2 - 4
  • Internal Diameter - 21/32 - 1-13/16
  • Available with four assembly options to chose from
Print page

Products
Downloads
Description
Part Number Material Number Assembly Options Length Thread Internal Diameter Price Add to Parts List
CL-2715-4 CL-2715-4 Knurled Knob and Spherical Washer 1-1/2 #10-32 21/32 £48.18
£57.82 Inc. VAT
CL-3040-4 CL-3040-4 Knurled Knob and Spherical Washer 4 3/8-16 1-13/16 £95.35
£114.42 Inc. VAT
CL-2925-4 CL-2925-4 Knurled Knob and Spherical Washer 2-1/2 5/16-18 1-3/32 £72.46
£86.95 Inc. VAT
CL-2825-4 CL-2825-4 Knurled Knob and Spherical Washer 2-1/2 1/4-20 1-1/8 £65.22
£78.26 Inc. VAT
CL-2925-3 CL-2925-3 Knurled Knob 2-1/2 5/16-18 1-3/32 £67.30
£80.76 Inc. VAT
CL-2825-3 CL-2825-3 Knurled Knob 2-1/2 1/4-20 1-1/8 £53.89
£64.67 Inc. VAT
CL-2715-3 CL-2715-3 Knurled Knob 1-1/2 #10-32 21/32 £45.24
£54.29 Inc. VAT
CL-3040-3 CL-3040-3 Knurled Knob 4 3/8-16 1-13/16 £85.72
£102.86 Inc. VAT
CL-2715-2 CL-2715-2 Spherical Nut and Washer 1-1/2 #10-32 21/32 £50.34
£60.41 Inc. VAT
CL-3040-2 CL-3040-2 Spherical Nut and Washer 4 3/8-16 1-13/16 £85.91
£103.09 Inc. VAT
CL-2925-2 CL-2925-2 Spherical Nut and Washer 2-1/2 5/16-18 1-3/32 £68.38
£82.06 Inc. VAT
CL-2825-2 CL-2825-2 Spherical Nut and Washer 2-1/2 1/4-20 1-1/8 £64.02
£76.82 Inc. VAT
CL-2825-1 CL-2825-1 Flange Nut 2-1/2 1/4-20 1-1/8 £52.79
£63.35 Inc. VAT
CL-2720-1 CL-2720-1 Flange Nut 2 #10-32 29/32 On Enquiry
CL-2715-1 CL-2715-1 Flange Nut 1-1/2 #10-32 21/32 £46.85
£56.22 Inc. VAT
CL-2925-1 CL-2925-1 Flange Nut 2-1/2 5/16-18 1-3/32 £61.13
£73.36 Inc. VAT
CL-3040-1 CL-3040-1 Flange Nut 4 3/8-16 1-13/16 £78.55
£94.26 Inc. VAT

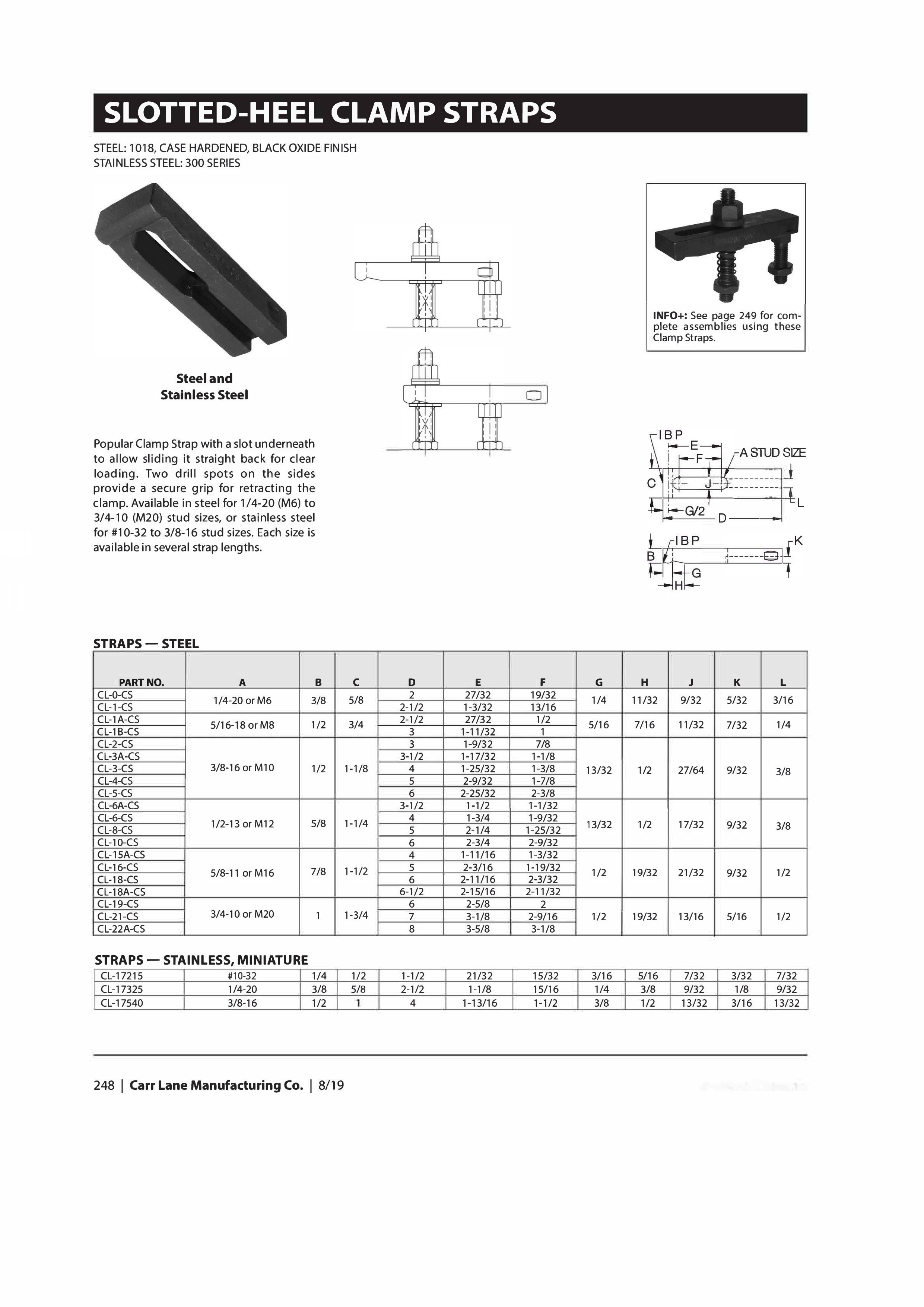

Carr Lane Miniature Stainless Steel Slotted-Heel Clamp Straps datasheet

Carr Lane Miniature Stainless Steel Slotted-Heel Clamp Straps

Carr lane miniature stainless steel slotted-heel clamp straps are equipped with a radius nose to provide firm workpiece contact. These clamp straps feature a slot underneath to slide straight back for easy loading. These are available to accommodate stud sizes ranging from #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually or in a complete clamp assembly. The available assemblies are assembly with flange nut, assembly with spherical nut & washer, assembly with knurled knob and assembly with knurled knob & spherical washer.

  • Thread - #10-32 - 3/8-16
  • Length - 1-1/2 - 4
  • Internal Diameter - 21/32 - 1-13/16
  • Available with four assembly options to chose from
