Carr Lane Tapered-Nose Clamp Strap Assemblies
Clamp Straps and a choice of either Knurled Head Screw or Clamp Rest Assembly
Products
Downloads
Description
| Part Number | Material Number | Type | Length | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-20535 | Strap | 3-1/2 | 3/8-16 | £36.61 £43.93 Inc. VAT |
|
|
| CL-20215 | Strap | 1-1/2 | #10-32 | £20.22 £24.26 Inc. VAT |
|
|
| CL-20220 | Strap | 2 | #10-32 | £21.84 £26.21 Inc. VAT |
|
|
| CL-20320 | Strap | 2 | 1/4-20 | £19.75 £23.70 Inc. VAT |
|
|
| CL-20325 | Strap | 2-1/2 | 1/4-20 | £25.18 £30.22 Inc. VAT |
|
|
| CL-20425 | Strap | 2-1/2 | 5/16-18 | £32.29 £38.75 Inc. VAT |
|
|
| CL-3915 | Knurled Head Screw Assembly | 1-1/2 | #10-32 | £60.71 £72.85 Inc. VAT |
|
|
| CL-3920 | Knurled Head Screw Assembly | 2 | #10-32 | £57.06 £68.47 Inc. VAT |
|
|
| CL-4020 | Knurled Head Screw Assembly | 2 | 1/4-20 | £55.90 £67.08 Inc. VAT |
|
|
| CL-4025 | Knurled Head Screw Assembly | 2-1/2 | 1/4-20 | £58.43 £70.12 Inc. VAT |
|
|
| CL-4125 | Knurled Head Screw Assembly | 2-1/2 | 5/16-18 | £60.97 £73.16 Inc. VAT |
|
|
| CL-4235 | Knurled Head Screw Assembly | 3-1/2 | 3/8-16 | £77.11 £92.53 Inc. VAT |
|
|
| CL-3920-1 | Clamp Rest Assembly | 2 | #10-32 | £46.44 £55.73 Inc. VAT |
|
|
| CL-4020-1 | Clamp Rest Assembly | 2 | 1/4-20 | £45.53 £54.64 Inc. VAT |
|
|
| CL-4025-1 | Clamp Rest Assembly | 2-1/2 | 1/4-20 | £48.10 £57.72 Inc. VAT |
|
|
| CL-4125-1 | Clamp Rest Assembly | 2-1/2 | 5/16-18 | £55.36 £66.43 Inc. VAT |
|
|
| CL-4235-1 | Clamp Rest Assembly | 3-1/2 | 3/8-16 | £72.46 £86.95 Inc. VAT |
|
|
| CL-3915-1 | Clamp Rest Assembly | 1-1/2 | #10-32 | £45.16 £54.19 Inc. VAT |
|

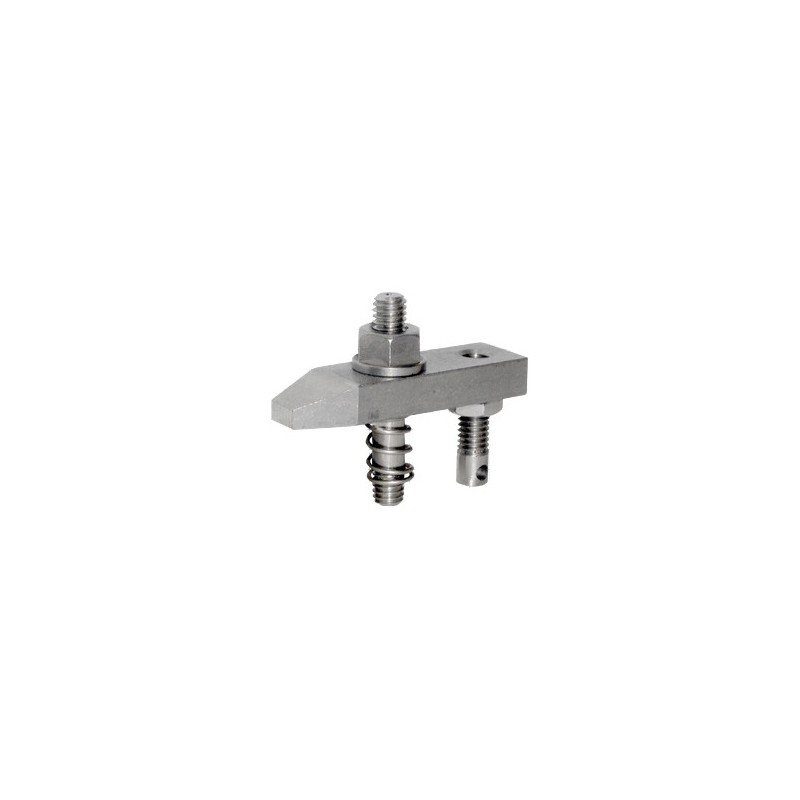

Carr Lane Tapered-Nose Clamp Strap Assemblies

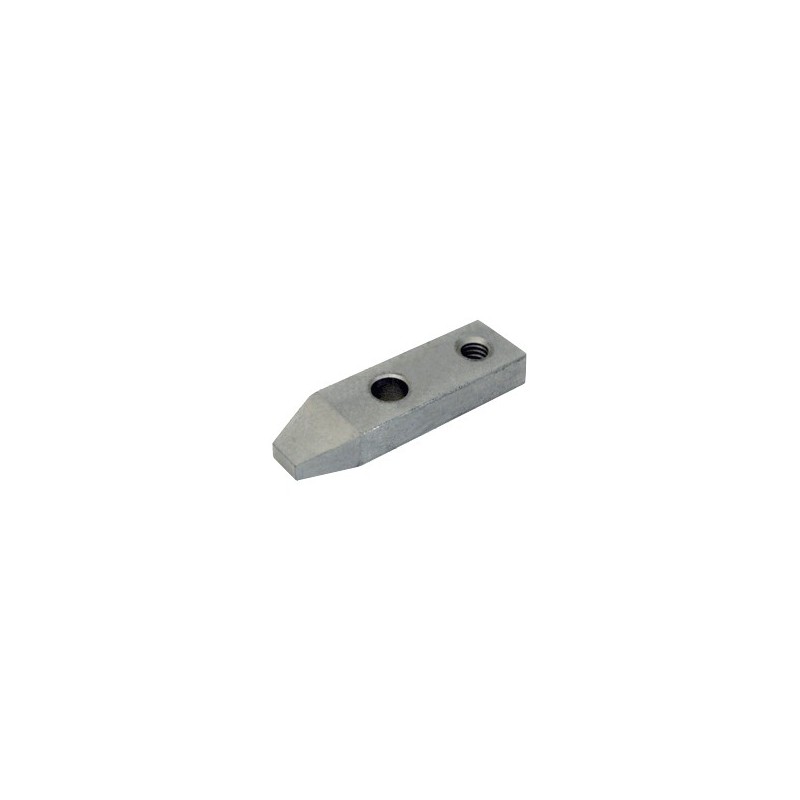

Tapered-Heel Clamp Strap with a tapered nose for clampng in tight spaces, available in stainless steel. A complete clamp-strap assembly using one of the straps and standard assembly includes a Knurled-Head Screw. Fixture stud has a thread-locking interferance thread at the bottom end to install permanently in a fixture plate.
Options:
- #10-32 to 3/8-16 stud sizes
- Range of threads and lengths
- Clamp Straps and a choice of either Knurled Head Screw or Clamp Rest Assembly
To order with a rear Clamp Rest instead, add "-1" to the part number eg CL-3915-1.
