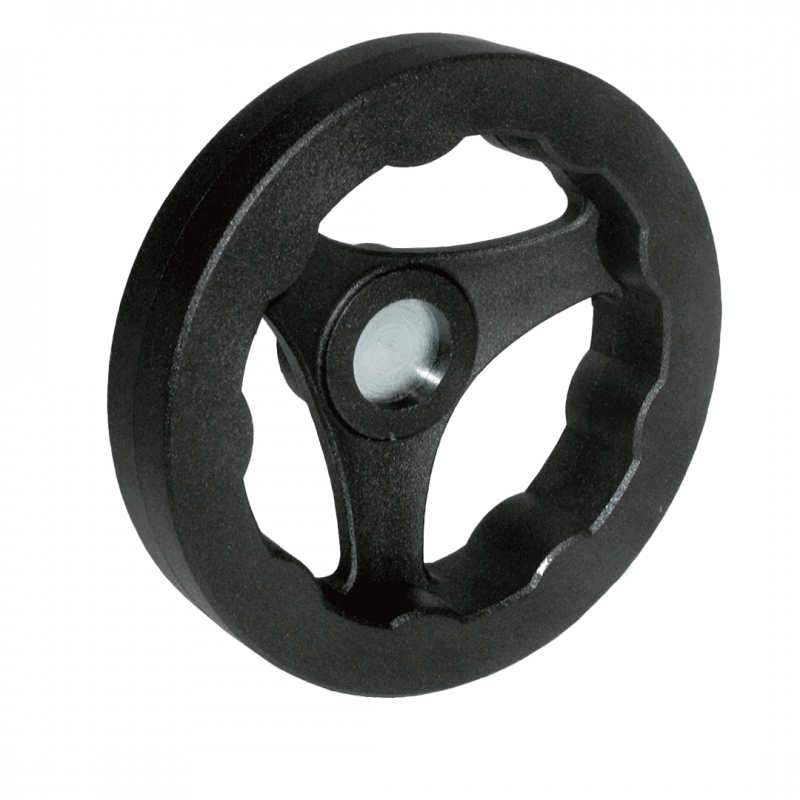

HYQUIP supply the full range of Carr Lane Hand wheels which are available in various different designs and finishes. These finishes include thermoplastic, phenolic plastic, aluminium stainless steel and cast iron. They also offer a wide range of design options which include straight spoke, two-spoke, two spoke square, angled-spoke, solid square, and solid disc shaped machine handwheels. These hand wheels are offered in various sizes depended on the selected model.
| Part Number | Material Number | Type | External Diameter | Material | Tapped | Internal Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| CL-62-HWAS-P | Angled-Spoke Square Design | 6.30 | Thermoplastic | Tapped for Foldable Revolving Handle | 1.26 | On Enquiry | ||
| CL-52-HWAS-P | Angled-Spoke Square Design | 4.92 | Thermoplastic | Tapped for Foldable Revolving Handle | .94 | On Enquiry | ||
| CL-8-HWSF | Straight-Spoke Rounded Design | 8 | Cast Iron | N/A | 1-7/8 | On Enquiry | ||
| CL-6-HWSFA | Straight-Spoke Rounded Design | 6 | Aluminium | N/A | 1-5/8 | On Enquiry | ||
| CL-6-HWSF | Straight-Spoke Rounded Design | 6 | Cast Iron | N/A | 1-5/8 | On Enquiry | ||
| CL-12-HWSFA | Straight-Spoke Rounded Design | 12 | Aluminium | N/A | 3 | On Enquiry | ||
| CL-5-HWSFA | Straight-Spoke Rounded Design | 5 | Aluminium | N/A | 1-1/2 | On Enquiry | ||
| CL-12-HWSF | Straight-Spoke Rounded Design | 12 | Cast Iron | N/A | 3 | On Enquiry | ||
| CL-5-HWSF | Straight-Spoke Rounded Design | 5 | Cast Iron | N/A | 1-1/2 | On Enquiry | ||
| CL-10-HWSFA | Straight-Spoke Rounded Design | 10 | Aluminium | N/A | 2-1/4 | On Enquiry | ||
| CL-4-HWSFA | Straight-Spoke Rounded Design | 4 | Aluminium | N/A | 1-1/4 | On Enquiry | ||
| CL-10-HWSF | Straight-Spoke Rounded Design | 10 | Cast Iron | N/A | 2-1/4 | On Enquiry | ||
| CL-4-HWSF | Straight-Spoke Rounded Design | 4 | Cast Iron | N/A | 1-1/4 | On Enquiry | ||
| CL-8-HWSFA | Straight-Spoke Rounded Design | 8 | Aluminium | N/A | 1-7/8 | On Enquiry | ||
| CL-12-HWAF | Angled-Spoke Rounded Design | 12 | Cast Iron | N/A | 1 | On Enquiry | ||
| CL-5-HWAF | Angled-Spoke Rounded Design | 5 | Cast Iron | N/A | 1-1/2 | On Enquiry | ||
| CL-10-HWAFA | Angled-Spoke Rounded Design | 10 | Aluminium | N/A | 2-1/4 | On Enquiry | ||
| CL-4-HWAFA | Angled-Spoke Rounded Design | 4 | Aluminium | N/A | 1-1/4 | On Enquiry | ||
| CL-10-HWAF | Angled-Spoke Rounded Design | 10 | Cast Iron | N/A | 2-1/4 | On Enquiry | ||
| CL-4-HWAF | Angled-Spoke Rounded Design | 4 | Cast Iron | N/A | 1-1/4 | On Enquiry | ||
| CL-8-HWAFA | Angled-Spoke Rounded Design | 8 | Aluminium | N/A | 1-7/8 | On Enquiry | ||
| CL-8-HWAF | Angled-Spoke Rounded Design | 8 | Cast Iron | N/A | 1-7/8 | On Enquiry | ||
| CL-6-HWAFA | Angled-Spoke Rounded Design | 6 | Aluminium | N/A | 1-5/8 | On Enquiry | ||
| CL-6-HWAF | Angled-Spoke Rounded Design | 6 | Cast Iron | N/A | 1-5/8 | On Enquiry | ||
| CL-12-HWAFA | Angled-Spoke Rounded Design | 12 | Aluminium | N/A | 1 | On Enquiry | ||
| CL-5-HWAFA | Angled-Spoke Rounded Design | 5 | Aluminium | N/A | 1-1/2 | On Enquiry | ||
| CL-60-HWTS-A | Two-Spoke Square Design | 6.30 | Aluminium | Tapped Hole for Handle | 1.42 | £76.42 £91.70 Inc. VAT |
|
|
| CL-50-HWTS-A | Two-Spoke Square Design | 4.92 | Aluminium | Tapped Hole for Handle | 1.22 | £52.93 £63.52 Inc. VAT |
|
|
| CL-100-HWTS-A | Two-Spoke Square Design | 9.84 | Aluminium | Tapped Hole for Handle | 1.89 | £141.91 £170.29 Inc. VAT |
|
|
| CL-80-HWTS-A | Two-Spoke Square Design | 7.87 | Aluminium | Tapped Hole for Handle | 1.65 | £100.33 £120.40 Inc. VAT |
|
|
| CL-81-HWSS-F | Solid Square Design | 7.87 | Phenolic | Tapped for Revolving Handle | 1.57 | £96.28 £115.54 Inc. VAT |
|
|
| CL-100-HWSS-S | Solid Square Design | 10 | Stainless Steel | N/A | 2 | £313.48 £376.18 Inc. VAT |
|
|
| CL-61-HWSS-F | Solid Square Design | 5.91 | Phenolic | Tapped for Revolving Handle | 1.26 | On Enquiry | ||
| CL-80-HWSS-S | Solid Square Design | 8 | Stainless Steel | N/A | 1.80/32 | On Enquiry | ||
| CL-80-HWSS-A | Solid Square Design | 7.87 | Aluminium | Tapped Hole for Handle | 1.65 | On Enquiry | ||
| CL-51-HWSS-F | Solid Square Design | 4.92 | Phenolic | Tapped for Revolving Handle | 1.26 | On Enquiry | ||
| CL-60-HWSS-S | Solid Square Design | 6 | Stainless Steel | N/A | 1.50 | On Enquiry | ||
| CL-41-HWSS-F | Solid Square Design | 3.94 | Phenolic | Tapped for Revolving Handle | .94 | On Enquiry | ||
| CL-40-HWSS-S | Solid Square Design | 4 | Stainless Steel | N/A | 1.02 | On Enquiry | ||
| CL-60-HWSS-A | Solid Square Design | 6.30 | Aluminium | Tapped Hole for Handle | 1.42 | On Enquiry | ||
| CL-31-HWSS-F | Solid Square Design | 3.15 | Phenolic | Tapped for Revolving Handle | .79 | On Enquiry | ||
| CL-30-HWSS-S | Solid Square Design | 3 | Stainless Steel | N/A | .87 | On Enquiry | ||
| CL-50-HWSS-A | Solid Square Design | 4.92 | Aluminium | Tapped Hole for Handle | 1.22 | On Enquiry | ||
| CL-42-HWSS-P | Solid Square Design | 3.94 | Thermoplastic | Tapped for Foldable Revolving Handle | .94 | On Enquiry | ||
| CL-40-HWSS-A | Solid Square Design | 3.94 | Aluminium | Tapped Hole for Handle | 1.10 | On Enquiry | ||
| CL-4-FHW | Fluted | 3.54 | Phenolic | N/A | 1.26 | £26.50 £31.80 Inc. VAT |
|
|
| CL-3-FHW | Fluted | 2.95 | Phenolic | N/A | .94 | £15.98 £19.18 Inc. VAT |
|
High-quality Hand Wheels, available in cast iron, aluminium, stainless steel, thermoplastic or phenolic, and are bored to the standard shaft diameter for their size. Wheels are tapped for a Standard Solid or Revolving handle, a Foldable Revolving handle or a plain rim without a handle (all handles ordered seperately).
While some have a textured surface for secure gripping and excellent impact resistnce, others are resistant to oils and most common chemicals, are extremely hard and electrical insulator.
Options
All finer details are found on the DATA SHEET.
| Quantity | Unit discount | You Save |
|---|
The precision height locator features a spherical-radius head designed to reduce the contact area with the workpiece. Its close-tolerance shank ensures a secure press-fit installation in a reamed hole. Spherical-radius locator buttons are ideal for use as supports, side locator pads, and jig feet. They are available with head diameters ranging from 3/16" to 3/8".
Durable multi-purpose knobs in Oval and Oval Tapered designs. Oval tapered knobs are Attractive design knobs also suitable for control levers and push pull rods, with moulded-in brass insert providing superior thread strength. The solid-plastic through hole version can be used with a shoulder screw as a revolving crank handle. Oval knobs are Comfortable-grip ball knobs that are ideal for shift levers, control levers and push pull rods, with moulded-in brass insert providing superior thread strength.
Precision Ball Lock Pins with a ground shank that is positive locking until released by pushing the button
Carr Lanes Solid handles are available in 5 different thread sizes in both metric and imperial sizes. This range offers a both stainless steel and steel options alongside various other finishes to choose from including thermoplastic and phenolic plastic. These handles come in a selection designs each manufactured to ensure optimal performance on any application.
