Carr Lane Oval and Oval Tapered Knobs
of

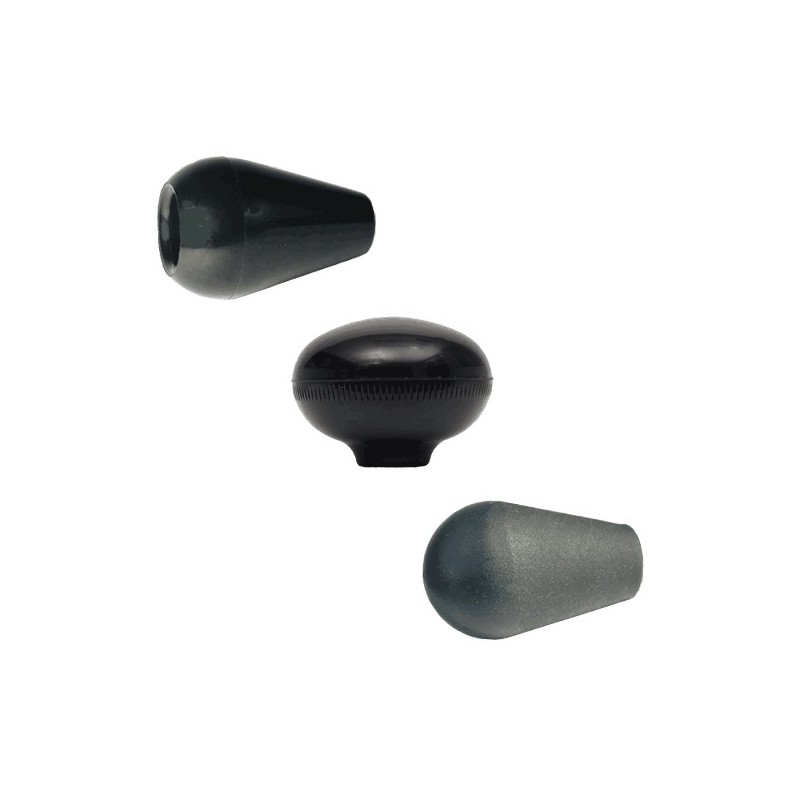

Carr Lane Oval and Oval Tapered Knobs

Carr Lane Oval Knobs

Durable multi-purpose knobs in Oval and Oval Tapered designs. Oval tapered knobs are Attractive design knobs also suitable for control levers and push pull rods, with moulded-in brass insert providing superior thread strength. The solid-plastic through hole version can be used with a shoulder screw as a revolving crank handle. Oval knobs are Comfortable-grip ball knobs that are ideal for shift levers, control levers and push pull rods, with moulded-in brass insert providing superior thread strength.

  • Available in Phenolic plastic
  • Choice of four knob sizes
Print page

Products
Downloads
Description
Part Number Material Number Type Metric or Imperial External Diameter Material Thread Tapped Price Add to Parts List
CLM-422-PKO CLM-422-PKO Oval Top Pull Metric 1 Phenolic M6 Tapped On Enquiry
CL-424-PKO CL-424-PKO Oval Top Pull Imperial 1 Phenolic #10-32 Tapped On Enquiry
CL-432-PKO CL-432-PKO Oval Top Pull Imperial 1 Phenolic 1/4-20 Tapped On Enquiry
CLM-432-PKO CLM-432-PKO Oval Top Pull Metric 1 Phenolic M5 Tapped On Enquiry
CL-654-PKO CL-654-PKO Oval Top Pull Imperial 1-5/8 Phenolic 3/8-24 Tapped On Enquiry
CL-655-TAPK CL-655-TAPK Tapered Imperial 1-1/2 Cushion Grip 5/16-18 Tapped £5.35
£6.42 Inc. VAT
CL-665-TAPK CL-665-TAPK Tapered Imperial 1-1/2 Cushion Grip 3/8-16 Tapped £5.65
£6.78 Inc. VAT
CL-685-TAPK CL-685-TAPK Tapered Imperial 1-1/2 Cushion Grip 1/2-13 Tapped £6.55
£7.86 Inc. VAT
CL-852-OBK CL-852-OBK Oval Ball Imperial 2-1/32 Phenolic 3/8-16 Tapped £5.46
£6.55 Inc. VAT
CL-532-OBK CL-532-OBK Oval Ball Imperial 1-1/8 Phenolic 1/4-20 Tapped On Enquiry
CL-854-OBK CL-854-OBK Oval Ball Imperial 2-1/32 Phenolic 3/8-24 Tapped £5.46
£6.55 Inc. VAT
CL-542-OBK CL-542-OBK Oval Ball Imperial 1-1/8 Phenolic 5/16-18 Tapped On Enquiry
CL-872-OBK CL-872-OBK Oval Ball Imperial 2-1/32 Phenolic 1/2-13 Tapped £7.00
£8.40 Inc. VAT
CL-552-OBK CL-552-OBK Oval Ball Imperial 1-1/8 Phenolic 3/8-16 Tapped £3.59
£4.31 Inc. VAT
CL-560-PTK* CL-560-PTK* Oval Tapered Imperial 1-3/16 Phenolic .375 Through Hole £6.48
£7.78 Inc. VAT
CL-23-PTK CL-23-PTK Oval Tapered Imperial 3/4 Phenolic #10-32 Tapped On Enquiry
CL-45-PTK CL-45-PTK Oval Tapered Imperial 1 Phenolic 5/16-18 Tapped On Enquiry
CL-55-PTK CL-55-PTK Oval Tapered Imperial 1-3/16 Phenolic 5/16-18 Tapped On Enquiry
CLM-612-PTK CLM-612-PTK Oval Tapered Metric 1-5/8 Phenolic M12 Tapped £8.08
£9.70 Inc. VAT
CL-24-PTK* CL-24-PTK* Oval Tapered Imperial 3/4 Phenolic 1/4-20 Tapped £6.00
£7.20 Inc. VAT
CL-46-PTK CL-46-PTK Oval Tapered Imperial 1 Phenolic 3/8-16 Tapped On Enquiry
CL-66-PTK CL-66-PTK Oval Tapered Imperial 1-5/8 Phenolic 3/8-16 Tapped On Enquiry
CL-68-PTK CL-68-PTK Oval Tapered Imperial 1-5/8 Phenolic 1/2-13 Tapped On Enquiry
CL-650-PTK CL-650-PTK Oval Tapered Imperial 1-5/8 Cushion Grip 5/16-18 Tapped £6.76
£8.11 Inc. VAT
CLM-46-PTK CLM-46-PTK Oval Tapered Metric 1 Phenolic M6 Tapped £3.80
£4.56 Inc. VAT
CLM-58-PTK CLM-58-PTK Oval Tapered Metric 1-3/16 Phenolic M8 Tapped £7.06
£8.47 Inc. VAT
CL-44-PTK CL-44-PTK Oval Tapered Imperial 1 Phenolic 1/4-20 Tapped On Enquiry
CL-54-PTK CL-54-PTK Oval Tapered Imperial 1-3/16 Phenolic 1/4-20 Tapped On Enquiry
CLM-610-PTK CLM-610-PTK Oval Tapered Metric 1-5/8 Phenolic M10 Tapped £6.65
£7.98 Inc. VAT
CL-660-PTK CL-660-PTK Oval Tapered Imperial 1-5/8 Cushion Grip 3/8-16 Tapped On Enquiry
CLM-26-PTK* CLM-26-PTK* Oval Tapered Metric 3/4 Phenolic M6 Tapped £5.93
£7.12 Inc. VAT

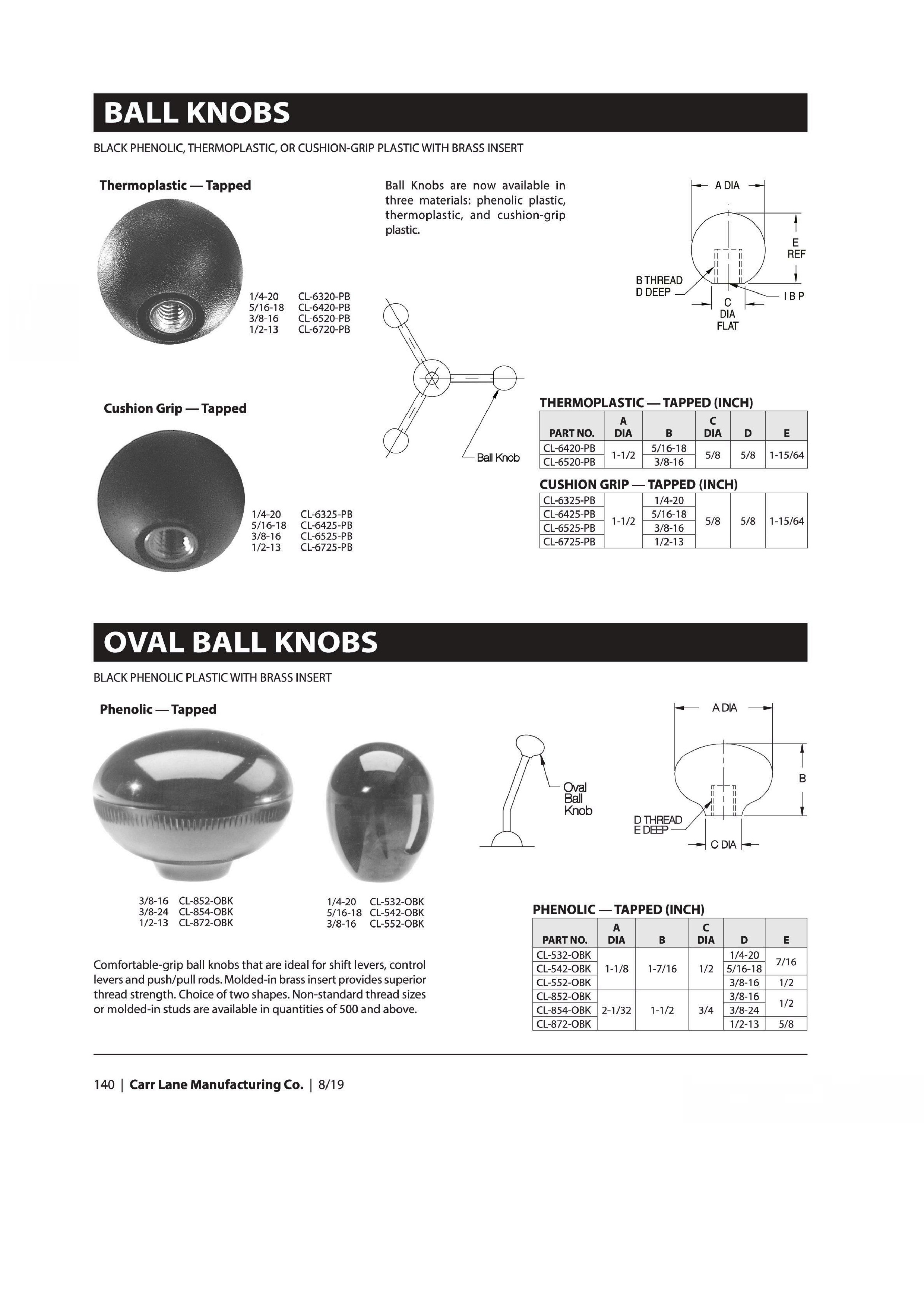

Oval Knobs datasheet

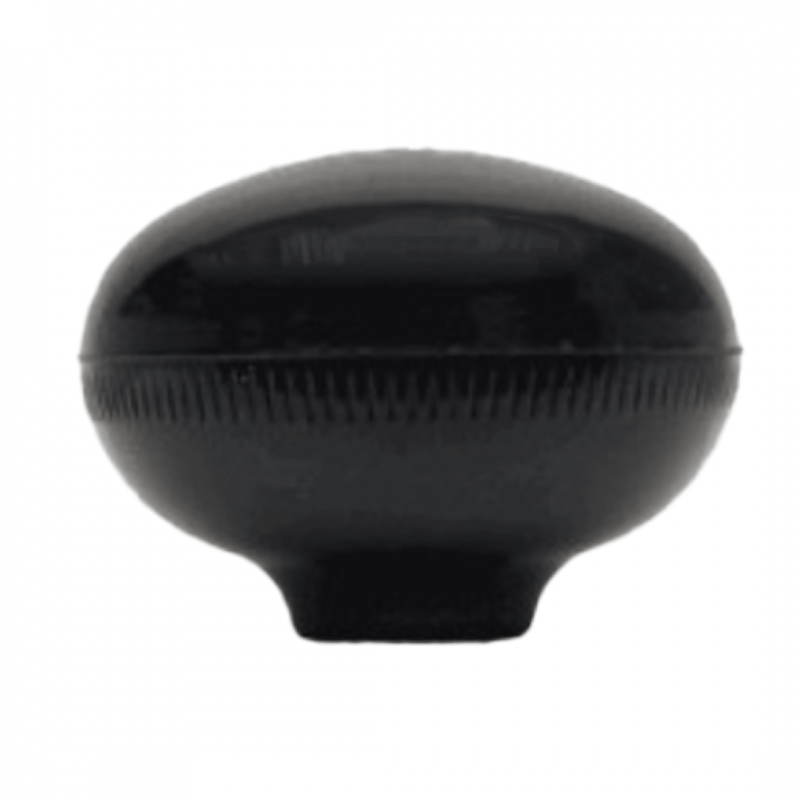

Carr Lane Oval Knobs

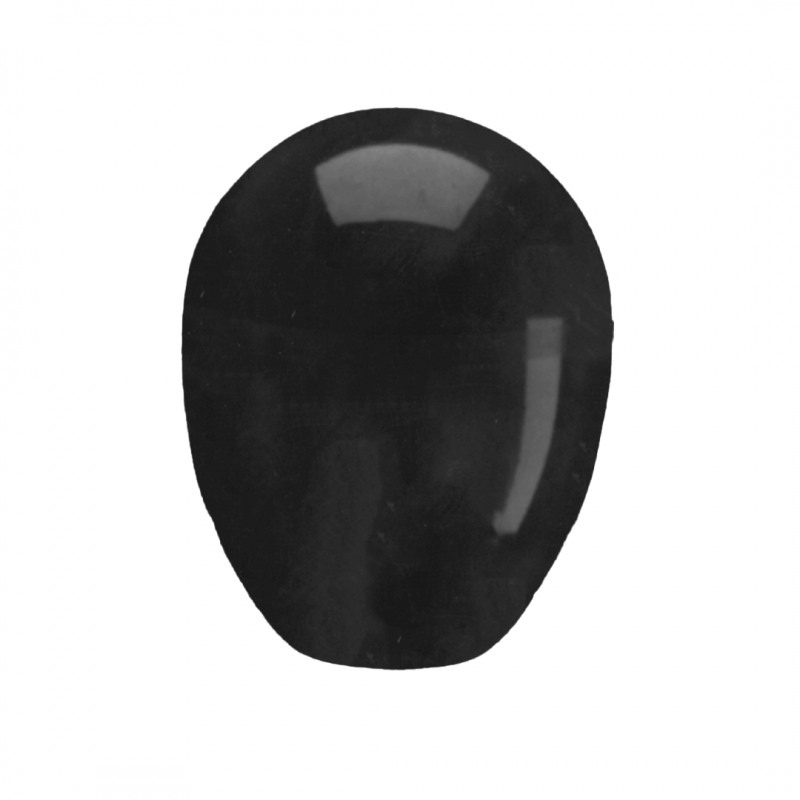

Carr Lane Oval Ball Knobs

Comfortable-grip ball knobs that are ideal for shift levers, control levers and push pull rods, with moulded-in brass insert providing superior thread strength.

  • Choice of two shapes
  • Available in Phenolic plastic

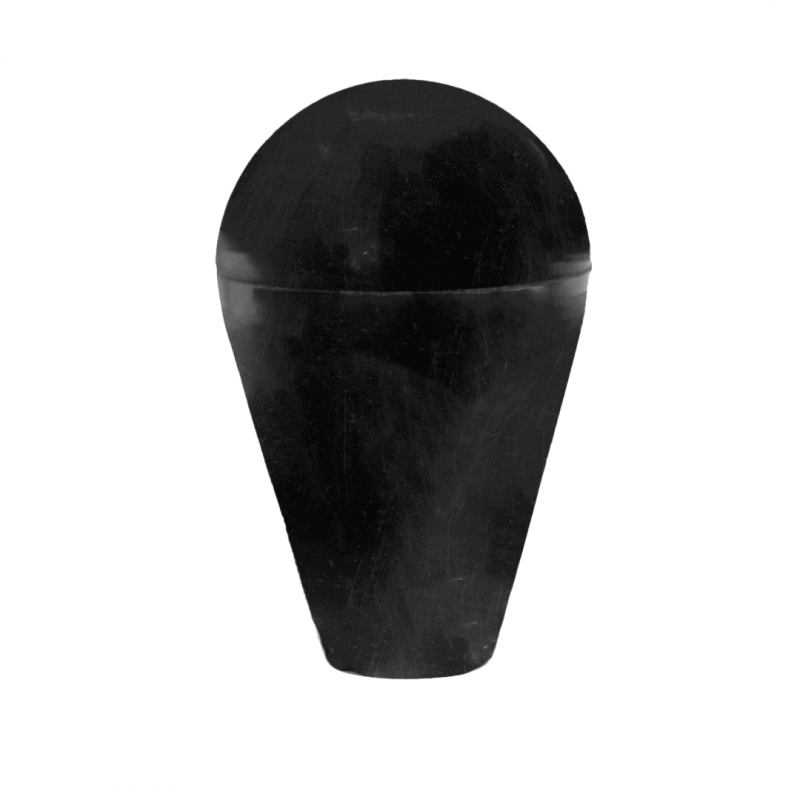

Carr Lane Oval Tapered Knobs

Attractive design knobs also suitable for control levers and push pull rods, with moulded-in brass insert providing superior thread strength. The solid-plastic through hole version can be used with a shoulder screw as a revolving crank handle.

  • Choice of four knob sizes
  • Available in Phenolic plastic

Material Types;

Phenolic Plastic - Glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300F, resistant to oils and most common chemicals.

Thermoplastic- Textured surface for improved gripping, excellent impact resistance, operating temperatures to 150F.

Cushion Grip- Unique plastic that feels soft to the touch, matte finish, comfortable yet rugged, excellent impact resistence operating temperatures to 150F, excellent gripability even when wet or oily, absorbs vibration.

* - These Sizes are solid plastic, without a brass insert.
