Carr Lane Press Fit Bushings 1/2 OD
- OD - 1/2"
- ID RANGE - .1875 - .3750"
- Imperial sizes available with a variety of Lengths

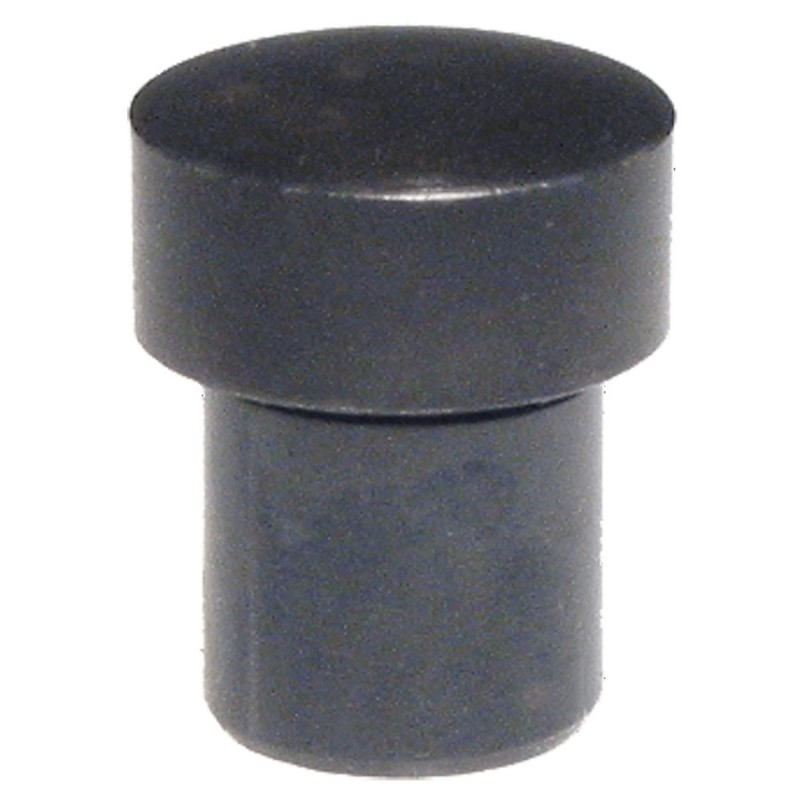

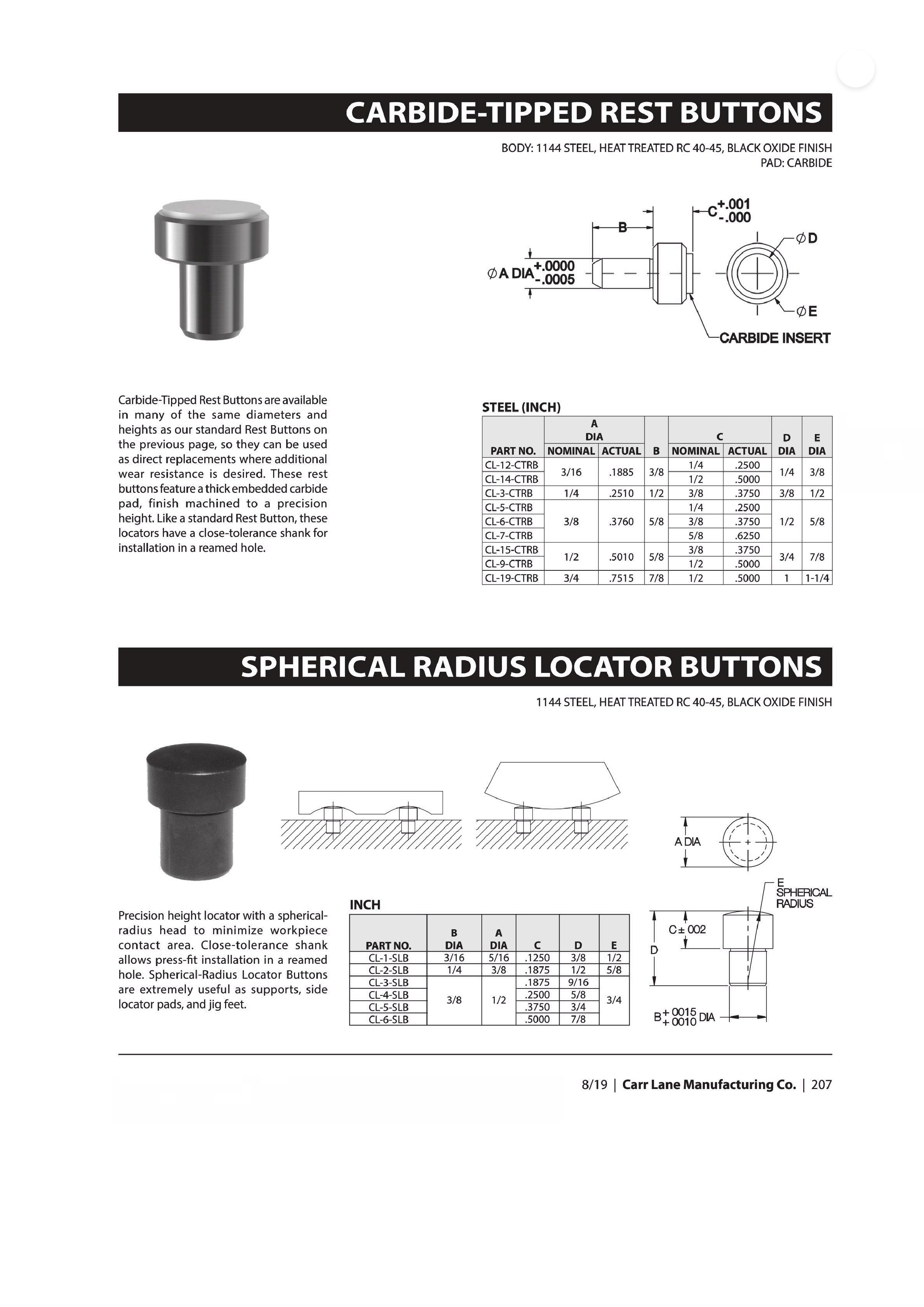

The precision height locator features a spherical-radius head designed to reduce the contact area with the workpiece. Its close-tolerance shank ensures a secure press-fit installation in a reamed hole. Spherical-radius locator buttons are ideal for use as supports, side locator pads, and jig feet. They are available with head diameters ranging from 3/16" to 3/8".
Part Number | Material Number | External Diameter | Length | Price | Add to Parts List |
---|---|---|---|---|---|
CL-1-SLB | 5/16 | 3/8 | £5.00 £6.00 Inc. VAT |
|
|
CL-2-SLB | 3/8 | 1/2 | £5.74 £6.89 Inc. VAT |
|
|
CL-6-SLB | 1/2 | 7/8 | £7.49 £8.99 Inc. VAT |
|
|
CL-5-SLB | 1/2 | 3/4 | £7.49 £8.99 Inc. VAT |
|
|
CL-4-SLB | 1/2 | 5/8 | £6.46 £7.75 Inc. VAT |
|
|
CL-3-SLB | 1/2 | 9/16 | £6.16 £7.39 Inc. VAT |
|
The precision height locator features a spherical-radius head designed to reduce the contact area with the workpiece. Its close-tolerance shank ensures a secure press-fit installation in a reamed hole. Spherical-radius locator buttons are ideal for use as supports, side locator pads, and jig feet. They are available with head diameters ranging from 3/16" to 3/8".
Quantity | Unit discount | You Save |
---|
HYQUIP supply the full range of Carr Lane Hand wheels which are available in various different designs and finishes. These finishes include thermoplastic, phenolic plastic, aluminium stainless steel and cast iron. They also offer a wide range of design options which include straight spoke, two-spoke, two spoke square, angled-spoke, solid square, and solid disc shaped machine handwheels. These hand wheels are offered in various sizes depended on the selected model.
Carr Lane hand knobs are designed to provide an efficient and ergonomic method of manually adjusting and controlling machinery and applications HYQUIP supply the full range of Carr Lane Knobs including Star, Hand and Fluted, available in a variety of materials and sizes.
Range of Carr Lane Assemblies including Hand Knob, Swivel Washer and Knob Shoe avaible in a variety of sizes
L Pins and T Pins have precision-ground pin diameter to ensure accurate hole alignment. L Pins and T Pins are removable locating pins with a durable construction, each featuring a handle end with a small hole for attaching an optional cable. These pins come in a variety of diameters and lengths. Jig Pins, similar to L and T Pins, incorporate an integral shoulder to keep the handle raised. Also available from the Carr Lane range, locking L Pins and T Pins with a lock screw that securely holds bushings in place. These pins are available in both imperial and metric sizes.
Turn Screw available in Quarter and Half turn type, ideal for swing-away lids and jig plates
Durable swivel head screw designed to accommodate various swivel feet. The knurled head ensures a secure grip, allowing for easy hand tightening in light clamping tasks. Knurled-head swivel-screw assemblies that combine the bodies and feet also in this category, available in multiple sizes and materials. Swivel head screws are available in four different variants, which includes small foot, large foot, ball foot, and bodies for swivel had screws. These are available in steel, stainless steel and steel with black oxide finish.
