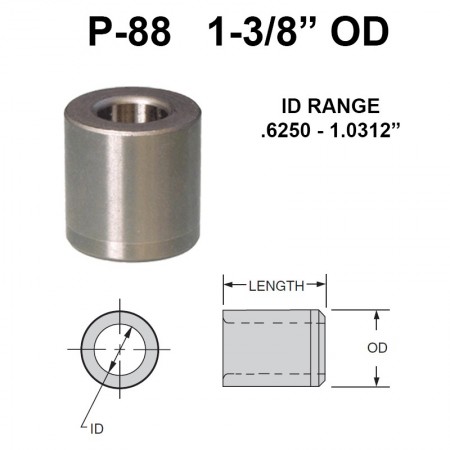

Carr Lane Press fit bushings are the most common yet most cost-effective type of drill bushing in the range. P-style drill bushings are the most common and cost-effective type of drill bushing. These bushings are permanently installed into the jig plate, typically flush with the top surface. Press fit bushings (P- style) bushings are primarily used for single-operation drilling or reaming, particularly when there is no expectation of replacing the bushings throughout the tooling's lifespan. They can be mounted closer together than headed bushings but provide less resistance to heavy axial loads. These are available in both ground and unground variants. Standard bushes are listed below however configurations are available on enquiry.

• OD - 1-1/4
• ID RANGE - .8594 - .9449
• Imperial sizes available with a variety of Lengths

Turn Screw available in Quarter and Half turn type, ideal for swing-away lids and jig plates

• Thread: #10-24 - 1/2-13 or M5 - M12
• Metric and Imperial sizes

Carr lanes step block and clamp sets are made up from an assortment of six step block pairs and six step clamps in a wooden holder. These sets are offered in two unique load ranges, standard and heavy. These are available to fit stud sizes from 3/8-16 to 3/4-10 (M10 to M20 in metric).

• OD - 1-3/8"
• ID RANGE - .6250 - 1.0312"
• Imperial sizes available with a variety of Lengths

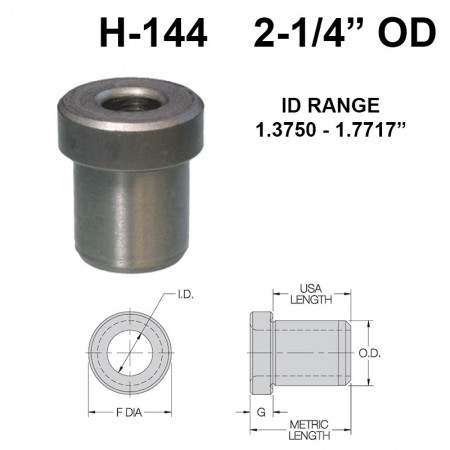

Carr Lane Head Press Fit Bushings are a variation of standard press fit bushings, featuring a head designed to withstand significant axial loads. These bushings are permanently installed into the jig plate and are typically used for single-operation drilling or reaming, where the bushings are not intended to be replaced throughout the tooling's lifespan. The head of these bushings can either remain exposed or be recessed by counterboring the installation hole.

• OD - 2-1/4"
• ID RANGE - 1.3750 - 1.7717"
• Imperial sizes available with a variety of Lengths

Carr Lane forged adjustable clamps are available in several variations. Thes include standard, flange nut assembly and hand knob assembly. These clamps deliver quick height adjustment without the need for blocks or shims. Its integrated design ensures fast setup and prevents the loss of clamp components. The clamp can be rotated 90° in either direction for added loading clearance. A removable brass heel protects the machine table. Available for stud sizes from 5/16-18 to 1"-8 (M8 to M24 in metric).

• Clamp Straps, Assemblies with Flange Nuts and Hand Knobs
• Available in Metric and Imperial
• Stud sizes ranging from 5/16-18 - 1"-8 or M8 - M24

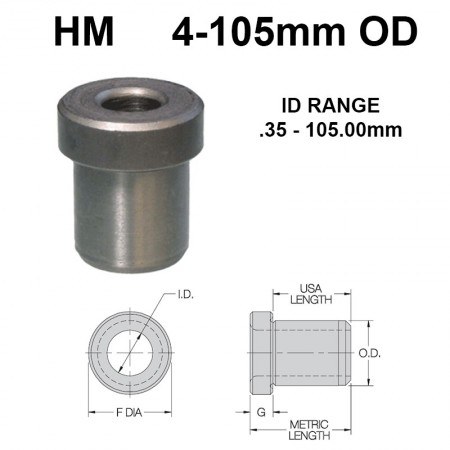

Carr Lane Head Press Fit Bushings are a variation of standard press fit bushings, featuring a head designed to withstand significant axial loads. These bushings are permanently installed into the jig plate and are typically used for single-operation drilling or reaming, where the bushings are not intended to be replaced throughout the tooling's lifespan. The head of these bushings can either remain exposed or be recessed by counterboring the installation hole.

• OD - 4mm - 125mm
• ID RANGE - .35mm - 105.00mm
• Metric sizes available with a variety of Lengths

Carr Lane Press fit bushings are the most common yet most cost-effective type of drill bushing in the range. P-style drill bushings are the most common and cost-effective type of drill bushing. These bushings are permanently installed into the jig plate, typically flush with the top surface. Press fit bushings (P- style) bushings are primarily used for single-operation drilling or reaming, particularly when there is no expectation of replacing the bushings throughout the tooling's lifespan. They can be mounted closer together than headed bushings but provide less resistance to heavy axial loads. These are available in both ground and unground variants. Standard bushes are listed below however configurations are available on enquiry.

• OD - 1-1/2"
• ID RANGE - 1.0156 - 1.1417"
• Imperial sizes available with a variety of Lengths

Carr Lane forged U clamps are designed with an open U shape that allows for easy removal of a clamp strap for loading and unloading. The open U end features two stepped tips that ensure consistent positioning. The opposite end has a cylindrical pin that reduces contact area, making it ideal for clamping in horizontal holes.

• Available in 3 sizes
• variety of bolt sizes and lengths

• OD - 1-3/4"
• ID RANGE - .9843 - 1.3906"
• Imperial sizes available with a variety of Lengths

Full Range of Carr Lane Revolving Handles including square design, foldable and revolving ball handle, made from Phenolic Plastic with Steel Body and Thermoplastic Stainless Steel Body

• Thread: 1/4-20 - 1/2-13 or M6 - M12
• Metric and Imperial sizes
