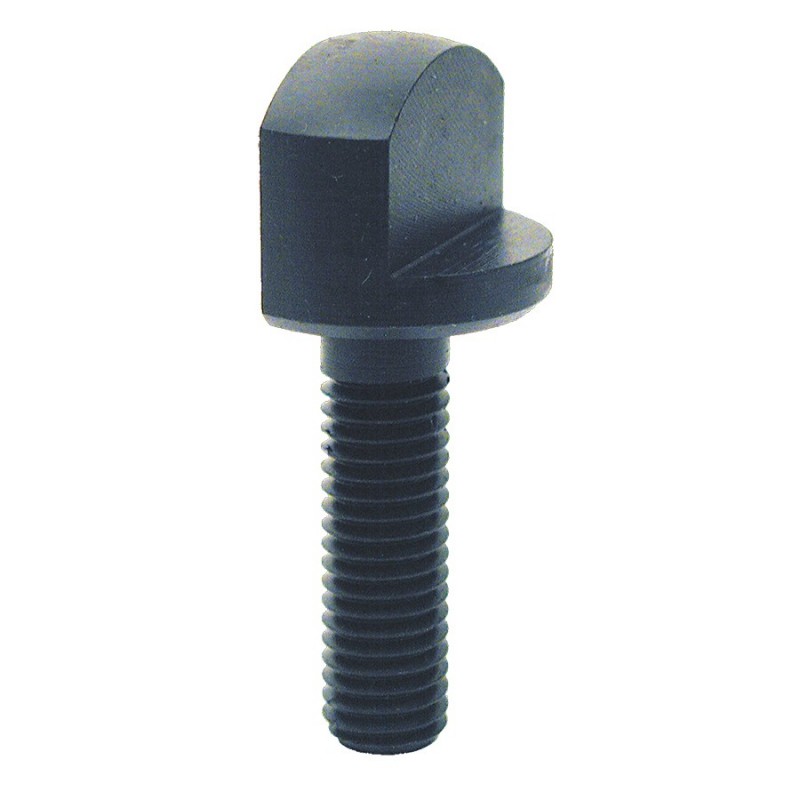

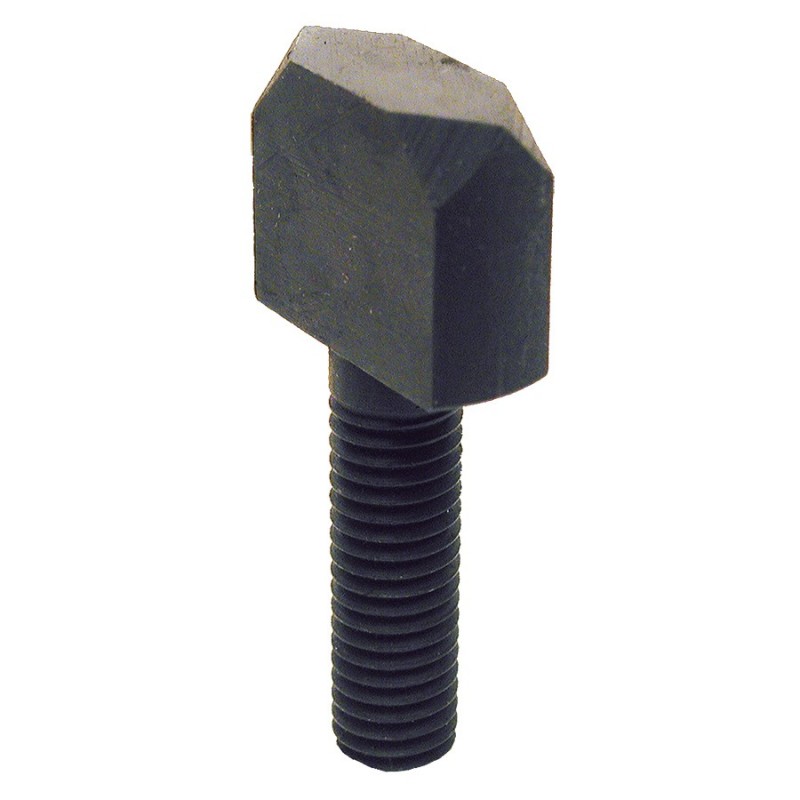

Turn Screw available in Quarter and Half turn type, ideal for swing-away lids and jig plates
| Part Number | Material Number | Type | Metric or Imperial | Material | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-10-HTS | Half Turn | Metric | Hardened Steel | M10 | On Enquiry | ||
| CL-4-HTS | Half Turn | Imperial | Hardened Steel | 3/8-16 | £17.94 £21.53 Inc. VAT |
|
|
| CLM-6-HTS | Half Turn | Metric | Hardened Steel | M6 | £17.29 £20.75 Inc. VAT |
|
|
| CL-2-HTS | Half Turn | Imperial | Hardened Steel | 1/4-20 | £17.29 £20.75 Inc. VAT |
|
|
| CL-5-HTS | Half Turn | Imperial | Hardened Steel | 1/2-13 | £20.80 £24.96 Inc. VAT |
|
|
| CLM-5-HTS | Half Turn | Metric | Hardened Steel | M5 | £17.17 £20.60 Inc. VAT |
|
|
| CL-1-HTS | Half Turn | Imperial | Hardened Steel | #10-32 | £16.70 £20.04 Inc. VAT |
|
|
| CLM-8-HTS | Half Turn | Metric | Hardened Steel | M8 | £17.69 £21.23 Inc. VAT |
|
|
| CL-3-HTS | Half Turn | Imperial | Hardened Steel | 5/16-18 | £17.33 £20.80 Inc. VAT |
|
|
| CL-30-QTS | Quarter Turn | Imperial | Hardened Steel | 1/4-20 | On Enquiry | ||
| CLM-12-QTS | Quarter Turn | Metric | Hardened Steel | M12 | On Enquiry | ||
| CL-60-QTS | Quarter Turn | Imperial | Hardened Steel | 1/2-13 | On Enquiry | ||
| CL-10-QTS | Quarter Turn | Imperial | Hardened Steel | #10-24 | On Enquiry | ||
| CLM-5-QTS | Quarter Turn | Metric | Hardened Steel | M5 | On Enquiry | ||
| CL-40-QTS | Quarter Turn | Imperial | Hardened Steel | 5/16-18 | On Enquiry | ||
| CL-20-QTS | Quarter Turn | Imperial | Hardened Steel | #10-32 | On Enquiry | ||
| CLM-8-QTS | Quarter Turn | Metric | Hardened Steel | M8 | £13.38 £16.06 Inc. VAT |
|
|
| CL-50-QTS | Quarter Turn | Imperial | Hardened Steel | 3/8-16 | £13.56 £16.27 Inc. VAT |
|
|
| CL-6-QTS | Quarter Turn | Imperial | Soft Steel | 1/2-13 | £15.11 £18.13 Inc. VAT |
|
|
| CL-1-QTS | Quarter Turn | Imperial | Soft Steel | #10-24 | £9.61 £11.53 Inc. VAT |
|
|
| CL-4-QTS | Quarter Turn | Imperial | Soft Steel | 5/16-18 | £11.53 £13.84 Inc. VAT |
|
|
| CL-2-QTS | Quarter Turn | Imperial | Soft Steel | #10-32 | £9.61 £11.53 Inc. VAT |
|
|
| CL-5-QTS | Quarter Turn | Imperial | Soft Steel | 3/8-16 | £13.34 £16.01 Inc. VAT |
|
|
| CL-3-QTS | Quarter Turn | Imperial | Soft Steel | 1/4-20 | £10.04 £12.05 Inc. VAT |
|
|
| CLM-10-QTS | Quarter Turn | Metric | Hardened Steel | M10 | On Enquiry | ||
| CLM-6-QTS | Quarter Turn | Metric | Hardened Steel | M6 | £11.63 £13.96 Inc. VAT |
|
Carr Lane Quarter-Turn Screws
Domestic and export sales enquiries are welcome from end users, original equipment machinery manufacturers and trade suppliers from all industrial sectors.
If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
