Carr Lane Subplate Locating Keys

Carr Lane Subplate Locating Keys

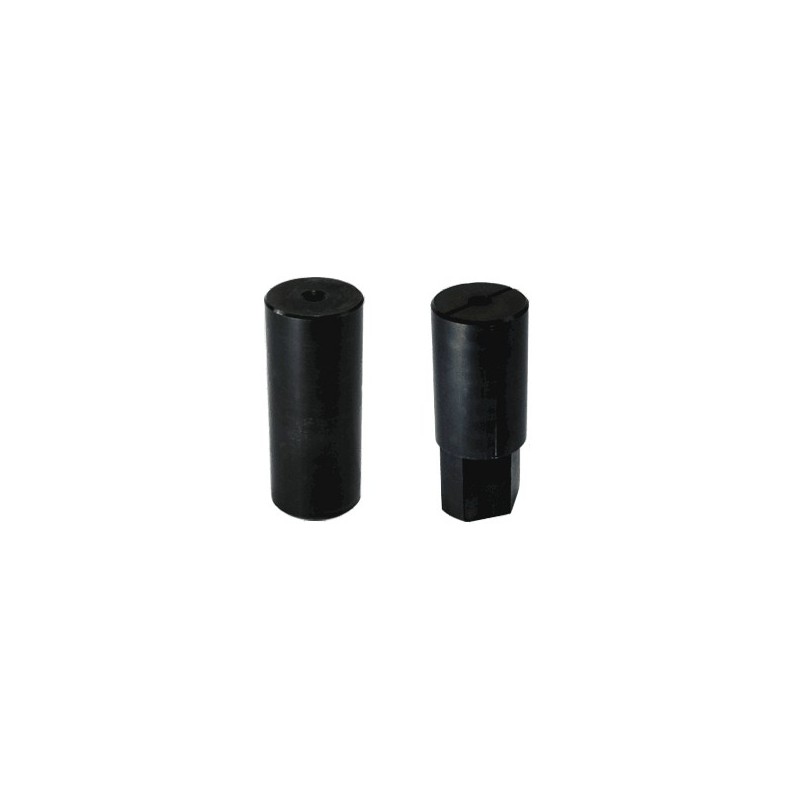

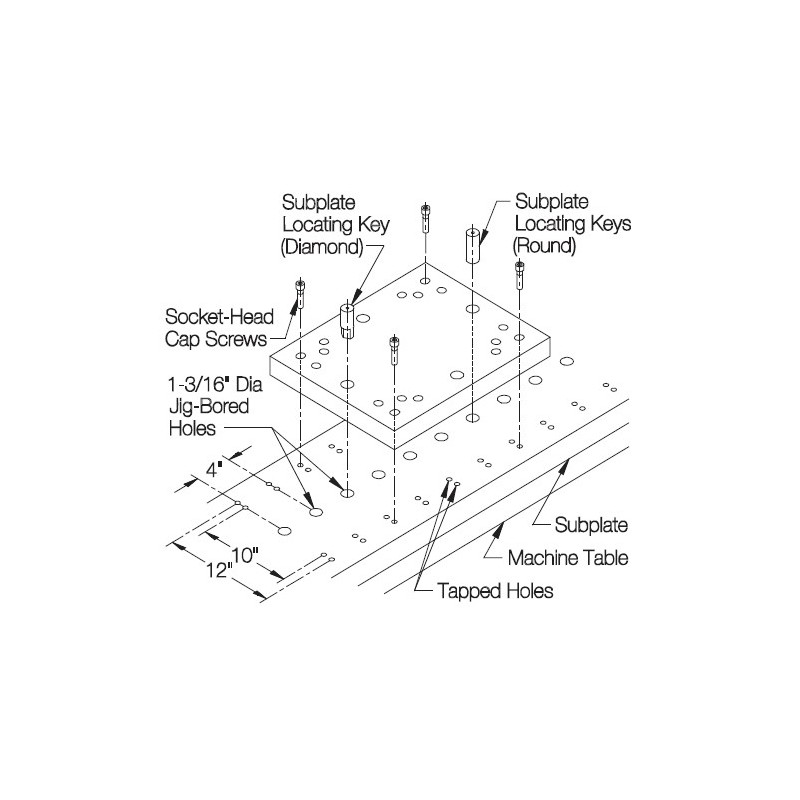

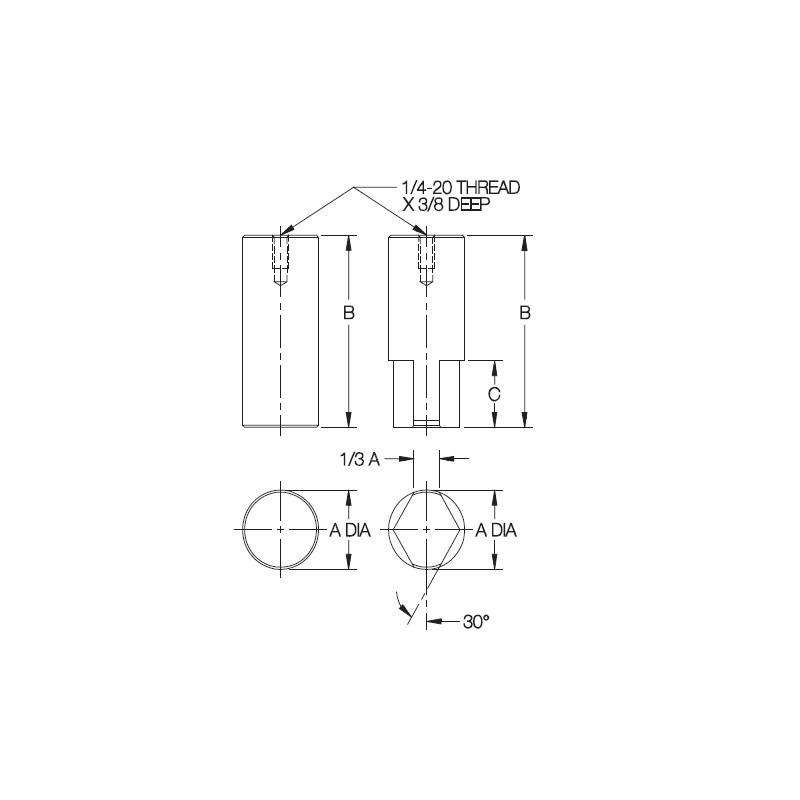

Subplate Locating Keys provide a simple way to use standard fixture plates as quick-change fixtures on a subplate. Two standard diameters (5/8" and 1-3/16") match standard fixture-key holes. This allows mounting the same fixture on a subplate or directly on a machine table. A round key and a diamond key are used together for precise location without binding. Insert keys from above after placing fixture on the subplate. If desired, keys can be removed before machining, after the fixture is fastened. The tapped hole in the top of each key makes insertion and removal easier.

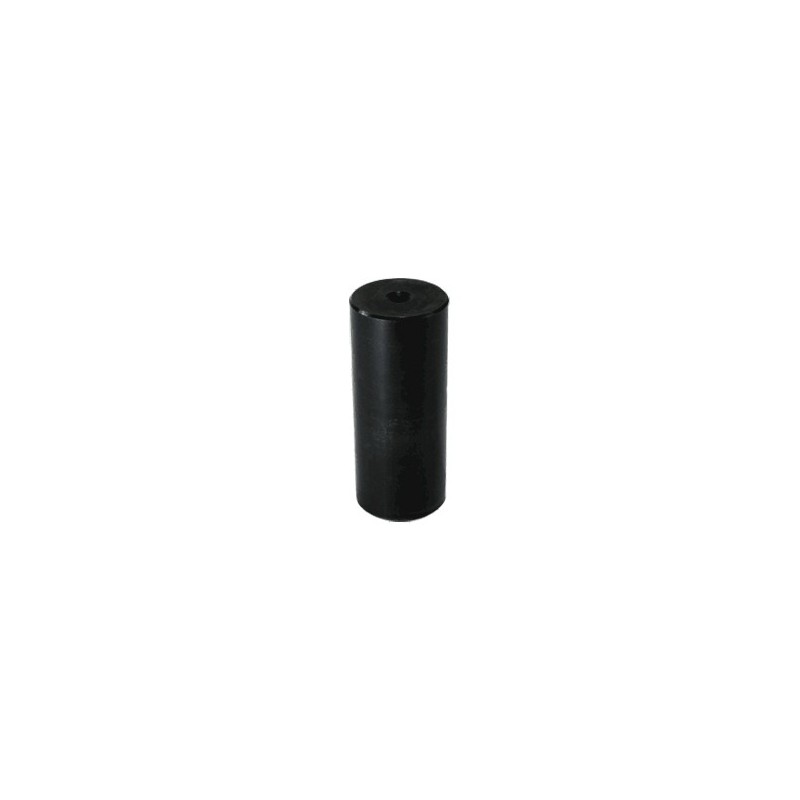

Small-diameter keys (5/8") can be used to mount any fixture with standard 5/8" holes for Sure-Lock Fixture Keys. Use one round key and one diamond key. Large-diameter keys (1-3/16") can be used to mount any of the standard Rectangular Tooling Plates, blank or modular, on a subplate for quick-change fixturing. Use one round key and one diamond key.

Options:

• Round and Diamond Pins

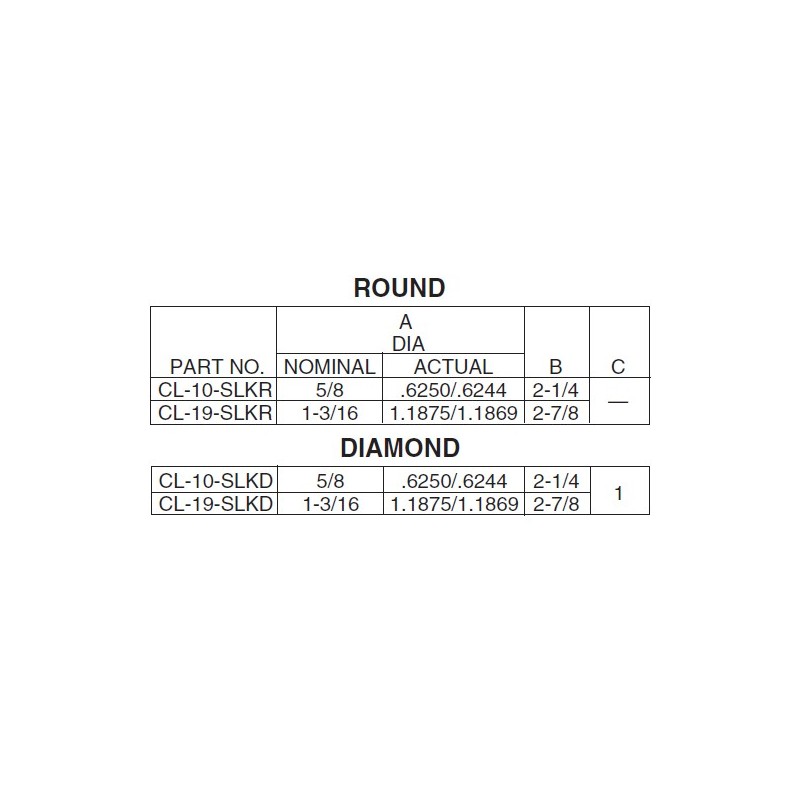

• External Diameter - 5/8 - 1/3-16
