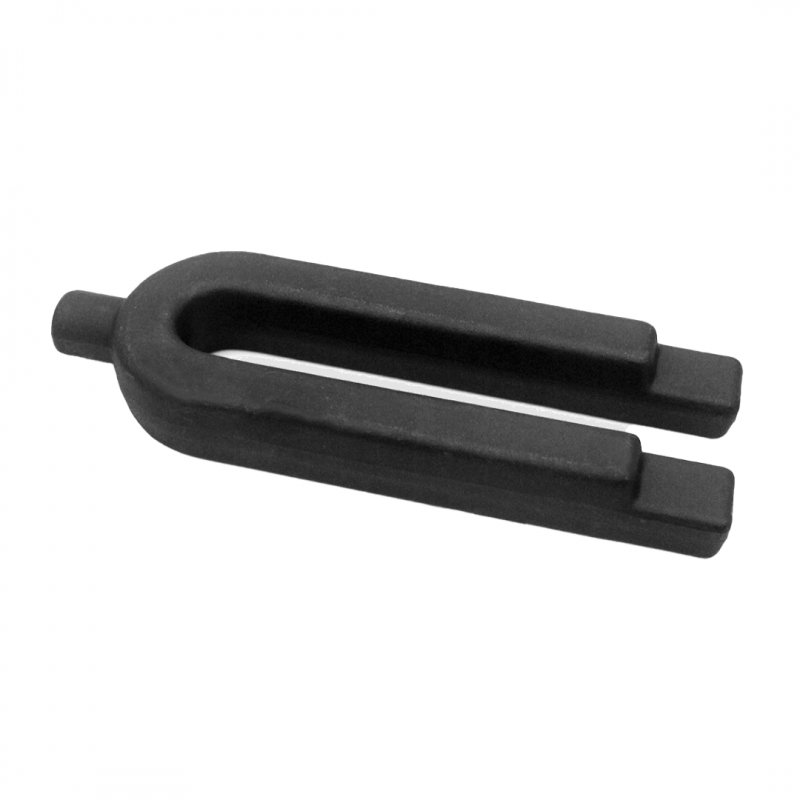

Carr Lane Forged U Clamps
Carr Lane forged U clamps are designed with an open U shape that allows for easy removal of a clamp strap for loading and unloading. The open U end features two stepped tips that ensure consistent positioning. The opposite end has a cylindrical pin that reduces contact area, making it ideal for clamping in horizontal holes.
- Available in 3 sizes
- variety of bolt sizes and lengths
Products
Downloads
Description

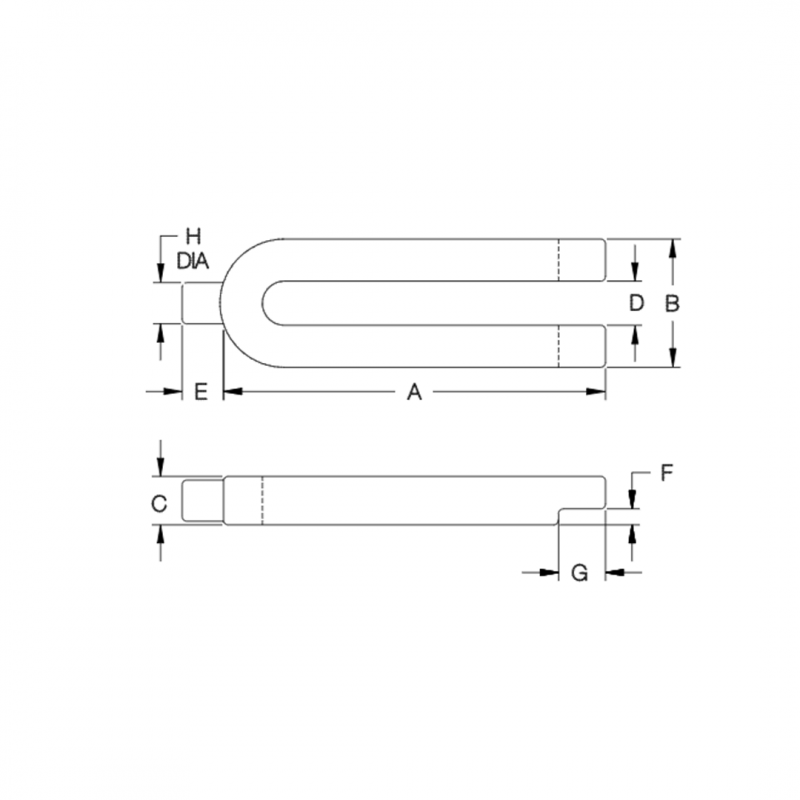

| Part Number | Material Number | Length | Internal Diameter | Bolt Size | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-6-FUC | 5-7/16 | 11/16 | 5/8-11 or M16 | £18.92 £22.70 Inc. VAT |
|
|
| CL-8-FUC | 7-3/8 | 13/16 | 3/4-10 or M20 | £30.88 £37.06 Inc. VAT |
|
|
| CL-12-FUC | 10-15/16 | 1-1/16 | 1"-8 or M24 | £65.92 £79.10 Inc. VAT |
|
Carr Lane Forged U Clamps
Carr Lane forged U clamps are designed with an open U shape that allows for easy removal of a clamp strap for loading and unloading. The open U end features two stepped tips that ensure consistent positioning. The opposite end has a cylindrical pin that reduces contact area, making it ideal for clamping in horizontal holes.
Options
- Available in 3 sizes
- variety of bolt sizes and lengths
| Quantity | Unit discount | You Save |
|---|
