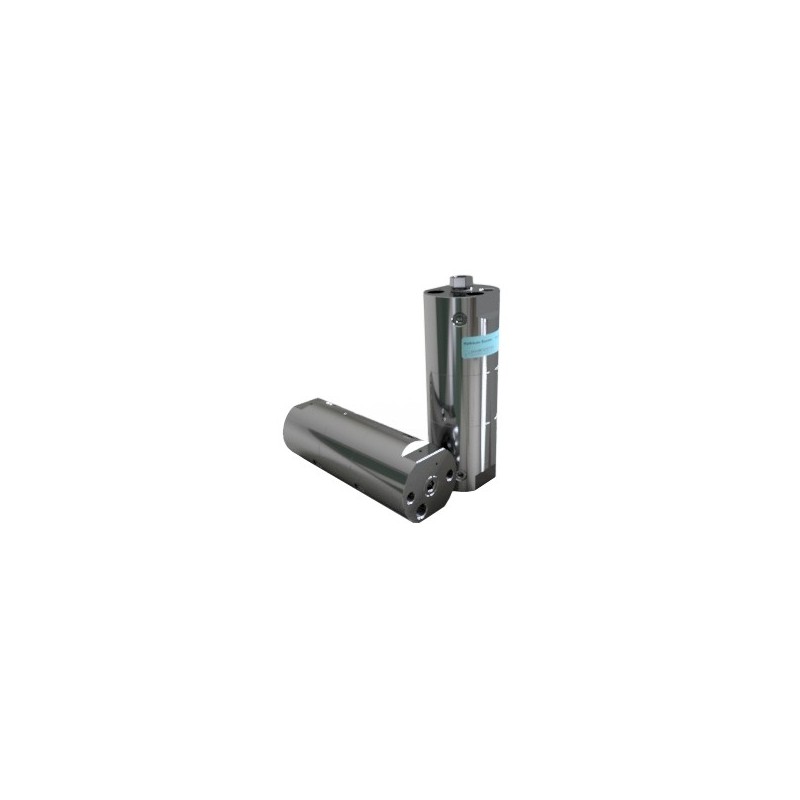

Minibooster HC2D2HW

Minibooster HC2D2HW

HC2D2HW versions: 4 different intensification factors

  • PIN: 20 – 207 bar (inlet pressure)
  • PH: 1,380 bar maximum (outlet pressure)
  • PRETURN: As low as possible (return pressure to tank)
  • POUTLET: PH = (PIN – PReturn) i (intensification)
    The intensification ratio is related to the inlet pressure at media 2, the values in the table are measured at 1 bar on media 2

Description
Downloads

Minibooster HC2D2HW

  • Drain connections: Max. 5 bar
  • Mounting: Inline tube

A Model = Without Dump Valves

Material certificate 3.1 on request

Description:

HC2D2HW is a dual media unit which is capable of delivering up to 1.6 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2D2HW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2D2HW is a compact unit weighing 8.0 kg.

General Functions:

The basic operation is illustrated in the function diagram. Media 1 is fed through the IN port flowing freely through the bistable valve BV1 driving the LP pistons. From the suction inlet IN Media 2 is drawn through the check valves 2 x KV1, and pumped through the 2 x KV2 to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function.

The unit will automatically stall when end pressure on high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the HP1 and HP2 units will automatically operate to maintain the end pressure.

HC2D2HW Function Diagram
