HC6

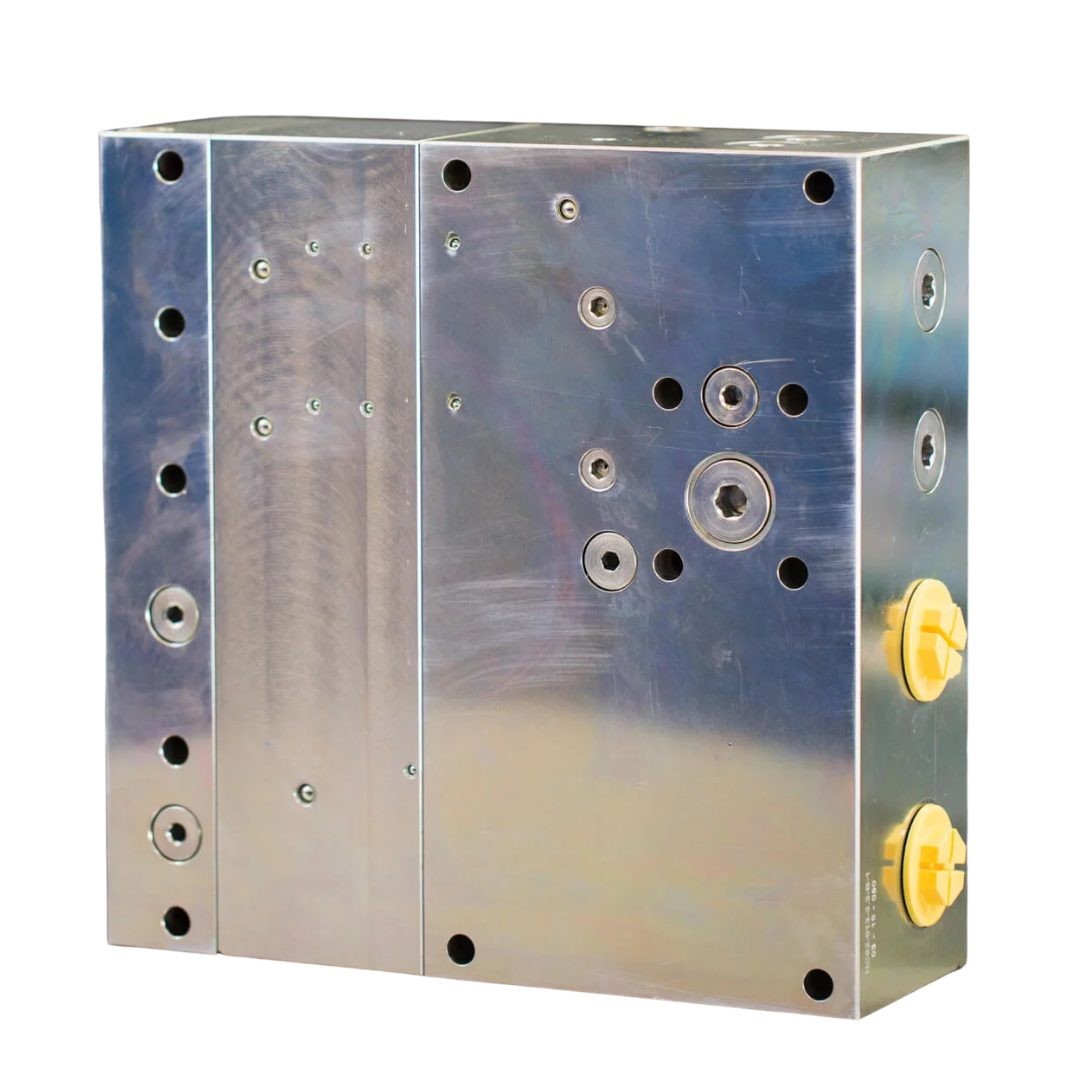

The HC63 is a high-flow unit which is capable of delivering up to 64.5 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC63 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC63 is a compact unit weighing only 60.0 kg.

HP flange mounting is optional. Furthermore, it is possible to flange multiple HC63 boosters in order to achieve higher flow

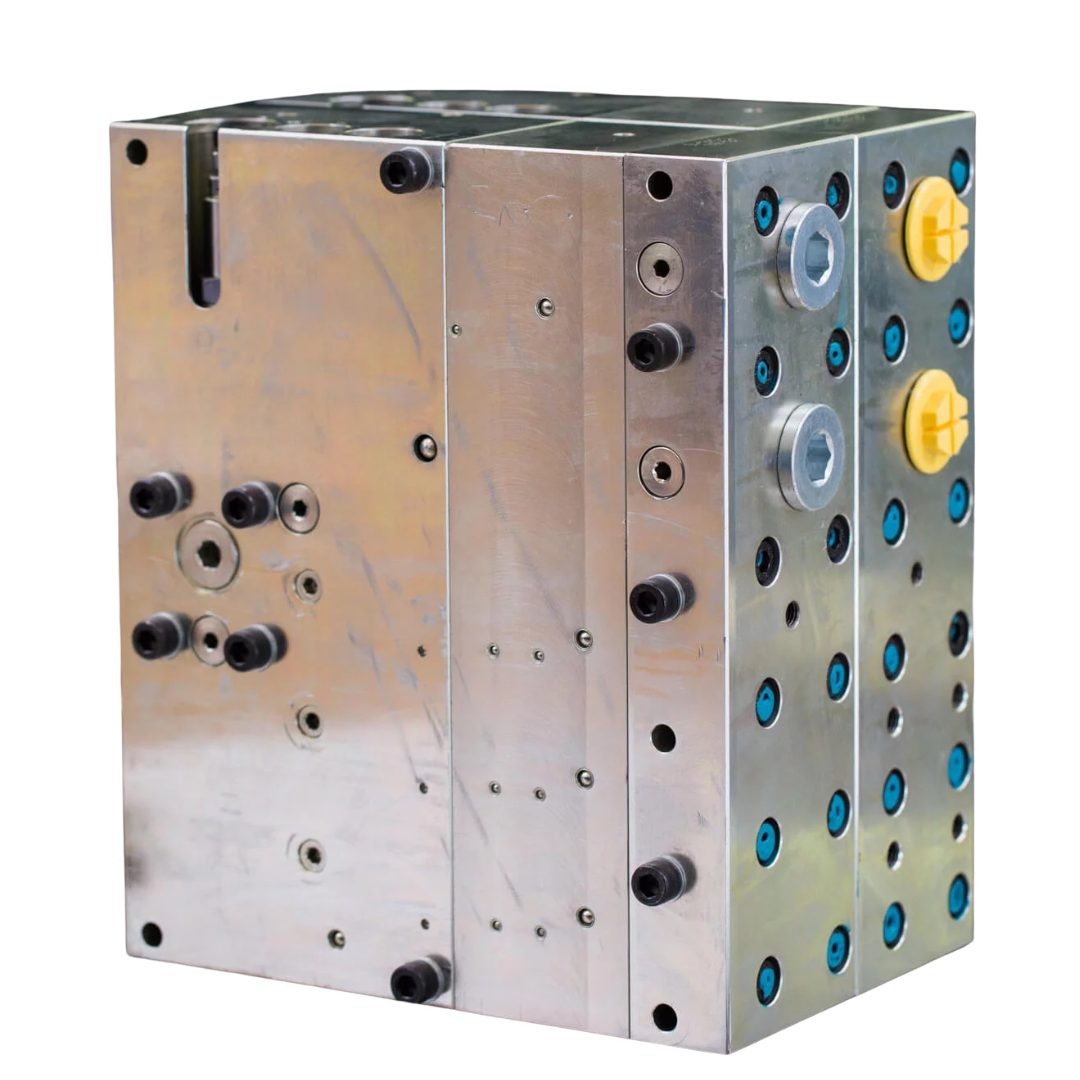

The HC62 is a high-flow unit which is capable of delivering up to 43 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC62 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC62 is a compact unit weighing only 50.0 kg.

HP flange mounting is optional. Furthermore, it is possible to flange multiple HC62 boosters in order to achieve higher flow.

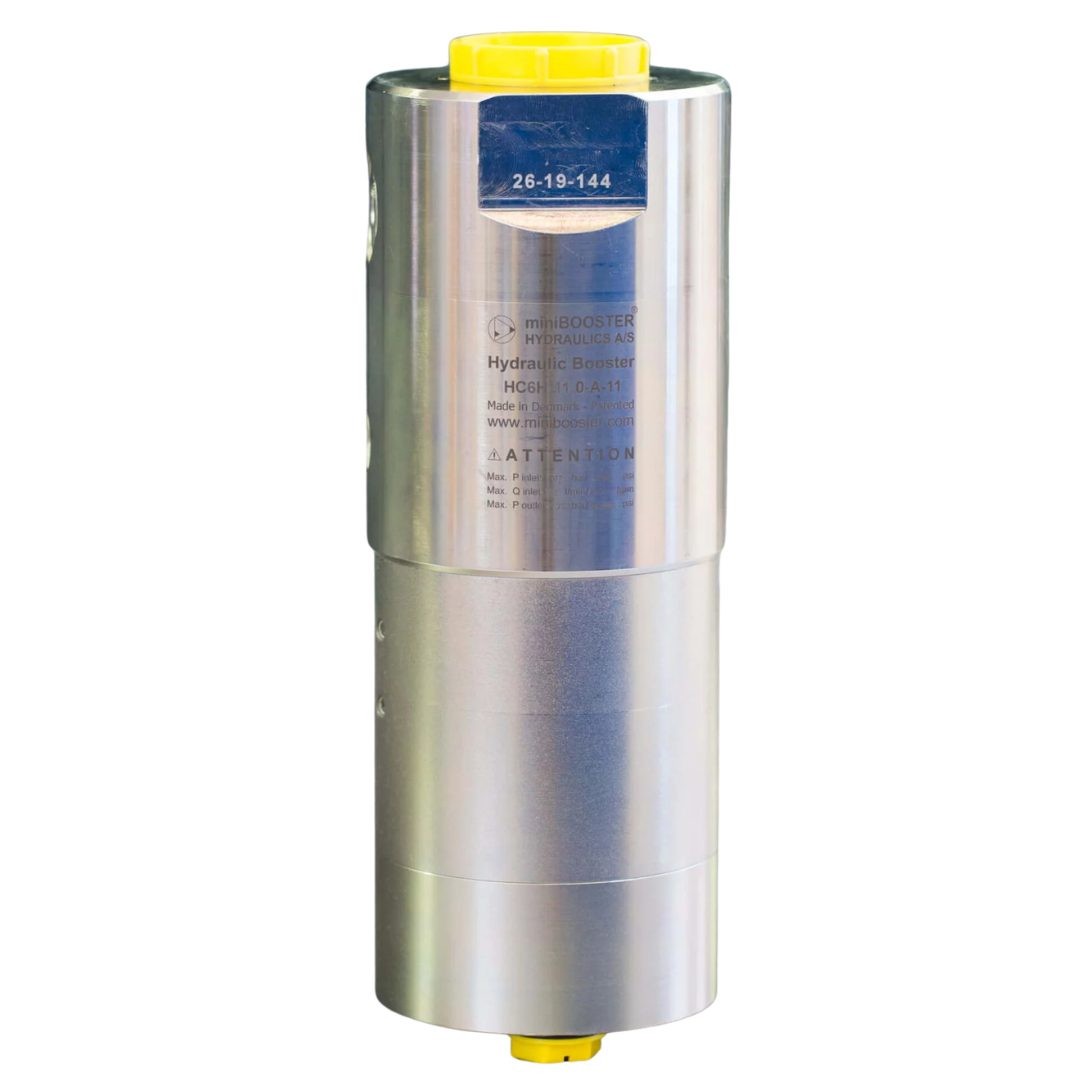

The HC6H is an ultra high-pressure unit which is capable of delivering up to 5,000 bar and 1.7 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6H is a compact unit weighing only 11.0 kg.

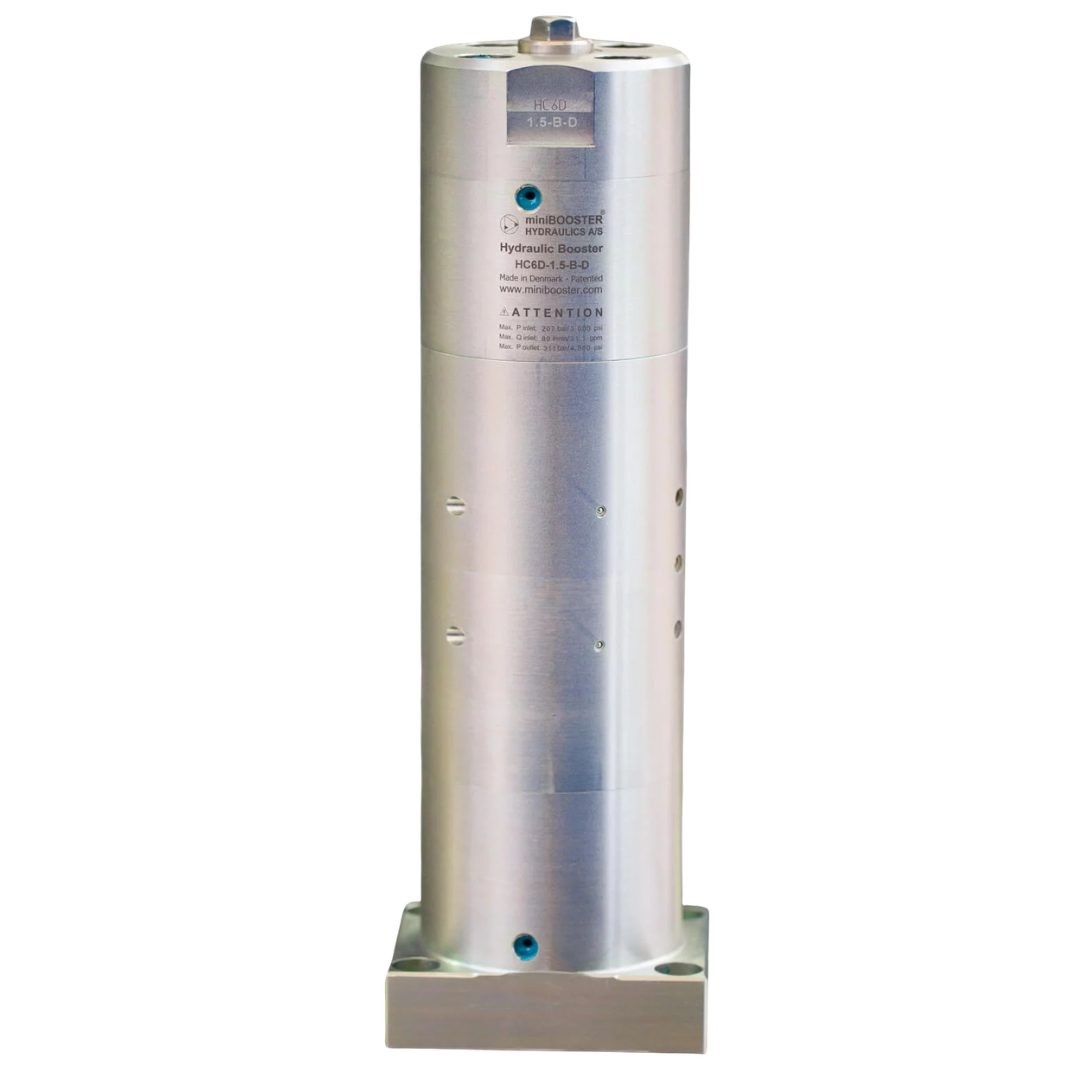

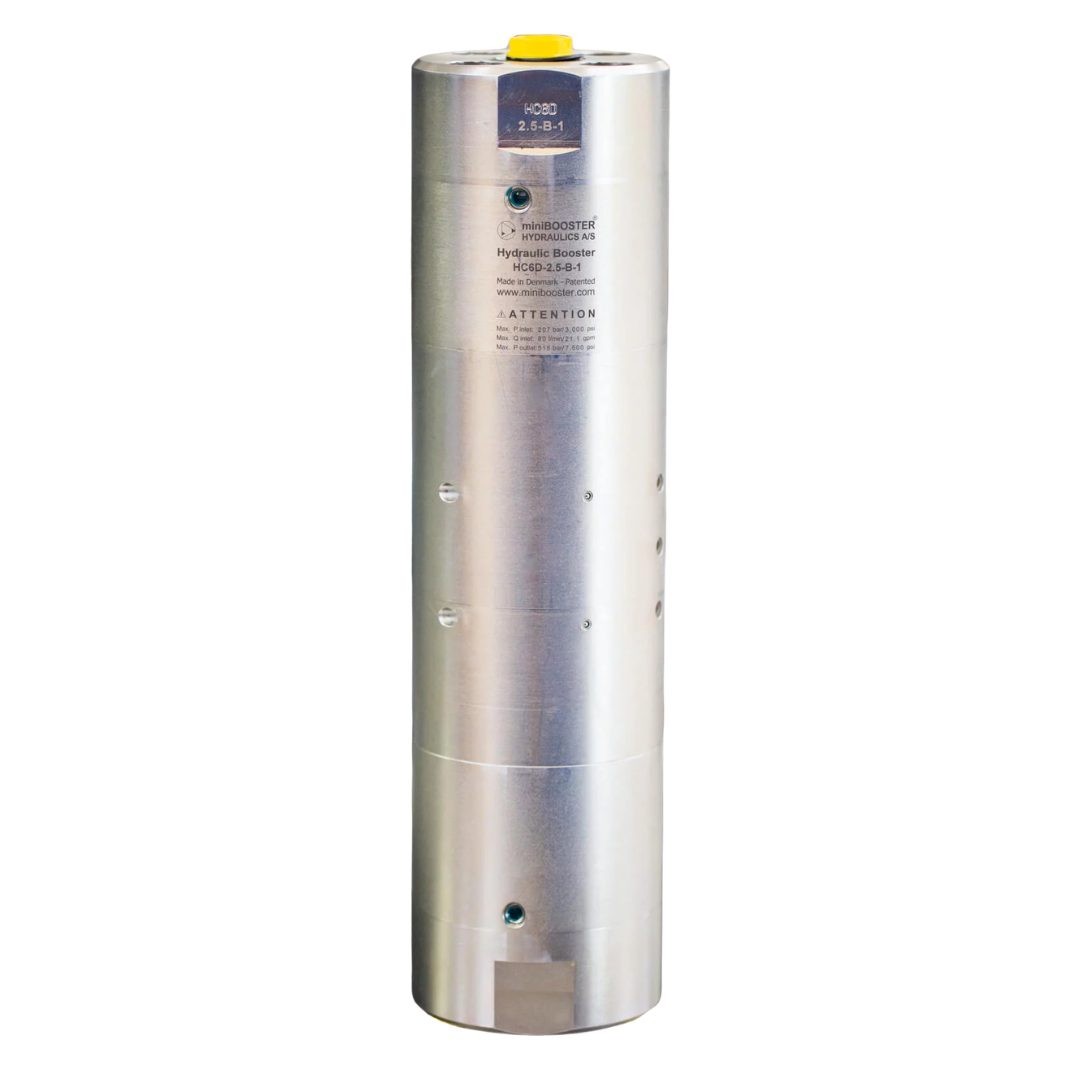

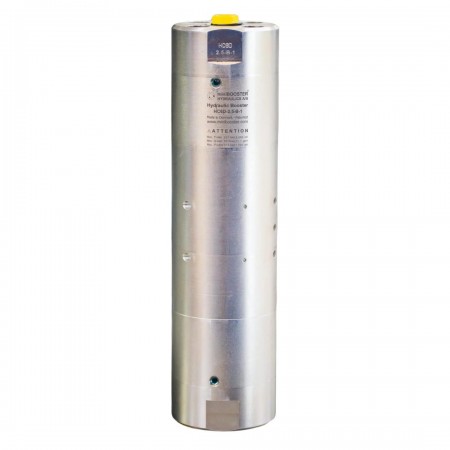

The HC6D-D is a high-flow dual-acting unit, which is capable of delivering up to 65.0 l/min flow on the high-pressure end.Like other miniBOOSTER models, the HC6D-D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D-D is a compact unit weighting 20 kg. The hole pattern is a miniBOOSTER design. HC6D mounted with HC6D-HKIT can be directly replaced by HC6D-D.

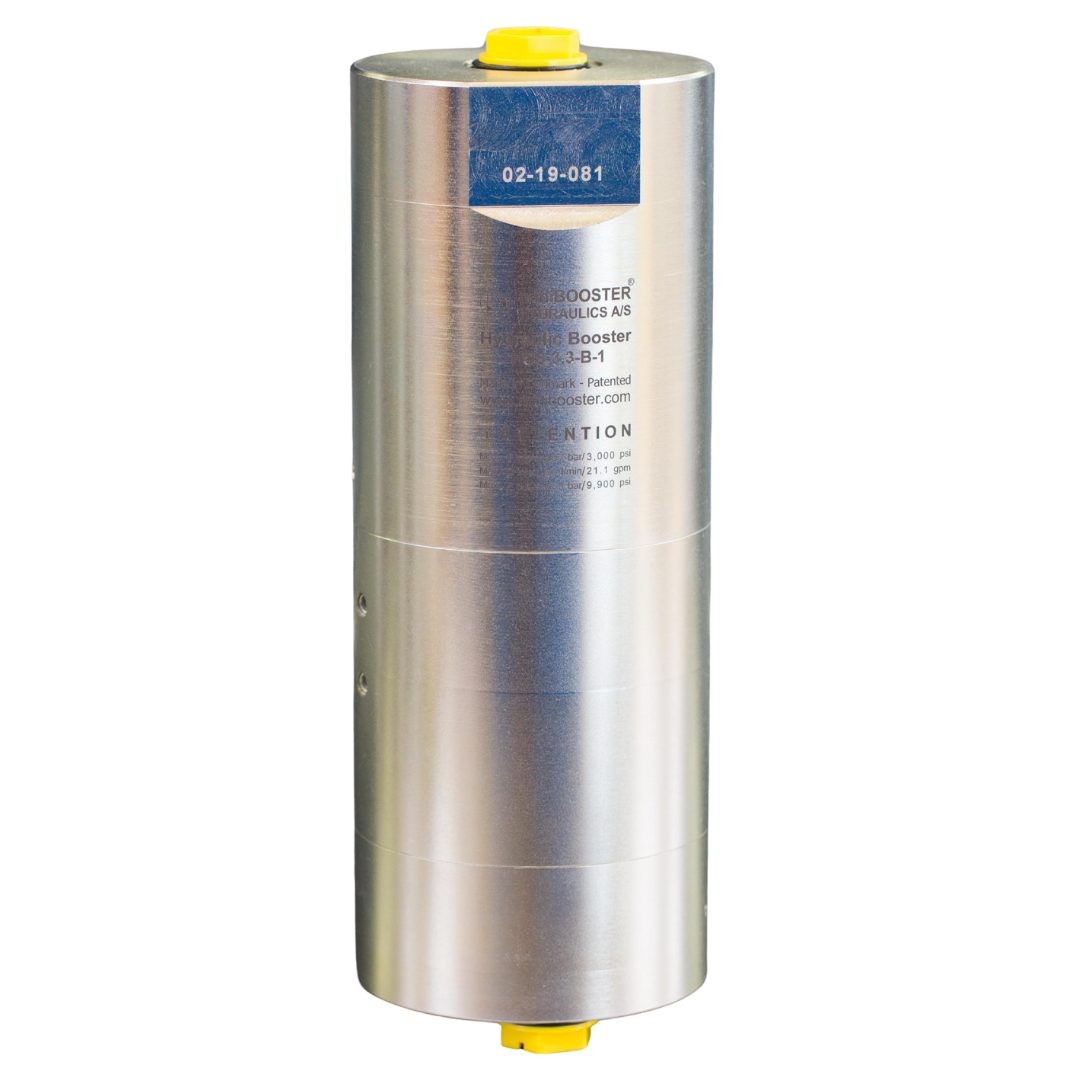

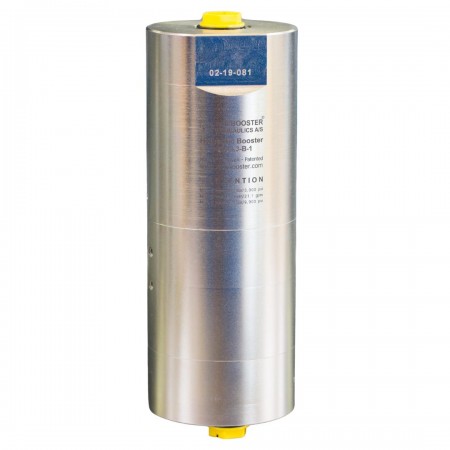

The HC6 is a high-flow unit which is capable of delivering up to 28.3 l/min flow on the high-pressure end.

Like other miniBOOSTER models, the HC6 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6 is a compact unit weighing only 9.5 kg.

The HC6 is a high-flow unit which is capable of delivering up to 28.3 l/min flow on the high-pressure end.

Like other miniBOOSTER models, the HC6 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6 is a compact unit weighing only 9.5 kg.
