HC8

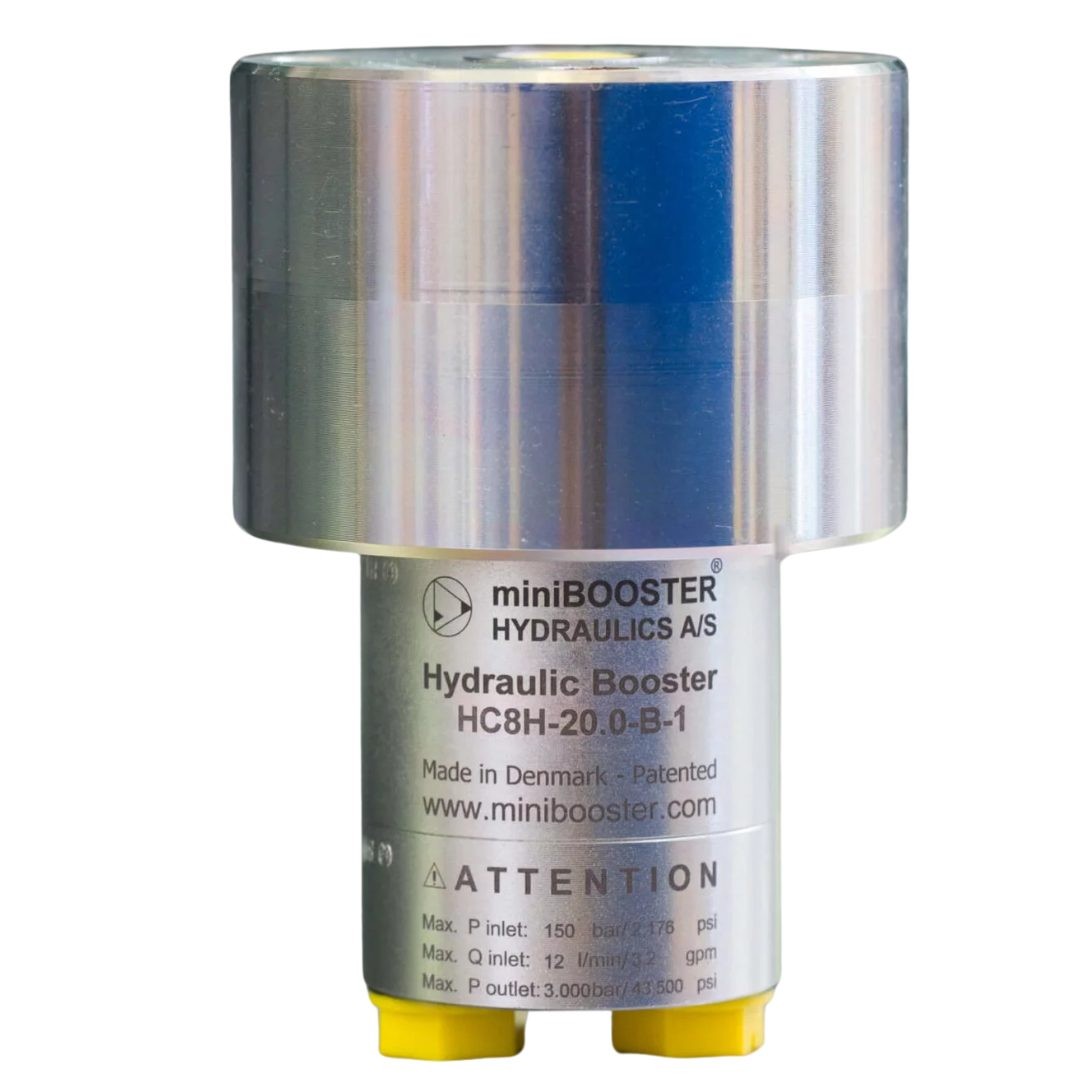

The HC8H is developed for applications where intensified pressure up to 3,000 bar are required. Operating like the HC2, the HC8H is a unique, self-contained device which boosts inlet pressure up to a 25:1 factor without the use of an external power source.

In addition, the HC8H maintains high pressure by automatically compensating for consumption of oil on the high-pressure side. High pressure is directly proportional to inlet pressure. The HC8H is a compact unit weighing 4.7 kg. The HC8H works at inlet pressure from 20 to 207 bar.

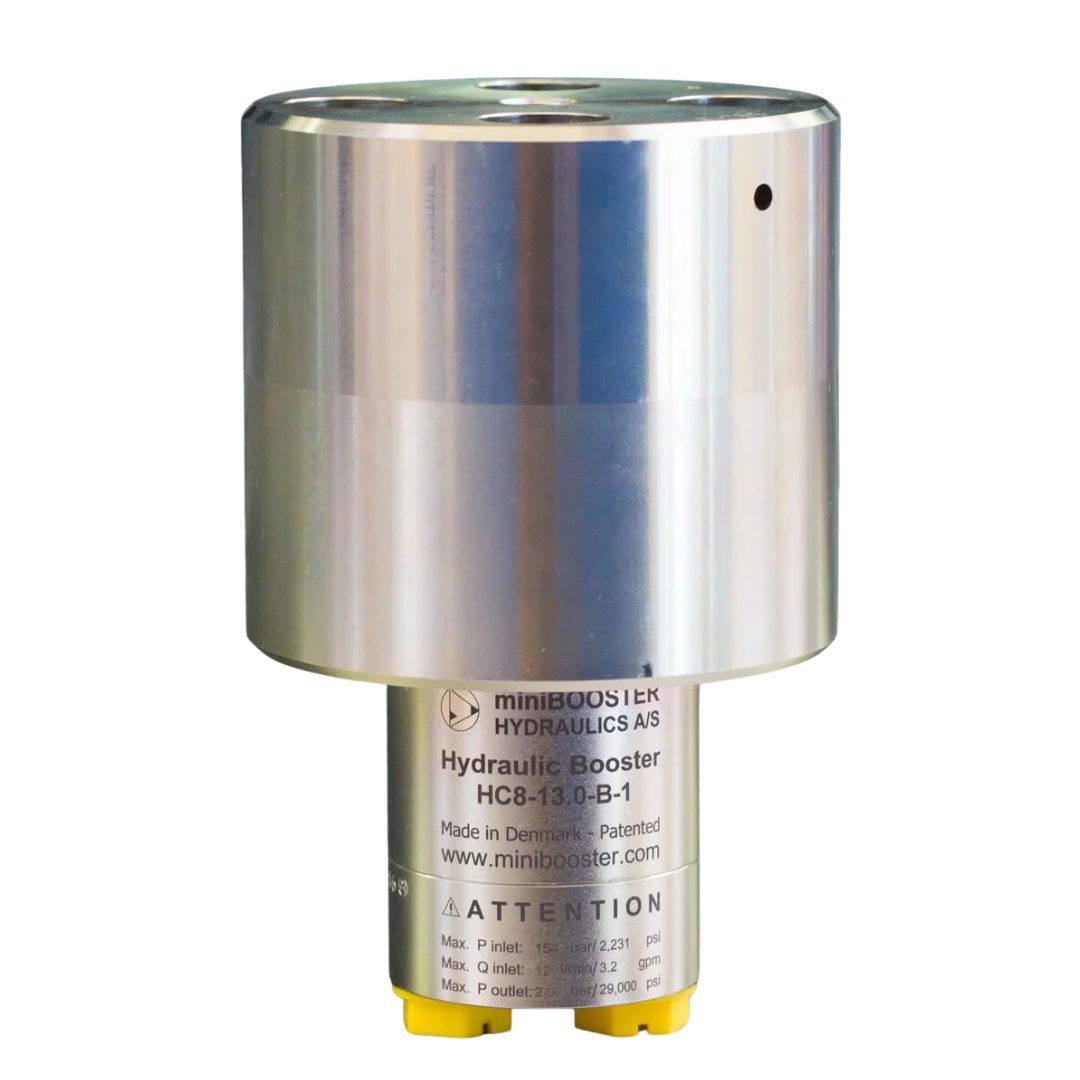

The HC8 is developed for applications where intensified pressure up to 2,000 bar are required. Operating like the HC2, the HC8 is a unique, self-contained device which boosts inlet pressure up to a 20:1 factor without the use of an external power source.

In addition, the HC8 maintains high pressure by automatically compensating for consumption of oil on the high-pressure side. High pressure is directly proportional to inlet pressure. The HC8 is a compact unit weighing 4.5 kg. The HC8 works at inlet pressure from 20 to 207 bar. Higher pressure is available on special request.
