HC7

The HC78 is a very compact low leakage unit capable of delivering pressure up to 1,380 bar weighing only 5.3 kg. It is ideal for use in applications that require minimal standby oil consumption, such as control systems in the oil industry driven by solar panels, where energy consumption must be kept at a minimum.

The HC78 incorporates a 2/2 directional valve controlled with a pilot signal from the high-pressure side, simply cutting off pump supply when the high pressure is obtained and activates again when high pressure drops.

The HC78 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With a selection of different high-pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port.

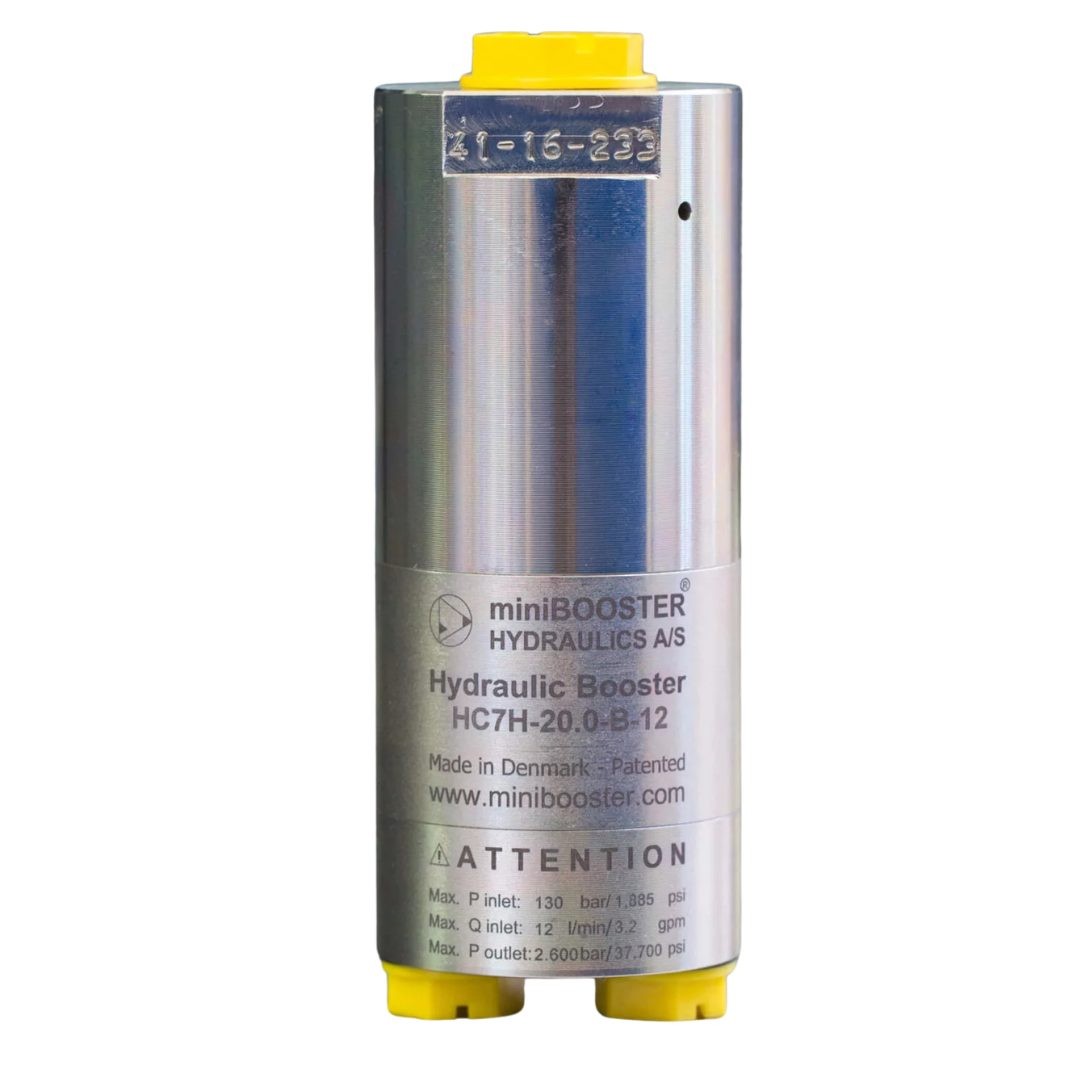

The HC7H is a very compact high-pressure unit capable of delivering pressure up to 2,600 bar weighing only 1.5 kg. It is ideal for use in portable applications like on power packs.

The HC7H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port.

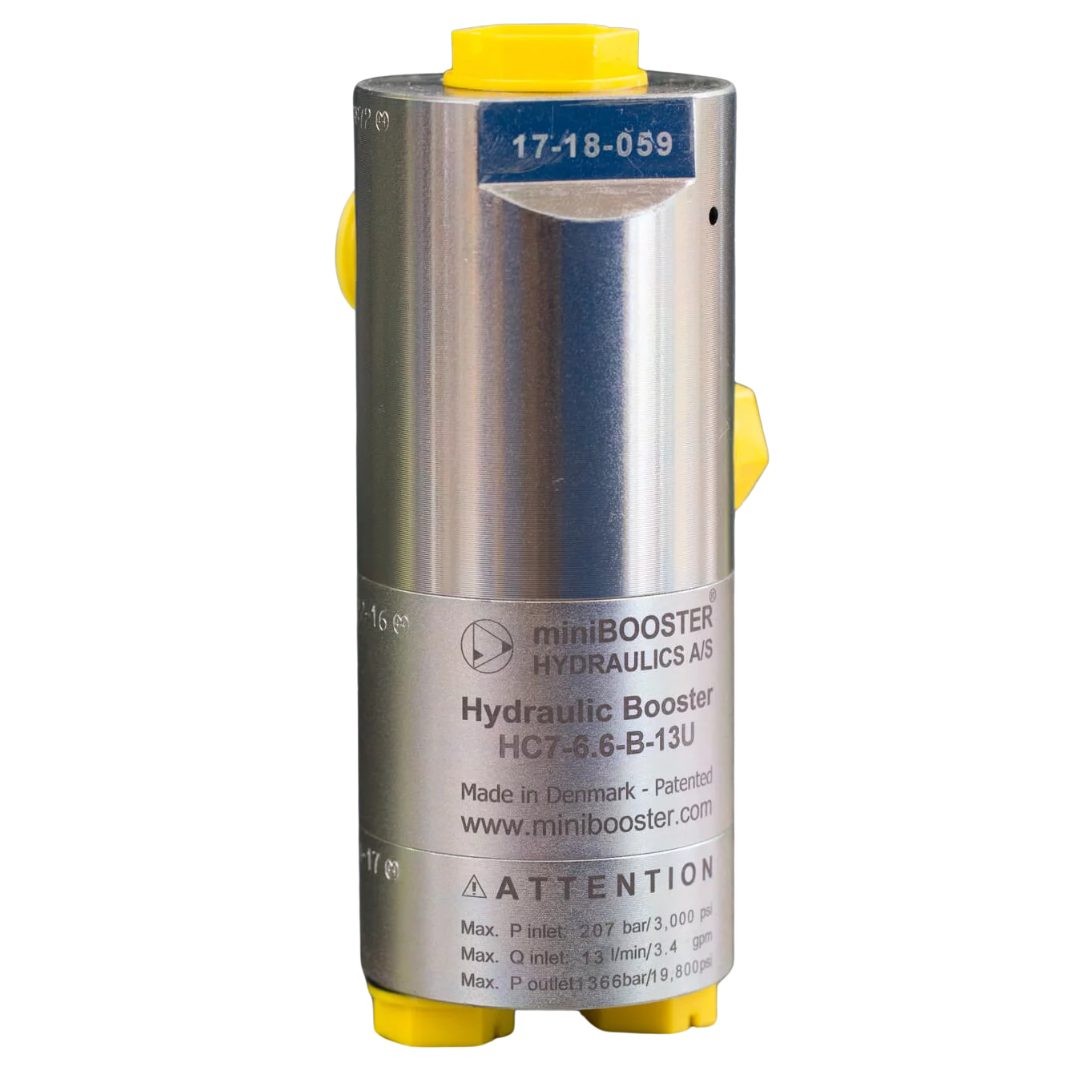

The HC7-U is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar, weighing only 1.5 kg. It is ideal for use in portable applications like on power packs. Oil from the cylinder will be released directly via T-port to the tank, with a minimum back pressure.

The HC7-U raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high-pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.

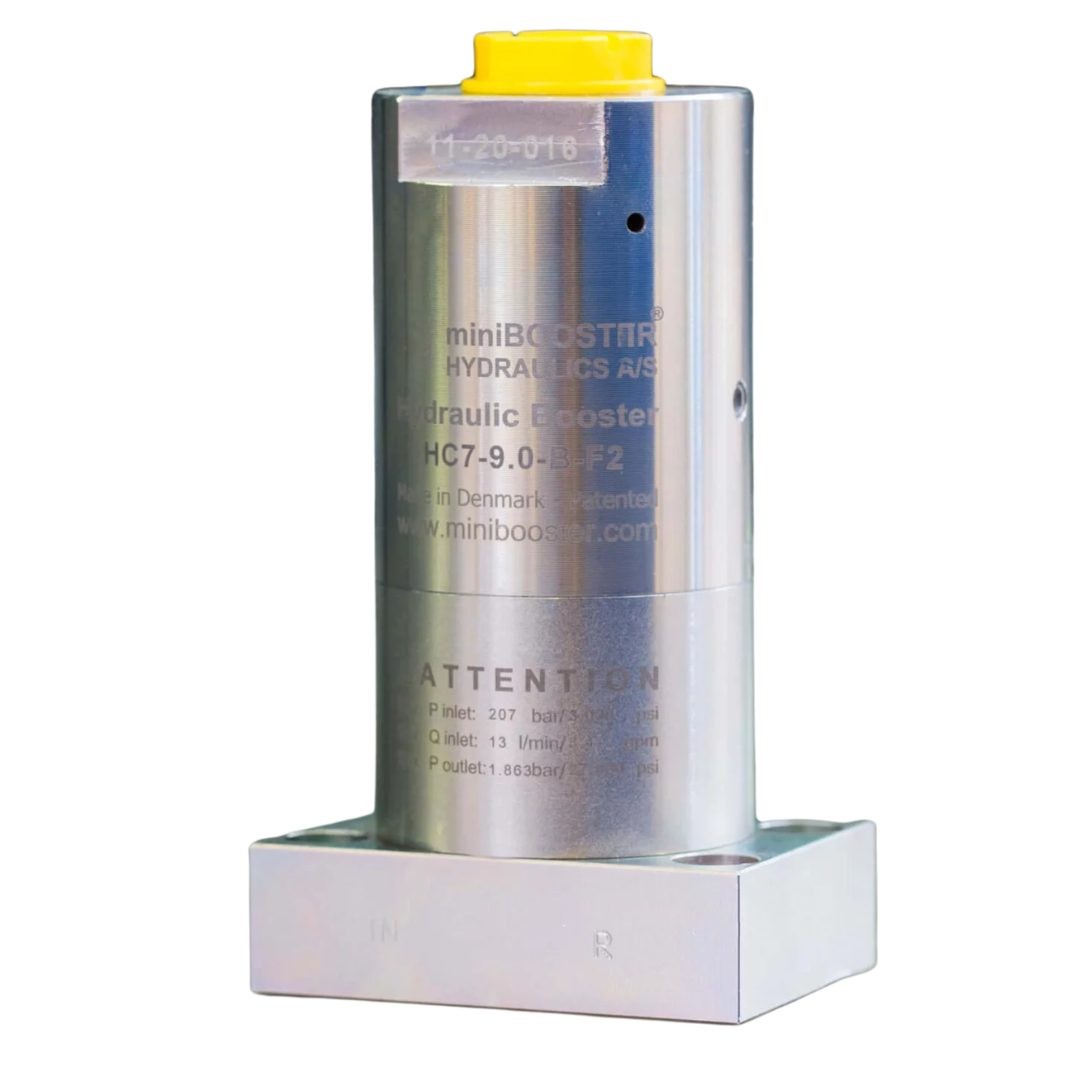

The HC7-F is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar weighing only 1.7 kg. The HC7-F is a variant of the HC7 for flange mounting on the low pressure side. The entire pattern is a miniBOOSTER design. It is ideal for use in portable applications like on power packs.

The HC7-F raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.

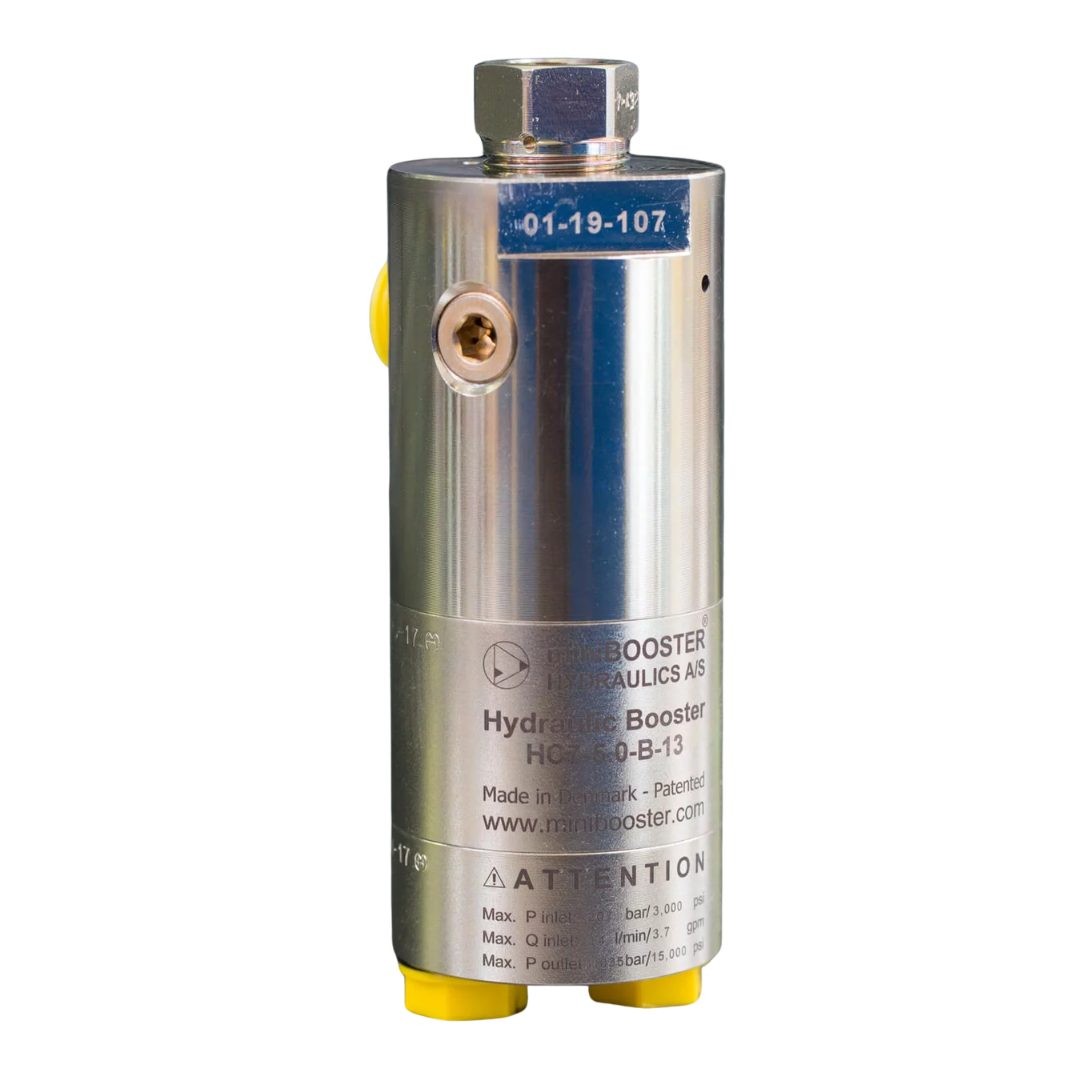

The HC7 is a very compact high-pressure unit capable of delivering pressure up to 2,000 bar weighing only 1.5 kg. It is ideal for use in portable applications like on power packs.

The HC7 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. With the choice of different high- pressure adapters, a variety of threads can be obtained from the M22x1.5 thread in the HP port. Higher pressure is available on request.
