Hydac Electronic Temperature Sensor ETS 1700

The HYDAC ETS 1700 is an advanced electronic temperature switch designed for precise monitoring and control in hydraulic and tank systems. Featuring a 4-character display, 4 independently adjustable relay outputs, and selectable analogue output (4–20 mA or 0–10 V), it offers flexible integration and user-friendly operation via key programming.

  • Measuring range1) 0 .. +100 °C, (+32 .. 212 °F)
  • Supply voltage: 22 .. 32 V DC
  • Standard

Depending on the temperature range of the connected temperature sensor, the indication range of the ETS 1700 may be reduced

Print page

Description

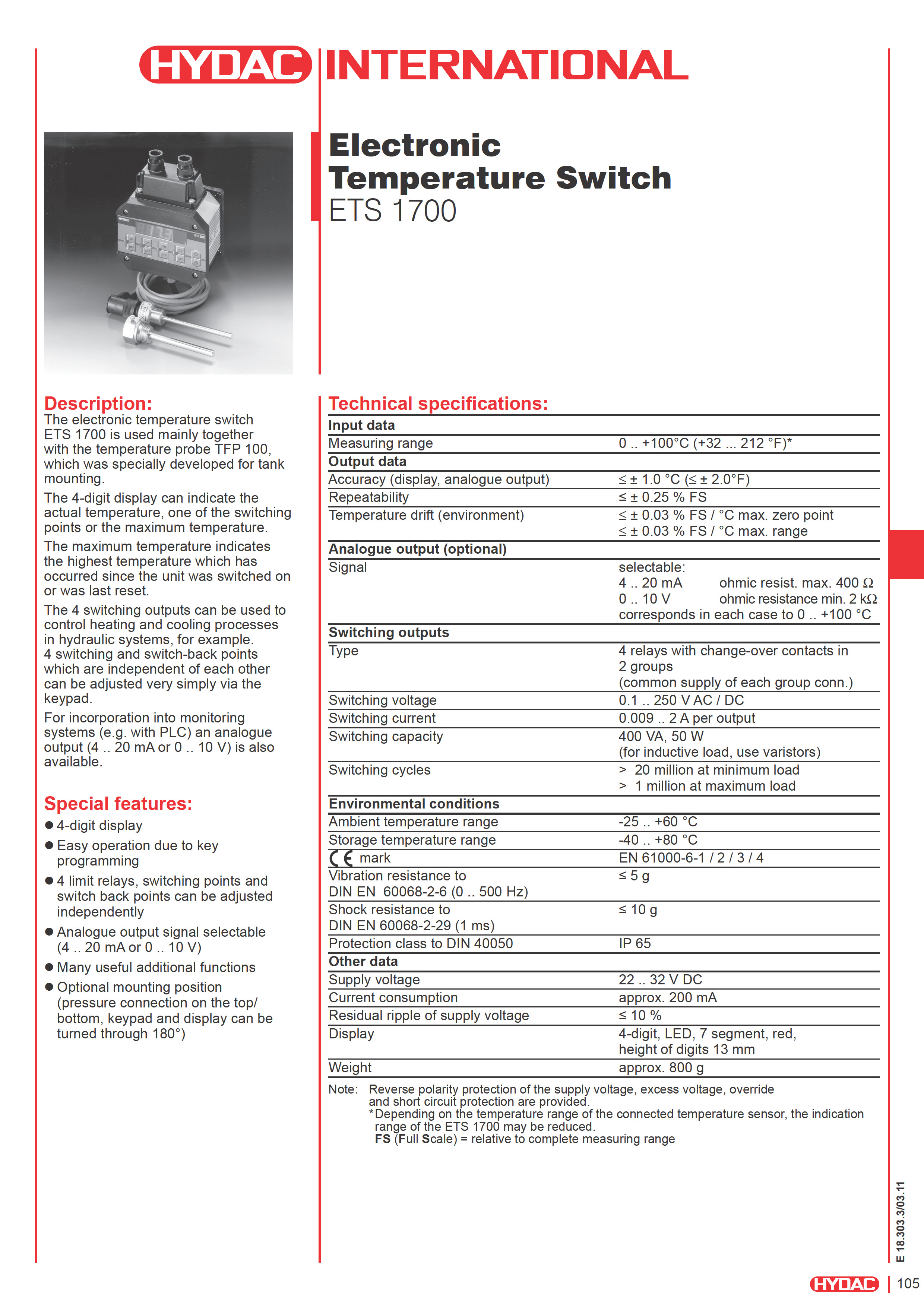

Downloads
Hydac Electronic Temperature Sensor ETS 1700

HYDAC Electronic Temperature Sensor ETS 1700

  • Measuring range1) 0 .. +100 °C, (+32 .. 212 °F)
  • Supply voltage: 22 .. 32 V DC
  • Standard

Depending on the temperature range of the connected temperature sensor, the indication range of the ETS 1700 may be reduced

Features:

  • 4-character digital display
  • Simple handling through key programming
  • 4 limit value relays, switching points and reset points can be adjusted independently of one another
  • Analogue output signal can be selected (4 ... 20 mA or 0 ... 10V)
  • Many helpful additional functions
  • Installation position can be selected (sensor connection below/above, keyboard and display can be rotated by 180°)

General Function:

The ETS 1700 electronic temperature switch is used primarily together with the TFP 100 temperature sensor which was specially developed for tank installation. The 4-character display can depict the current temperature, one of the switching points or the maximum temperature value.
The maximum temperature value shows the highest temperature to occur since the device was switched on or since the last reset, respectively. Heating and cooling processes in hydraulic plants can, for example, be controlled using the 4 switching outputs. Four switching points and reset points independent of one another can be set very easily by means of a foil keyboard. An analogue output (4 ... 20 mA or 0 ... 10V) is available for integration in monitoring systems (e.g. with SPS)
