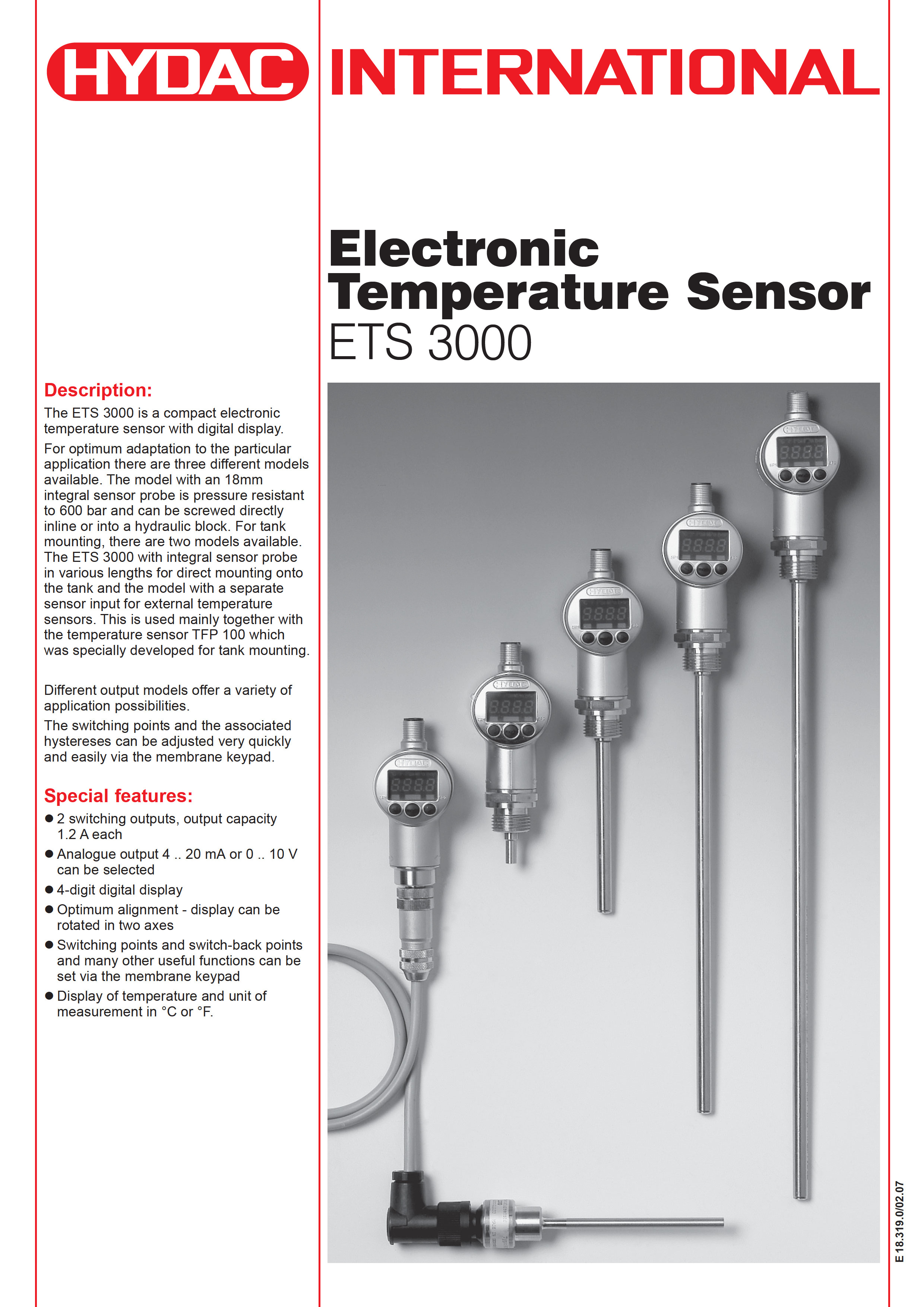

Hydac Electronic Temperature Sensor ETS 3000
The HYDAC ETS 3000 is a compact electronic temperature sensor with a digital display, designed for high-pressure applications up to 600 bar. It offers selectable analog outputs, dual switching outputs, and flexible mounting with a rotatable display for easy reading.
Key Features:
- Pressure resistance: 600 bar (18 mm) 50 bar (100, 250, 350 mm)
- Rotatable 4-digit display showing °C or °F
- Direct mounting into pipes or manifolds
Description
Downloads
HYDAC Electronic Temperature Sensor ETS 3000
- Pressure resistance: 600 bar (18 mm) 50 bar (100, 250, 350 mm)
Features:
- 2 switching outputs, output capacity 1.2 A each
- Analogue output 4 .. 20 mA or 0 .. 10 Vcan be selected
- Can be mounted directly into pipes or manifolds
- 4-digit digital display
- Optimum alignment - display can be rotated in two axes
- Switching points and switch-back points and many other useful functions can be set via the membrane keypad
- Display of temperature and unit of measurement in °C or °F
General Function:
The ETS 3000 is a compact electronic temperature sensor with digital display.
For optimum adaptation to the particular application there are three different models available
