Carr Lane Screw Rest Buttons
of
Carr Lane Screw Rest Buttons

Carr Lane Screw Rest Buttons

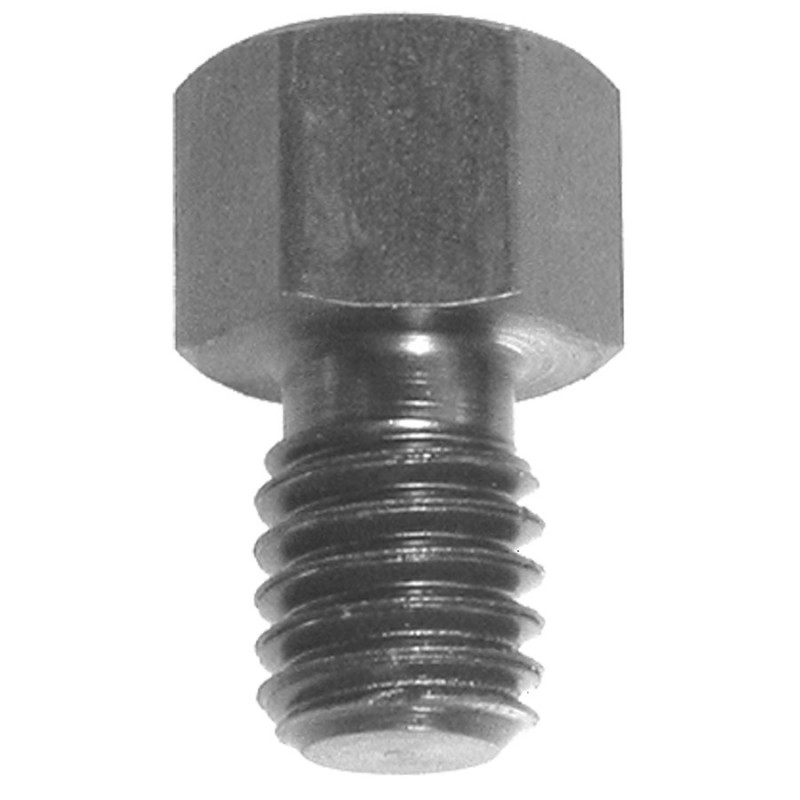

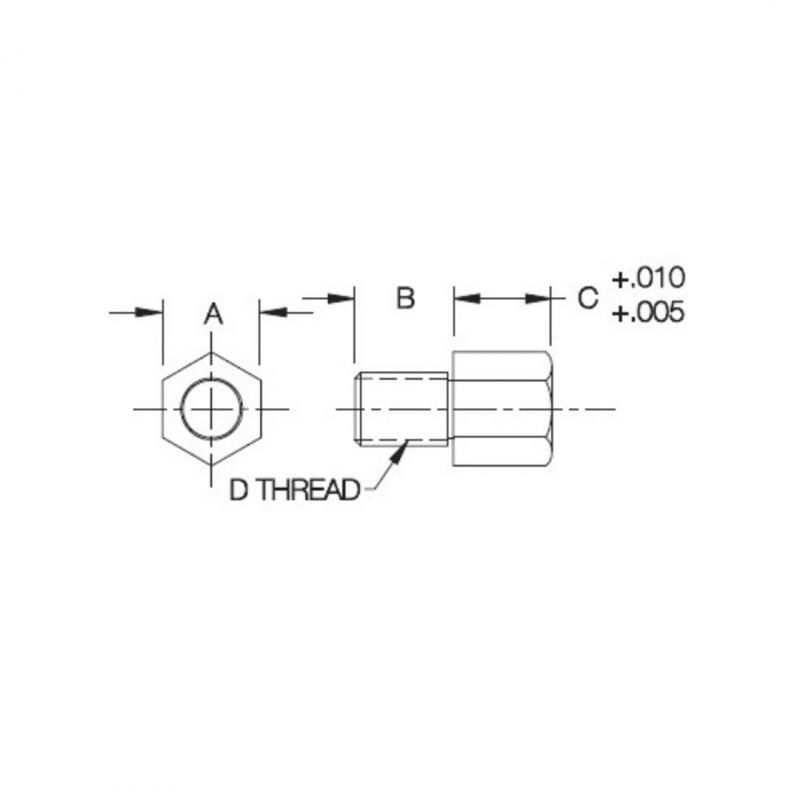

The threaded rest button features a hex head and is precision-machined to be .005 to .010" over the nominal height, allowing for finish grinding after installation. Screw rest buttons are ideal for use as supports and jig feet. They are available in thread sizes ranging from 1/4-20 to 1/2-13 (M6 to M12 in metric), with various height options to choose from.

  • Thread: 1/4-20 - 1/2-13 or M6 - M12
  • Metric and Imperial sizes
  • Steel Black Oxide Finish

Print page

Metric
Imperial
Downloads
Description
Part Number Material Number Metric or Imperial Thread Head Length Price Add to Parts List
CLM-1225-SRB CLM-1225-SRB Metric M12 25mm £10.82
£12.98 Inc. VAT
CLM-625-SRB CLM-625-SRB Metric M6 25mm £8.06
£9.67 Inc. VAT
CLM-1205-SRB CLM-1205-SRB Metric M12 5mm £9.30
£11.16 Inc. VAT
CLM-605-SRB CLM-605-SRB Metric M6 5mm £6.86
£8.23 Inc. VAT
CLM-1010-SRB CLM-1010-SRB Metric M10 10mm £7.50
£9.00 Inc. VAT
CLM-1215-SRB CLM-1215-SRB Metric M12 15mm £9.95
£11.94 Inc. VAT
CLM-615-SRB CLM-615-SRB Metric M6 15mm £7.34
£8.81 Inc. VAT
CLM-1020-SRB CLM-1020-SRB Metric M10 20mm £8.48
£10.18 Inc. VAT
CLM-620-SRB CLM-620-SRB Metric M6 20mm £7.54
£9.05 Inc. VAT
CLM-1025-SRB CLM-1025-SRB Metric M10 25mm £8.77
£10.52 Inc. VAT
CLM-1005-SRB CLM-1005-SRB Metric M10 5mm £7.54
£9.05 Inc. VAT
CLM-1210-SRB CLM-1210-SRB Metric M12 10mm £9.43
£11.32 Inc. VAT
CLM-610-SRB CLM-610-SRB Metric M6 10mm £7.18
£8.62 Inc. VAT
CLM-1015-SRB CLM-1015-SRB Metric M10 15mm £8.20
£9.84 Inc. VAT
CLM-1220-SRB CLM-1220-SRB Metric M12 20mm £10.51
£12.61 Inc. VAT
Part Number Material Number Metric or Imperial Thread Head Length Price Add to Parts List
CL-7-SRB CL-7-SRB Imperial 3/8 3/8-16 £5.88
£7.06 Inc. VAT
CL-13-SRB CL-13-SRB Imperial 1/2 1/2-13 £6.16
£7.39 Inc. VAT
CL-3-SRB CL-3-SRB Imperial 1/2 1/4-20 £5.39
£6.47 Inc. VAT
CL-10-SRB CL-10-SRB Imperial 1 3/8-16 £6.66
£7.99 Inc. VAT
CL-16-SRB CL-16-SRB Imperial 1 1/2-13 £7.15
£8.58 Inc. VAT
CL-6-SRB CL-6-SRB Imperial 1/4 3/8-16 £5.59
£6.71 Inc. VAT
CL-14-SRB CL-14-SRB Imperial 5/8 1/2-13 £6.80
£8.16 Inc. VAT
CL-4-SRB CL-4-SRB Imperial 3/4 1/4-20 £5.39
£6.47 Inc. VAT
CL-12-SRB CL-12-SRB Imperial 3/8 1/2-13 £6.16
£7.39 Inc. VAT
CL-2-SRB CL-2-SRB Imperial 3/8 1/4-20 £5.30
£6.36 Inc. VAT
CL-8-SRB CL-8-SRB Imperial 1/2 3/8-16 £6.01
£7.21 Inc. VAT
CL-15-SRB CL-15-SRB Imperial 3/4 1/2-13 £6.94
£8.33 Inc. VAT
CL-5-SRB CL-5-SRB Imperial 1 1/4-20 £5.39
£6.47 Inc. VAT
CL-11-SRB CL-11-SRB Imperial 1/4 1/2-13 £6.16
£7.39 Inc. VAT
CL-1-SRB CL-1-SRB Imperial 1/4 1/4-20 £5.30
£6.36 Inc. VAT
CL-9-SRB CL-9-SRB Imperial 3/4 3/8-16 £6.83
£8.20 Inc. VAT

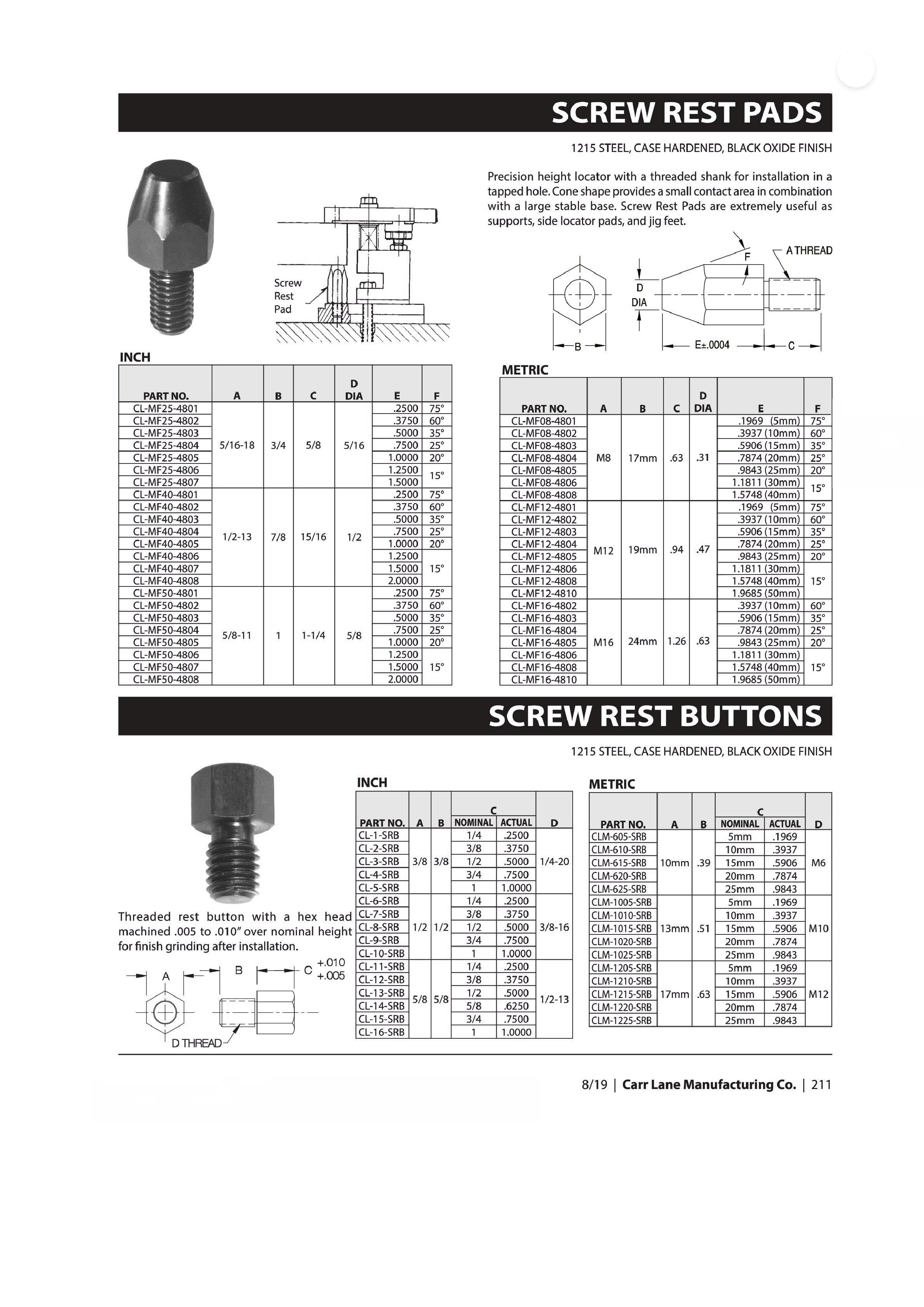

Carr Lane Screw Rest Buttons datasheet

Carr Lane Screw Rest Buttons

The threaded rest button features a hex head and is precision-machined to be .005 to .010" over the nominal height, allowing for finish grinding after installation. Screw rest buttons are ideal for use as supports and jig feet. They are available in thread sizes ranging from 1/4-20 to 1/2-13 (M6 to M12 in metric), with various height options to choose from.

Options:

  • Thread: 1/4-20 - 1/2-13 or M6 - M12
  • Metric and Imperial sizes
  • Steel Black Oxide Finish

Quantity Unit discount You Save
