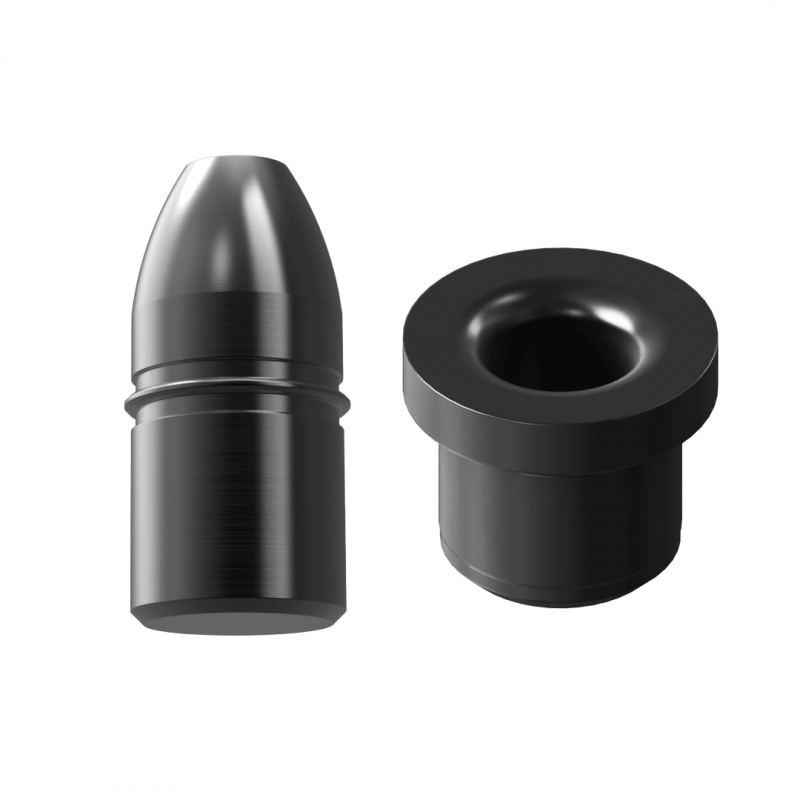

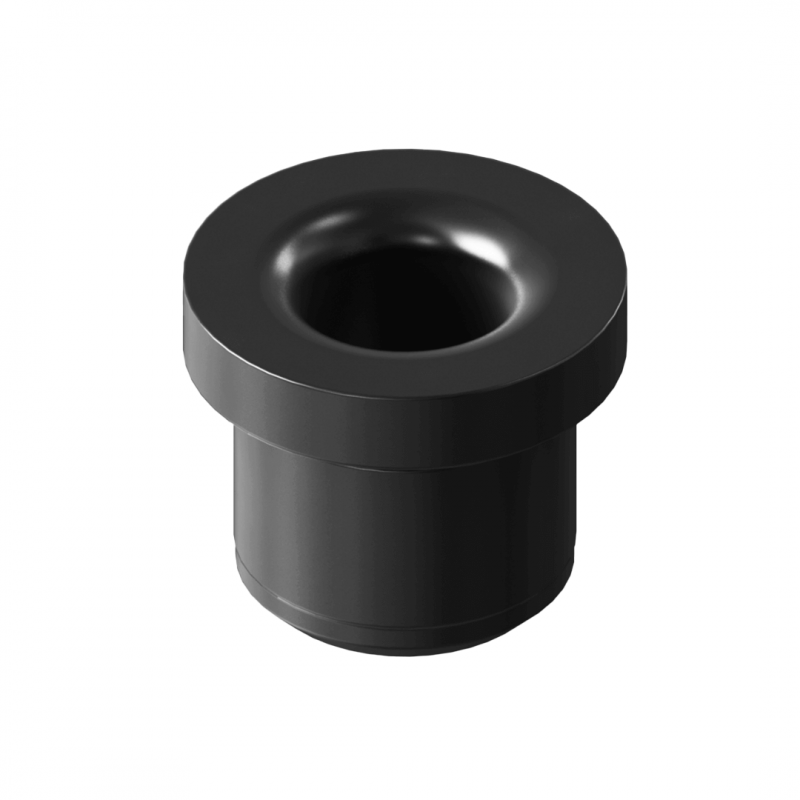

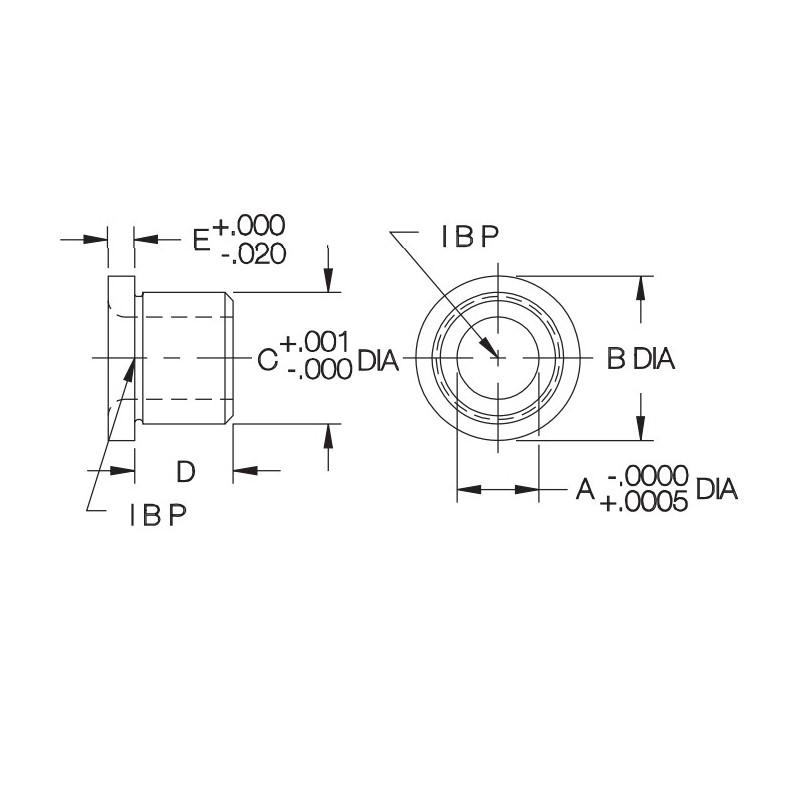

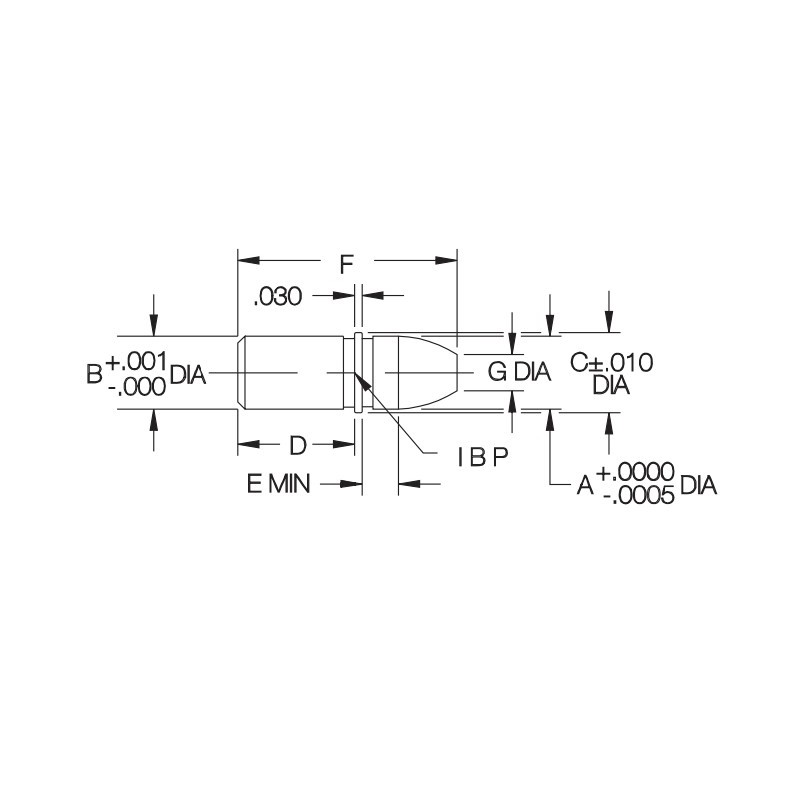

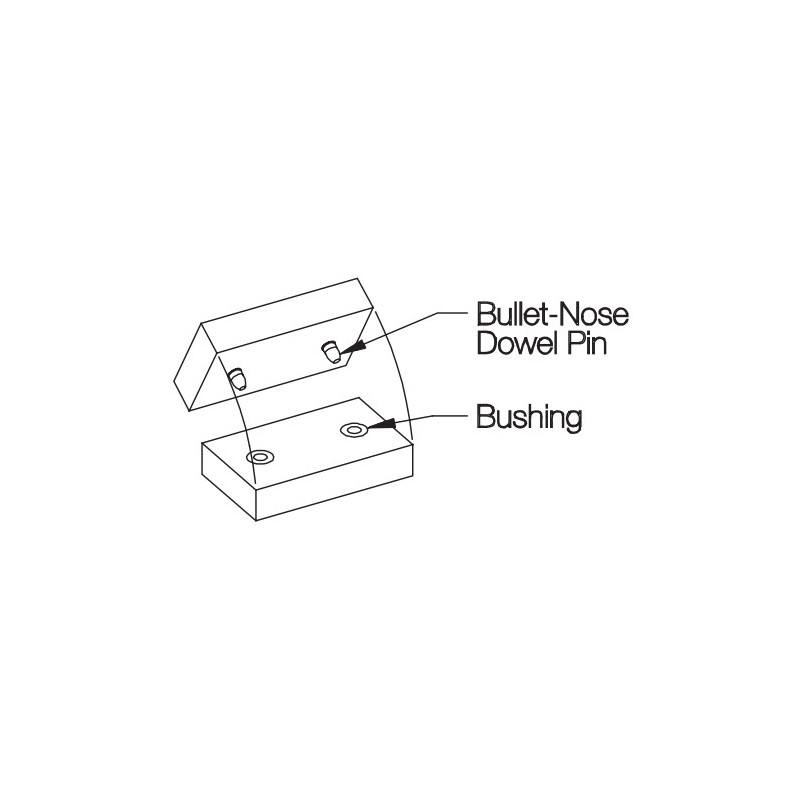

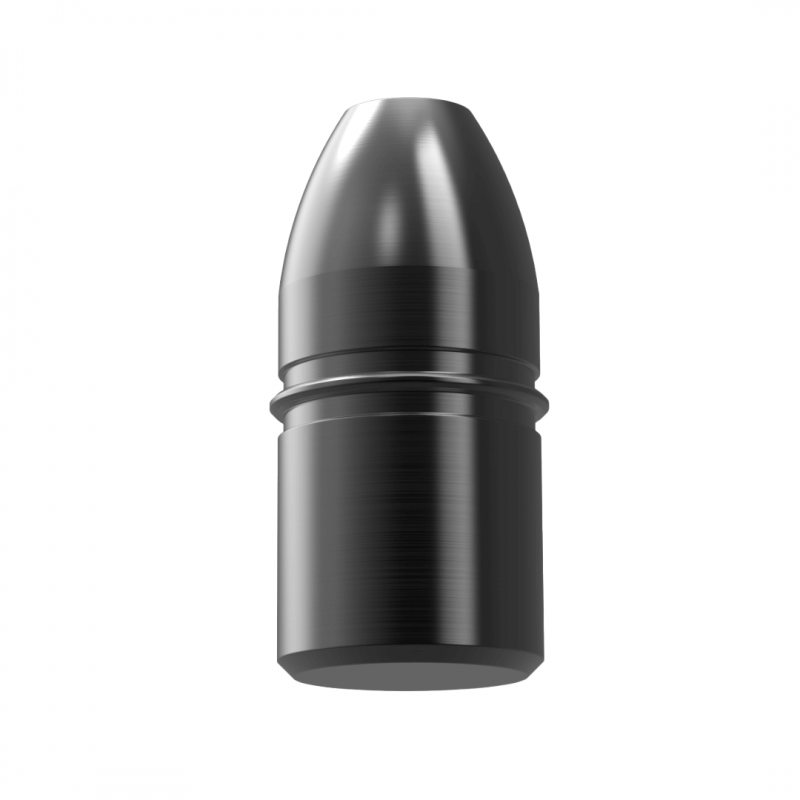

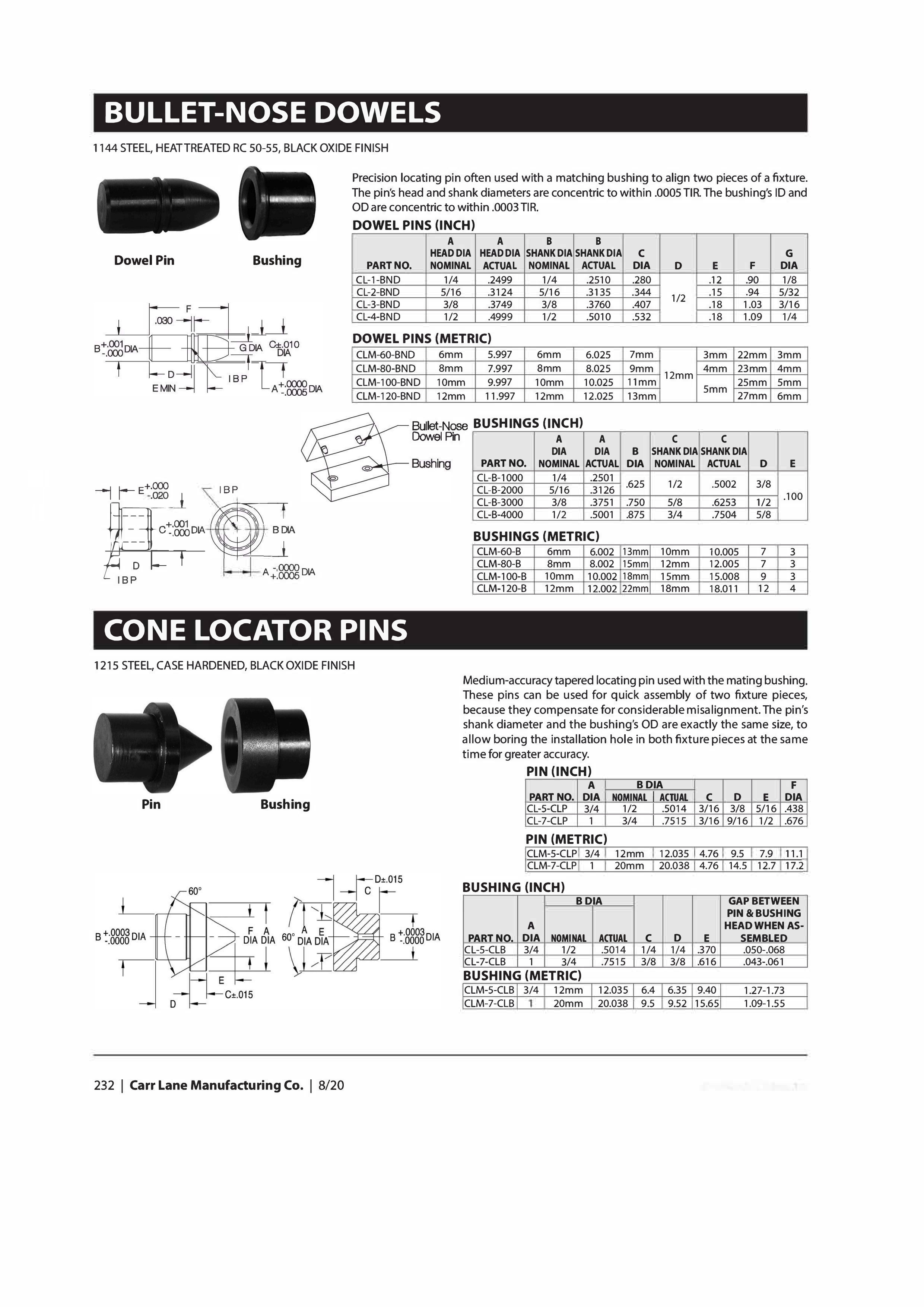

A precision locating pin is commonly used with a matching bushing to align two parts of a fixture. The pin’s head and shank diameters are concentric within .0005" TIR. Available in pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric). A precision bushing is used with a Bullet-Nose Dowel to align two components of a fixture. The bushing’s ID and OD are concentric within .0003" TIR. Available for pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric).
| Part Number | Material Number | Dowel or Bushing | Metric or Imperial | Head Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-100-B | Bushing | Metric | 10mm | £12.77 £15.32 Inc. VAT |
|
|
| CLM-120-B | Bushing | Metric | 12mm | £13.90 £16.68 Inc. VAT |
|
|
| CL-B-1000 | Bushing | Imperial | 1/4 | £9.12 £10.94 Inc. VAT |
|
|
| CL-B-2000 | Bushing | Imperial | 5/16 | £9.12 £10.94 Inc. VAT |
|
|
| CL-B-3000 | Bushing | Imperial | 3/8 | £10.66 £12.79 Inc. VAT |
|
|
| CLM-60-B | Bushing | Metric | 6mm | £10.96 £13.15 Inc. VAT |
|
|
| CL-B-4000 | Bushing | Imperial | 1/2 | £11.62 £13.94 Inc. VAT |
|
|
| CLM-80-B | Bushing | Metric | 8mm | £11.45 £13.74 Inc. VAT |
|
|
| CL-2-BND | Dowel | Imperial | 5/16 | £5.58 £6.70 Inc. VAT |
|
|
| CL-3-BND | Dowel | Imperial | 3/8 | £6.01 £7.21 Inc. VAT |
|
|
| CL-4-BND | Dowel | Imperial | 1/2 | £6.08 £7.30 Inc. VAT |
|
|
| CLM-60-BND | Dowel | Metric | 6mm | £5.70 £6.84 Inc. VAT |
|
|
| CLM-80-BND | Dowel | Metric | 8mm | £6.00 £7.20 Inc. VAT |
|
|
| CLM-100-BND | Dowel | Metric | 10mm | £6.60 £7.92 Inc. VAT |
|
|
| CLM-120-BND | Dowel | Metric | 12mm | £6.76 £8.11 Inc. VAT |
|
|
| CL-1-BND | Dowel | Imperial | 1/4 | £5.42 £6.50 Inc. VAT |
|
A precision locating pin is commonly used with a matching bushing to align two parts of a fixture. The pin’s head and shank diameters are concentric within .0005" TIR. Available in pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric). A precision bushing is used with a Bullet-Nose Dowel to align two components of a fixture. The bushing’s ID and OD are concentric within .0003" TIR. Available for pin diameters of 1/4", 5/16", 3/8", and 1/2" (6mm, 8mm, 10mm, and 12mm in metric).
| Quantity | Unit discount | You Save |
|---|
Thinwall Key Inserts have a smaller OD thread size than standard heavy-duty inserts, ideal for tight spaces where less pull-out strength is acceptable
The threaded rest button features a hex head and is precision-machined to be .005 to .010" over the nominal height, allowing for finish grinding after installation. Screw rest buttons are ideal for use as supports and jig feet. They are available in thread sizes ranging from 1/4-20 to 1/2-13 (M6 to M12 in metric), with various height options to choose from.
L Pins and T Pins have precision-ground pin diameter to ensure accurate hole alignment. L Pins and T Pins are removable locating pins with a durable construction, each featuring a handle end with a small hole for attaching an optional cable. These pins come in a variety of diameters and lengths. Jig Pins, similar to L and T Pins, incorporate an integral shoulder to keep the handle raised. Also available from the Carr Lane range, locking L Pins and T Pins with a lock screw that securely holds bushings in place. These pins are available in both imperial and metric sizes.
Adjustable-toque thumb screws exert positive and repeatable force. When turned clockwise, the knob disengages and rotates freely once the desired torque is reached. Turning it anti-clockwise locks the knob for secure retraction. Adjustable-Torque Thumb Screws come with a swivel foot option and a knurled check nut. These screws are available in body-thread sizes ranging from #10-32 to 5/8-11 (M5 to M16 in metric), with various length options.
Slotted Locator Bushings are compatible with various alignment and locating pins to align two holes without binding. These precision bushings feature a tight tolerance in one direction and full relief in the perpendicular direction. . Available for pin diameters ranging from 3/16" to 1/2". An optional version in hardened 440C stainless steel is also available. These are available in knurled and press fit type.
Ball plungers are essential elements in various mechanical and industrial applications, valued for their straightforward design and efficiency in positioning, securing, and holding parts. They come in a range of materials such as steel, stainless steel, and Delrin®, offering versatility to meet diverse operational needs. Ball plungers deliver an ideal balance of reliability, precision, and durability for your specific requirements.
Depending on extended screw length, these threaded alignment pins can be used for clamping and locating, or clamping only. The clamping bushing is made separate from the pin, and is required to be welded in place at the proper length to fit the application. These are available in thread sizes from #10-32 to 1/2-13 (M6 to M12 in metric)
Carr Lanes shoulder screws are a type of fastener that are manufactured with a cylindrical body and a shoulder between the threaded portion and the head of the screw. The shoulder is larger in diameter in comparison to the threaded area and is a bearing surface or precise reference point. This item is available in both metric and imperial sizing and in thread diameters from 1/4" to 3/4" (8 to 20mm). These shoulder screws are best used for critical applications where precision and performance are vital.
