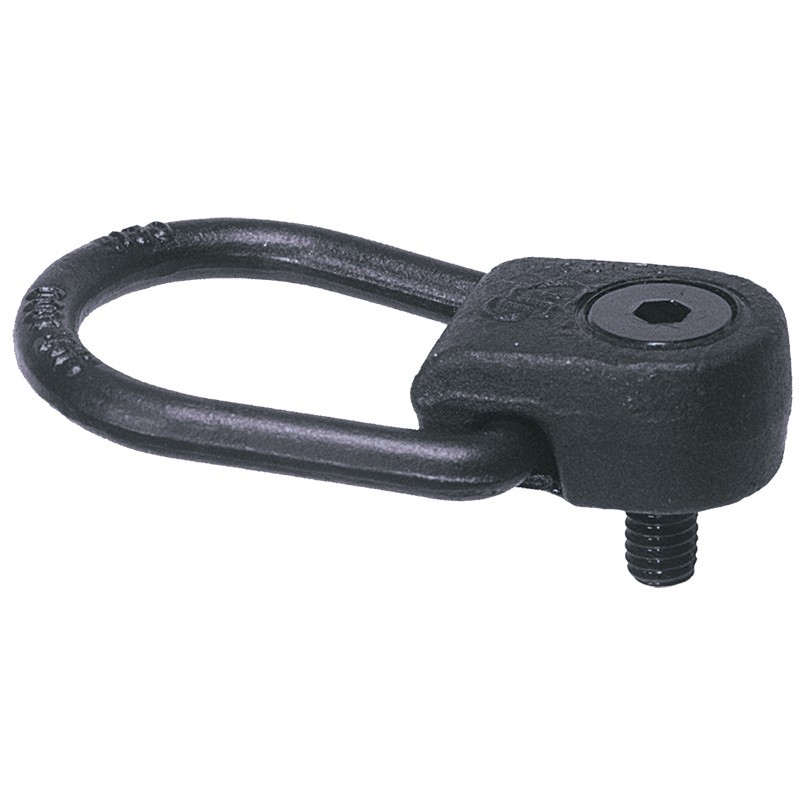

Carr Lane Safety Hoist Rings
The forged base rotates 360°, while the solid-loop forged ring pivots 180°, enabling lifting from any direction. Designed with a safety factor of 5:1, it comes with a high-strength shoulder screw. Available in inch or metric threads, with load capacities up to 2,500 lbs.
- Load Rating: 1000 - 2500 (lbs)
- Installation Torque: 7-10 - 42-50
- Safety factor = 5:1
Products
Downloads
Description
| Part Number | Material Number | Metric or Imperial | External Diameter | Height | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-10-SHR | Metric | 1-1/4 | 7/8 | £82.39 £98.87 Inc. VAT |
|
|
| CL-10-SHR | Imperial | 1-1/4 | 7/8 | £72.47 £86.96 Inc. VAT |
|
|
| CL-25-SHR | Imperial | 1-3/4 | 1-5/16 | £123.40 £148.08 Inc. VAT |
|
Carr Lane Safety Hoist Rings
- Load Rating: 1000 - 2500 (lbs)
- Installation Torque: 7-10 - 42-50
- Safety factor = 5:1
Forged base rotates 360 degrees while the solid-loop forged ring pivots 180 degrees, to allow lifting from any direction. High-strength shoulder screw furnished. Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely.
