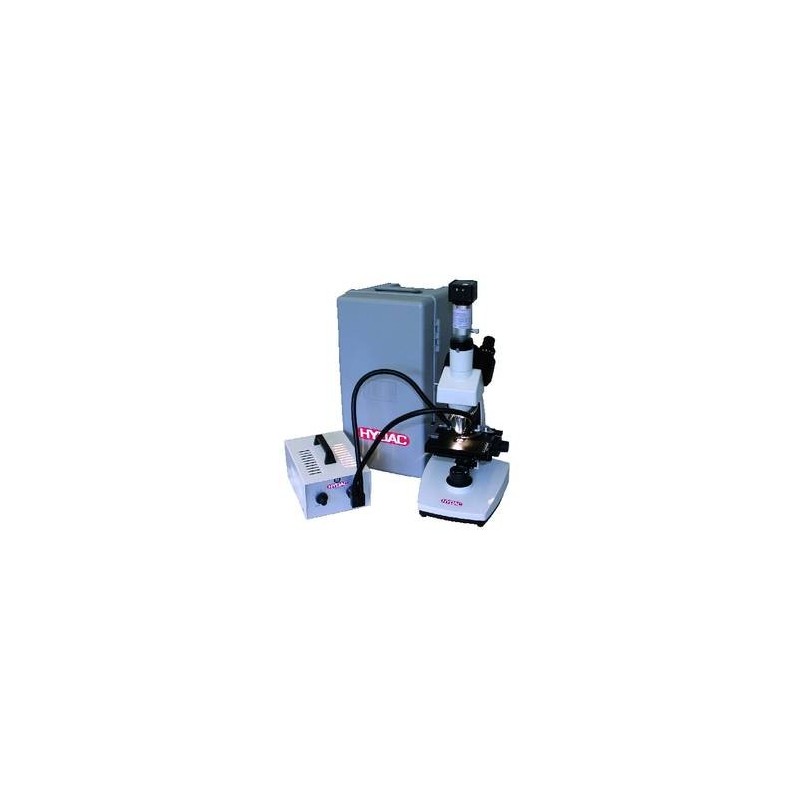

Hydac measuring microscope MM-KKE-M-C-L  is designed mainly to measure particles on filter membranes of oil samples.

Description
Downloads

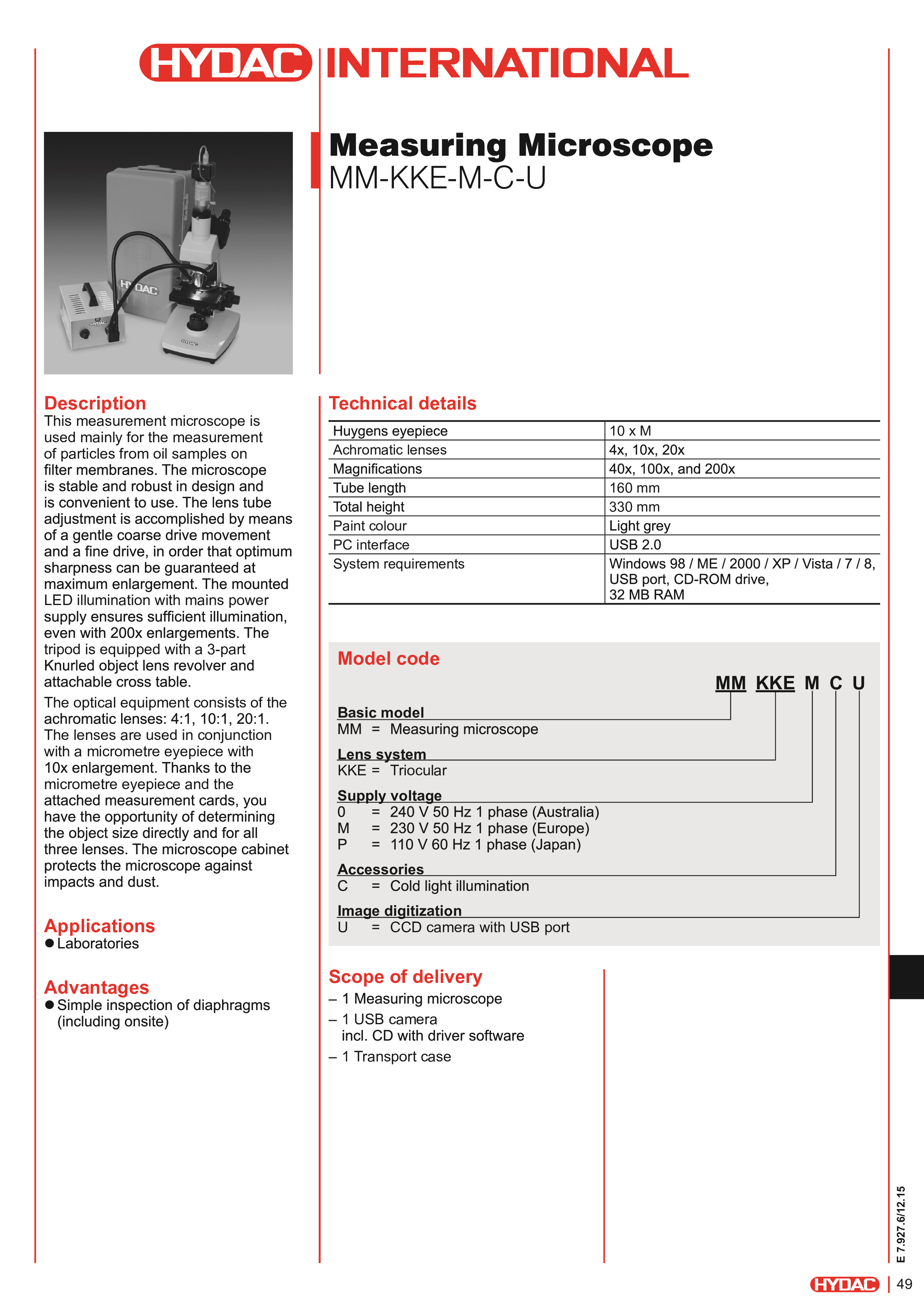

Hydac Measuring Microscope MM-KKE-M-C-U

  • Huygens eyepiece: 10 x M
  • Achromatic lenses: 4x, 10x, 20x
  • Magnifications: 40x, 100x, and 200x
  • Tube length: 160 mm
  • Total height: 330 mm

Applications:

  • Laboratories

Advantages:

  • Simple inspection of diaphragms (including onsite)

Items supplied:

  • 1 Measuring microscope
  • 1 USB camera incl. CD with driver software
  • 1 Transport case

General Function:

This measurement microscope is used mainly for the measurement of particles from oil samples on filter membranes. The microscope is stable and robust in design and is convenient to use. The lens tube adjustment is accomplished by means of a gentle coarse drive movement and a fine drive, in order that optimum sharpness can be guaranteed at maximum enlargement. The mounted LED illumination with mains power supply ensures sufficient illumination, even with 200x enlargements. The tripod is equipped with a 3-part Knurled object lens revolver and attachable cross table. The optical equipment consists of the achromatic lenses: 4:1, 10:1, 20:1. The lenses are used in conjunction with a micrometre eyepiece with 10x enlargement.
Thanks to the micrometre eyepiece and the attached measurement cards, you have the opportunity of determining the object size directly and for all three lenses. The microscope cabinet protects the microscope against impacts and dust.
