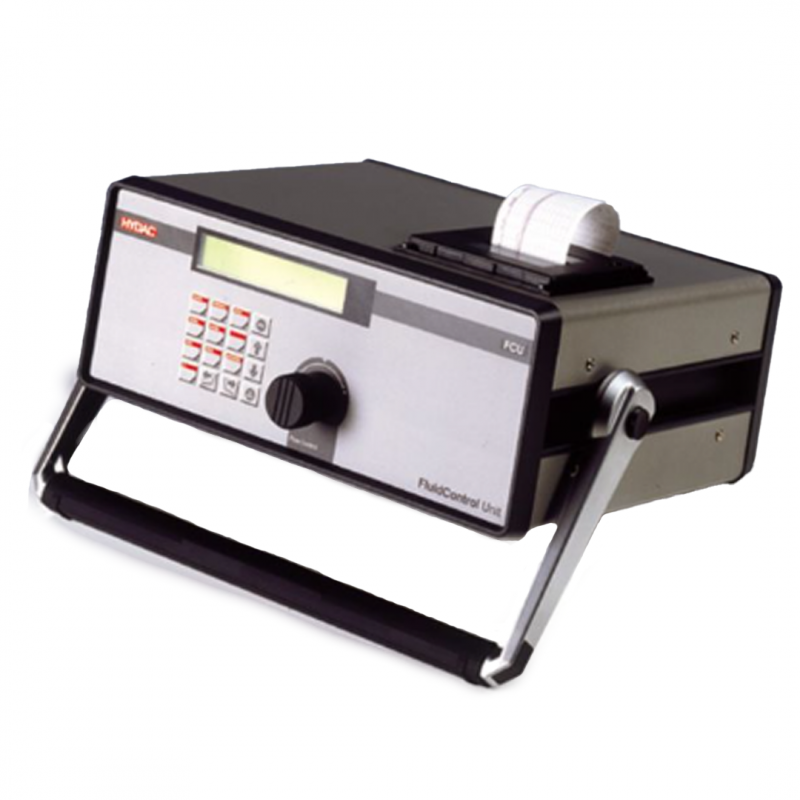

Hydac Fluid Control Units FCU 8000 Series

The HYDAC FCU 8000 Series Fluid Control Unit is a portable laser particle counter designed for accurate contamination monitoring in hydraulic and lubrication systems. Ideal for field use, laboratories, and service centers, it offers high-precision measurement and data evaluation with easy handling and comprehensive connectivity.

Key Features:

  • Wide viscosity range compatibility: 5–800 mm²/s with ISO, SAE, and NAS cleanliness standards
  • Integrated printer and RS232 interface for on-site data output and storage
  • Versatile use for field service, lab analysis, and oil sample investigations

Description

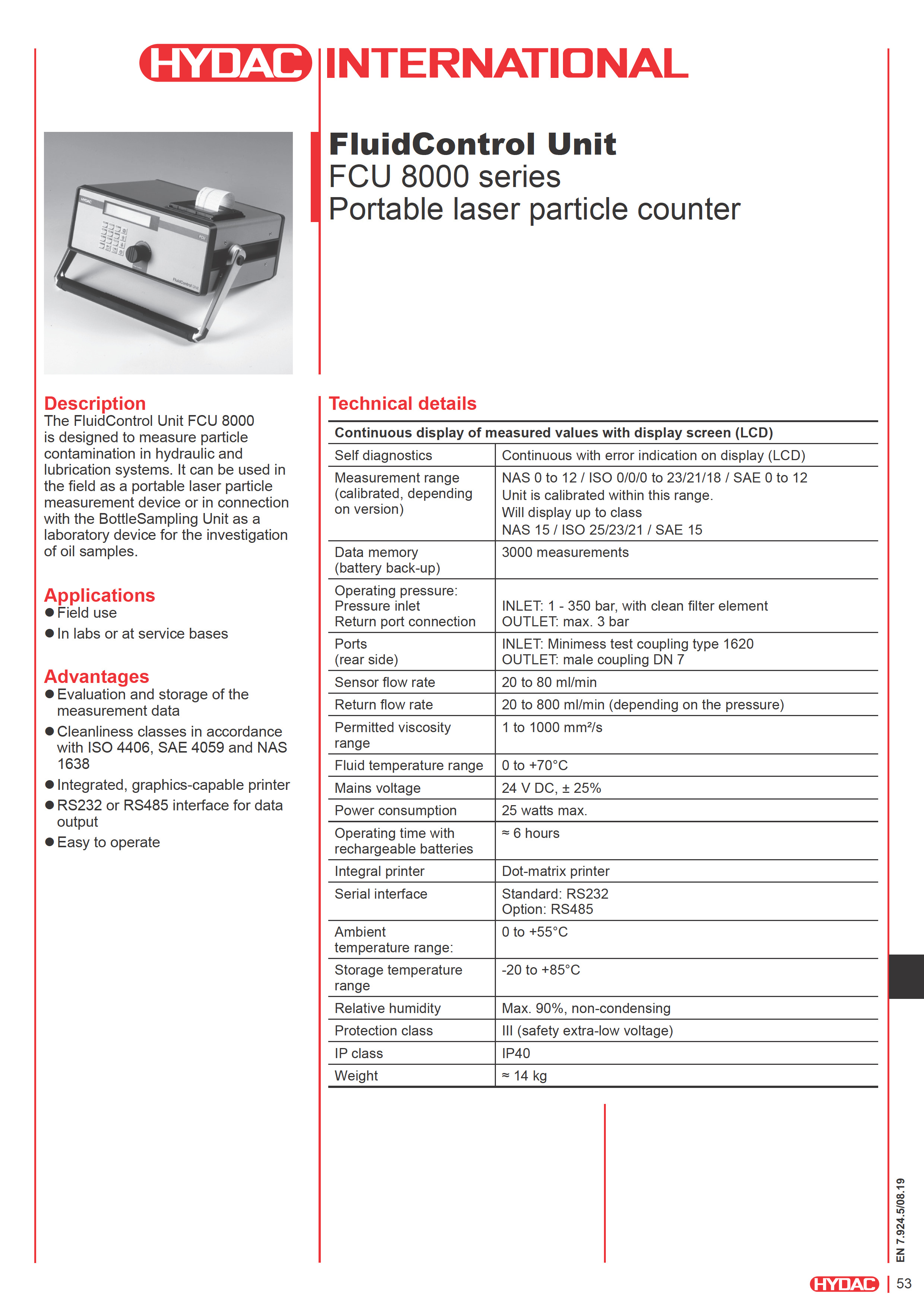

Downloads

HYDAC Fluid Control Units FCU 8000 Series

  • Permissible viscosity range: 5 ... 800 mm²/s
  • Cleanliness classes in accordance with ISO and SAE and/or NAS:
    Measurement range calibrated: NAS 0 ... 12 / ISO 0/0/0 ... 23/21/18 / SAE 0 ... 12
    Measurement range display: up to NAS 15 / ISO 25/23/21 / SAE 15
  • Evaluation and storage of the measurement data
  • Cleanliness classes in accordance with ISO 4406, SAE 4059 and NAS 1638
  • integrated, graphics-capable printer
  • RS232 interface for data output
  • Simple handling

Items supplied:

  • FCU
  • Power supply adapter
  • High pressure inlet hose DN 2 (2m long)
  • Low pressure outlet hose DN 7 (2m long)
  • Operating and maintenance instructions
  • Calibration certificate
  • PC software package CoCoS Light
  • Connection cable FCU/PC

Applications:

  • Field applications
  • In laboratories and at service centres

General Function:

The Hydac Fluid Control Unit FCU 8000 is used as a portable service unit for the measurement of solid particle contamination in hydraulic and lubrication systems. It can be used in the field as a portable laser particle measurement device or in connection with the BottleSampling Unit as a laboratory device for the investigation of oil samples. For field use, for use in laboratories and at service centres.
